Impact Testers Dealers in Delhi

This apparatus is used for measuring resistance of an aggregate to crushing. Made of mild steel, it comprises: Cylindrical Cell, 150 ± 0.5 mm ID x 130 to 140 mm height Plunger, 148±0.5 mm dia x 100 to 115 mm height Base Plate, 200 to 230 mm square x 6 mm thickness Tamping rod, 16 mm dia x 450 to 600 mm length Metal measure, 110 ± 0.5 mm ID x 180±0.5 mm height

This Apparatus is used to determine aggregate impact value of coarse aggregate. The hammer of the tester fall freely from 380 mm height on coarse aggregate for 15 times/15 sec.the crushed aggregate removed from the cup ,then sieved and weighed. The % ratio of the weight passing 2.36mm sieve and weight of oven dried sample is Aggregate Impact value. Salient Features Specifications : The instrument consists of a circular base with two vertical guides. The hammer of weight 13.75 ±0.25 kg can be raised to fall freely down the vertical guides. The height of fall can be adjusted through 380 ± 5mm. The hammer is provided with a locking arrangement. The hammer falls freely to the base and is removable for emptying. Supplied complete with metal measures 75mm dia x 50mm high (for specimen preperation) and tamping rod 230mm long x 10mm dia.

• Power: Without electricity
• Weight: 30kg
• Application: Hard plastic
• Size: 550*400*690mm
• Test Angle: 150 degree

If you are looking for a high quality and reliable aggregate impact tester, you are in the right place. We are highly reputed in the market for offering high quality and reliable products for our clients. The models we offer are used to determine the aggregate impact value of coarse aggregate. Our models also come with some salient features to meet the needs and demands of the new generation industries. When you look for an instrument or machine in our store, you will find the complete features and specifications from which you can choose the best based on your unique needs and demands. The aggregate impact tester we provide is manufactured as per IS: 2386 (IV) 9377. The hammer of this model freely falls from 380mm height on the coarse aggregate for fifteen times. The user can sieve and weigh the crushed aggregate from the cup. The aggregate impact value is the percentage ratio of the weight passing 2.36mm sieve and weight of the oven.

• Brand Name: Tinius Olsen
• Automation Grade: Automatic
• Weight : 110 kg
• Type: Impact Tester
• Capacity: J 2.82 ft.lb 2.08 in.lb 25
• Model Number: Model IT503

Charpy impact testing involves striking a standard notched specimen with a controlled weight pendulum swung from a set height. The standard Charpy-V notch specimen is 55mm long, 10mm square and has a 2mm deep notch with a tip radius of 0.25mm machined on one face. The specimen is supported at its two ends on an anvil and struck on the opposite face to the notch by the pendulum. The amount of energy absorbed in fracturing the test-piece is measured and this gives an indication of the notch toughness of the test material. The pendulum swings through during the test, the height of the swing being a measure of the amount of energy absorbed in fracturing the specimen. Conventionally, three specimens are tested at any one temperature and the results averaged. Charpy tests show whether a metal can be classified as being either brittle or ductile. This is particularly useful for ferritic steels that show a ductile to brittle transition with decreasing temperature. A brittle metal will absorb a small amount of energy when impact tested, a tough ductile metal absorbs a large amount of energy. The appearance of a fracture surface also gives information about the type of fracture that has occurred; a brittle fracture is bright and crystalline, a ductile fracture is dull and fibrous. The percentage crystallinity is determined by making a judgement of the amount of crystalline or brittle fracture on the surface of the broken specimen, and is a measure of the amount of brittle fracture.

• Test rang method A: 50
• Test rang Method B: 300
• Accuracy: 0.1g
• Specimen Size: > 150 mm x 150 mm
• Net weight: 70kg

Myq Falling Dart Impact Tester is designed to measure impact resistance property of plastic films, sheeting, paper and foils. It is based on free falling dart method and equipped wtih LCD display.Properties - Impact Applications - Plastic Films, Paper and paperboard, foilsMethod - Free Falling Dart MethodStandards - ASTM D1709, ISO 7765-1-1988, JIS K7124-1, GB/T 9639.1-2008Features Two methods (A&B) in one instrument Windows menu interface and touch screen Pneumatic specimen clamping Graphic display of testing process Pedal switch Built-in observation light RS232 micro printer Intelligent data sharing system

• Usage: Impact Loading
• Voltage: 380v
• Frequency: 50/60hz
• Automation Grade: Automatic, Fully Automatic
• Driven Type: Battery
• Certification: ISO 9001:2008 Certified
• Brand Name: ASLI
• Color: blue
• Condition: New
• Warrenty: 1year, 2years
• Operating Current: Single Phase
• Country of Origin: CHINA

• Application: Determination of the aggregate impact value,Laboratory
• Power: 230V
• Weights: 10 different weights from 100 gm to 1500 gm
• Hammer Lock: Adjustable height lock to release the hammer

We deliver Aggregate Impact Tester having greater accuracy and high work efficiency. We are offering a huge product basket that the customers can obtain right from Delhi(India). We have hired a team of professionals who hold immense knowledge of packaging. They make use of premium packaging material so as to make damage free deliveries.

Stripping Value Apparatus-VSLIC4012 Product Description Stripping Value Apparatus Bitumen and tar adhere well to all normal types of aggregates provided they are dry and are not exceptionally dusty. This problem of stripping is experienced only with bituminous mixtures, which are permeable to water. This test gives the procedure for determination of the stripping value of aggregates by static immersion method, when bitumen and tar binders are used. A circular tray rotates in a vertical plane at a rate of approximately 100 R.P.M. by an electrical geared motor. 4 bottles of approximately 400 cc are mounted on this circular tray at an angle of 900. To each other with their mouth towards center of the tray. A time switch is provided. Suitable for operation on 230 V A.C. Single Phase. Stripping Value Apparatus Bitumen and tar adhere well to all normal types of aggregates provided they are dry and are not exceptionally dusty. Thermostatically controlled water bath. Summary Bitumen and tar adhere well to all normal types of aggregates provided they are dry and are not exceptionally dusty. This problem of stripping is experienced only with bituminous mixtures, which are permeable to water. This test gives the procedure for determination of the stripping value of aggregates by static immersion method, when bitumen and tar binders are used.

• Brand Name: Paramount
• Certification: ISO 9001:2008 Certified
• Specialities: High Performance
• Color: Blue and Grey
• Condition: New
• Country of Origin: India
• Warrenty: Lifetime Buyback Warranty

Dart impact Master is a widely used instrument in different packaging industries where it is used for testing the strength of the plastic films and is best for testing the ability of the film to withstand the various forces levied on it. The instrument is provided with an electromagnetic dart hold/release mechanism to avoid any type of interference in force exertion The electromagnetic mechanism can hold a weight of up to 2 kg. The instrument is also provided with a digital counter that is helpful in determining the numbers of falls performed in a single test. The dual clamping device provided with the machine is best for providing wrinkle free clamping of the test specimen. Along with that there is a shielding device provided with the machine to prevent the dart from bouncing back out of the machine upon impact. Paramount Dart Impact Tester i9™ (Digital) is a Next Generation Equipment that is designed for providing optimum performance. Plastic films are widely used for various purposes in different industries. The biggest use of these plastic films is in the packaging industry. The dart impact test method is one of the Prime tests that is used for testing the strength of the films and their ability to bear impact from a freely falling dart.

• Driven Type: Electric
• Material: Metal
• Surface Finshing: Polished
• Resistivity: Rust Resistant
• Color: Metallic, Silver
• Application: Industrial

Aggregate Impact Tester is used for assessing the aggregate impact value of coarse aggregate. Our Aggregate Impact Tester features a circular base with two vertical guides along with a hammer. This hammer falls freely on coarse aggregate and is provided with a locking arrangement. The crushed aggregate is removed from the cup and then sieved & weighed. Clients can avail our Aggregate Impact Tester at affordable rates.

• Brand Name: Steco
• Usage: Crushing Value
• Automation Grade: Manual
• Capacity: 500 kN
• Test Sieve: 2.36 mm, 10mm, 12.5mm and 14 mm
• Electronic Balance: 3 kg. X 1 gm

  General Specifications: Consists of Case hardened Mild steel cylindrical container of 150 mm dia 0.5mm x 130 mm to 140mm high with base plate 200 to 230mm square x 6mm thick A plunger of 148mm 0.5mm dia x 100 to 115mm high. All parts directly coming in to contact with the specimen during the test are made of mild steel duly case hardened. Supplied complete with tamping rod, 16mm dia x 600mm long, one end rounded. Optional Accessories: The following accessories are not part of the standard supply and are supplied at an extra cost. Cylindrical Metal measure 11.5cm dia x 18cm height with handle. Electronic Balance 3 kg. X 1 gm Compression Testing Machine Capacity : 500 kN Test Sieve 2.36 mm, 10mm, 12.5mm and 14m

• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Material: Stainless Steel
• Certification: CE Certified
• Country of Origin: India
• Type: Automatic
• Warrenty: 1 Year

It is for the determination of the aggregate impact value and has been designed in accordance with IS-2386 (Part IV). The study construction consists of a base and support columns to form a rigid frame work around the quick release trigger mechanism to ensure an effective free fall of the hammer during test.

We manufacture Aggregate Crushing Value Apparatus conforming to BIS: 9376-1979. Superior quality raw materials are used in their construction and are incorporated with various advantageous features. Our Aggregate Crushing Value Apparatus is designed as per the specifications of the clients. It finds wide applications in various industrial activities and laboratories tests. Construction Consists of both end open cylinder base platePlunger handleTamping rod Specialty Easy operational featuresHigh efficiencyAccurate constructionCustom manufacturedLong-lasting

• Brand Name: Universal
• Material: Mild Steel
• Usage: Industrial
• Shape: Cylindrical
• Thickness: 150 Mm

• Material: Mild Steel
• Brand Name: Edufirst Enterprises
• Shape: Cylindrical
• Color: Black And Yellow
• Model Name/Number: EDF/IND-CAT-08
• Automation Grade: Manual

• Brand Name: SRI
• Automation Grade: Manual
• Material: Mild Steel
• Display Type: Digital and Analog
• Warranty: 1year
• Model Name/Number: SRI ITM-30
• Capacity: 30 Jule

• Weight: 450 Kg
• Voltage: 380V
• Power: 180W
• Frequency: 50Hz
• Phase: Three Phase

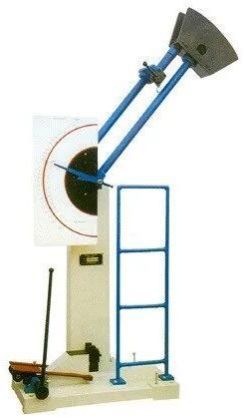

Designed for conducting Izod & Charpy Test. Specs: CHARPY TEST IZOD TEST Pendulum drop angle 140 deg. 85deg. Pend. Effective wt. 20.996kg 22.059kg Striking Velocity 5.3466m/sec 3.587m/sec Impact energy 300J 164J Min. scale graduation 2 J 2 J Distance of axis of P. Rot 825mm 825mm Max. permissible loss 0.5%. Striking edge angle 30 deg. 75 deg. Radius of Curvature 2.25mm 0.75mm Width 18mm

Crushing Value Apparatus, This apparatus is used for measuring resistance of an aggregate to crushing, as per IS:2386, (Part 4)
