Indentation Hardness Tester Dealers in Delhi

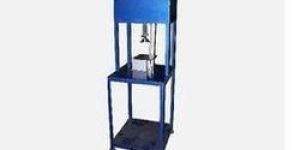

Indentation Hardness Tester

Get Price Quote

• Type: Hardness Tester
• Usage: Hardness Testing
• Color: Available in Many Colors
• Frequency: 45Hz
• Operating Type: Automatic
• Specialities: Easy To Use, Proper Working
• Warranty: 1year

Indentation Hardness Tester is used to measure the Indentation of flexible foam. Indentation is the measure of softness of the foam. The Indentation is determined by measuring the force required to compress the foam to a certain percentage of its initial thickness. We are engaged in manufacture, supply and export of Indentation Hardness Tester based in New Delhi. Our Indentation Hardness Tester has a digital indicator and shear beam type of load. It is highly appreciated by the customers for the accurate results. Technical Specification : Size of Sample : 380 x 380 mm Area of Indentor : 323 cm2 Diameter of Indentor : 202.8mm Capacity of Load : 100Kgf Accuracy of Load : 0.01Kgf (10gm) Traverse Measurement : 0 to 150 mm Speed of Movement of Indentor : 150 mm/ min Diameter of Hole on Platform : 6 mm Distance between holes : 19 mm Power : 220 V AC 50Hz. Related Standards : IS 7888 1976, ASTM D 3574 - 1986

Indentation Hardness Tester

Get Price Quote

It is due to our rich industry experience and expertise that we have been able to bring forward for our clients a wide range of Indentation Hardness Testers. Made in compliance with industry defined standards, these are widely used for rubberized coir cushioning for the indentation hardness measurement of foam, PU foam, rubberized coir and latex foam.The range is comprised of: A shear beam type load cell on which the test specimen is kept An indentor of the specified dimension mounted on self/ aligning ball bearing to press the test specimen With its specified dimension it can adjust its inclination to match the top face of the test specimen. A hand wheel (as well as by motor and gear box) and screw arrangement to manually move the indentor down A strip scale to measure thickness and a digital indicator to measure the compression The corresponding load is measured on the digital readout of the load cell.

Indentation Hardness Tester

Get Price Quote

Indentation Hardness Tester, Bundesmann Apparatus

Indentation Hardness Tester

Get Price Quote

Indentation Hardness Tester, sphere core Non woven Polyester, Digital Caliper
