Industrial Agitators Dealers in Anand Parbat, Delhi

A mechanical stirring device in which a suitably mounted induction motor will have a vertical shaft having speed of 6000 to 8000 revolutions per minute when loaded. The shaft will be equipped with a replaceable stirring paddle of either of the types and made of metal. The surface will be of such length that the stirring paddle will operate not less than 20 mm and not more than 35 mm above the bottom of the dispersion cup. The dispersion cup will be supported on a rest and shall have a removable baffle. A special dispersion cup conforming to either of the designs shown in IS 2720 (Part IV) 1985 will be provided to hold the sample while it is dispersed. The stirrer will be free from vibration whilst operation and the base will be made of M.S. of at least size 20 cm X 25 cm with rubber cushions. The container and baffle will be of such material as not be affected by the reagents like sodium Carbonate, Sodium silicate , Sodium Hexametaphosphate etc. The stirrings device will be suitable for operation on 230-250 Volts A C with controller switch for different revolution. It will be provided with 3 core wiring of with off-on switch on side. The dimensions of stirring paddles for stirring apparatus and dispersion cup will be as per IS 2720(Part IV) 1985.

This is for mechanical analysis and also other laboratory applications for stirring Speed approximately 4000 R.P.M. under load. A dispersion cup is supported on a rest on the stand of the stirrer and has a removable baffle. For operation on 230V A.C. supplied with dispersion cup or baffle cup.

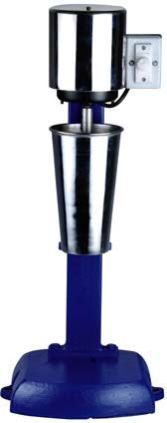

The High Speed Soil Stirrer is one of the reckoned products of our company. We are one of the leading Manufacturers, Exporters and Suppliers of the High Speed Soil Stirrer. The High Speed Soil Stirrer comes with many attributes that enhance its worth as an industrial product. Reference Standard - IS 2720 (PART IV) This is for mechanical analysis and also other laboratory applications for stirring Speed approximately 4000 R.P.M. under load. A dispersion cup is supported on a rest on the stand of the stirrer and has a removable baffle. For operation on 230V A.C. supplied with dispersion cup or baffle cup.

Product Code: EKE 056 Standrad: IS:2720 (Part 4)   EKE 055: Anderson Pipette Stand Incorporates a sliding carriage which is operated without transmittingvibrations to pipette or to sedimentation tube when the pipette isinserted and withdrawn from the liquid.Supplied complete with:EKE 05501 Anderson Pipette, Glass, 10 ml. capacityEKE 05502 Sedimentation tube, Glass, 500 ml. capacity Optional ExtrasEKE 05601 Dispersion CupEKE 05602 Baffle Designed as a compact bench-mounted laboratory Stirrer for the pretreatment stage of soils before particle size analysis. The mixer spindle operates within a Dispersion Cup which can be fitted with an antisplashing Baffle to improve the efficiency of mixing.Supplied without cup and baffle.Suitable for operation on 220 V, 50 Hz, single phase, AC Supply.
