Industrial Controls (ic) Wazirpur, Delhi

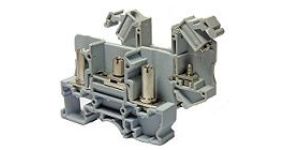

We offer ic disconencting type terminal blocks can be used to disconnect the continuity of the circuit without removing the wires. The terminal blocks can be used in applications like measuring, control and regulatory circuits a sliding link is used for disconnection. The link can be moved to one side by unscrewing and the barrel nuts provide test sockets as monitoring points for test plugs.

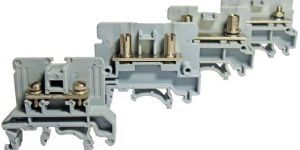

We offer terminal blocks. Stud type terminal blocks for range from m3 to m6 with ampere rating upto 150 a

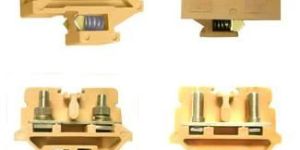

IC Polyamide series stud type terminal blocks are designed for terminations having fork/Ring type lugs and are preferred for applications where the connections are subjected to severe vibration. The range under development includes Terminal Blocks for wire sizes from 1.5 to 35 sq. mm.

Type : Stud

Brand Name : IC

IC Spring type terminal blocks have a compression spring below the contact clamp which helps in better connection. IC Spring  type terminal blocks have a compression spring below the contact clamp which helps in better connection. The terminal block is used for connection in high vibration applications.

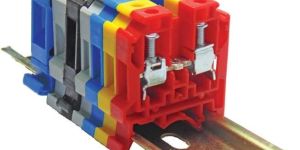

We offer screw terminal blocks. Screw (feed through) terminal blocks available for size 1.5 sq. Mm to 35 sq. Mm

We offer power terminal blocks. Power terminal blocks with rating from 170a to 300 a. Available in both melamine and polyamide

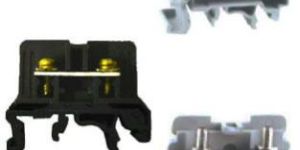

We offer ic polyamide series stud type terminal blocks are designed for terminations having fork/ring type lugs and are preferred for applications where the connections are subjected to severe vibration. The range under development includes terminal blocks for wire sizes from 1.5 to 35 sq. Mm.

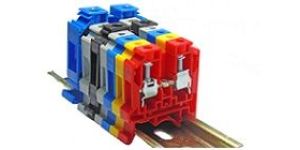

IC DIN rail mounted polyamide feed through terminal blocks offer a complete range of connections suitable for all control and power applications. A specially designed flexible foot enables easy mounting and dismounting from the mounting rail using a screw driver. The range includes Terminal Blocks for wire sizes from 0.5 sq.mm to 35 sq.mm.

Country of Origin : India

Type : Terminal Blocks

Application : Electronic Use

Feature : Easy To Connect, Electrical Porcelain, Proper Working

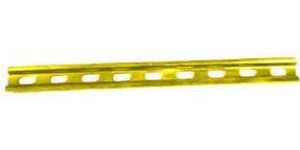

mounting channel - C type and G type

IC melamine series Rail mounted feed through terminal blocks with clearances for upto 750 V work with current ratings from mA to 125 A. The special spring helps in easy mounting and removal of a single terminal from the stack. IC rail mounted terminals also come with special locking pin which ensures a reliable mounting even for high vibration applications.

Type : Feed Through Terminal Block

Material : Melamine

Color : Brown

Feature : Easy To Connect, Electrical Porcelain, Shocked Proof, Sturdy Construction

Voltage : 220V

Power Source : Electric

Certifications : CE Certified, ISO 9001:2008

Country of Origin : India

Feature :  Insulation Resistance

Approvals : CE,  VDE , UL

Power Rating : 10Amp,  20Amp

Type :  Iec Connector

Thickness : /10 -1mm, /15 – 1.5mm, /20 – 2mm, /30 – 3mm

Color : Black,  Brown,  Brownish,  Dark-black,  Reddish

Voltage :  220V, 240V, 250V, 260V, 280V

Condition : New

Type : Feed Through

Brand Name : IC

Type : Disconnecting

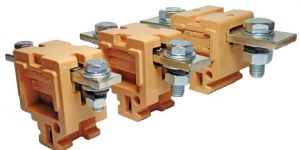

IC melamine series Power terminal blocks are well suited for applications using wires of large cross section. The design of the terminal block is such that it helps in connection of a fork or ring type lugs. The range includes Terminal Blocks for wire sizes from 16 sq.mm to 120 sq.mm.
