INTEGRATED ELECTRONCIS Bhikaji Cama, Delhi

We are offering wire to board connectors. Ie offers a vast range of discrete wire connectors, ribbon cable connectors, ffc and fpc cable connectors. The products are being offered in different pitches viz.:0.5mm,0.80 mm,1.00 mm,1.25 mm,1.27 mm,1.50 mm,2.00 mm,2.54 mm,3.96 mm,4.00 mm, 4.19 mm,4.50 mm,5.00 mm,6.35 mm etc . The matching wafers are offered in straight and right angle in dip (thru hole) and smt (surface mount type) terminations. Wires are crimped with the crimpsterminal and inserted in the housings to make perfect wire to board combination as per the required application of customer. The important link of the wire harness to the target board is terminal (crimp). Ie offers these high quality crimps in standard bulk and reel packaging. You may select the picture part no from the below pictorial guide lines, for wafer, housing and crimps required by you. Also e-mail us the pitch, the number of pin’s per row and number of rows of the connectors required for your applications. Ie’s engineering team will contact you on priority with appropriate solution for your application.

We are offering sim card usb connectors. The universal serial bus ( usb ) connector is basically an interface connector commonly used between a computer and a peripheral device such as monitor, scanner, mouse amd keyboard with mobile etc. Integrated electronis offers a range of usb sim card connectors. Kindly let us know the item code for below picture to enable us to quote our most competitive offer for a quality usb sim card connector.

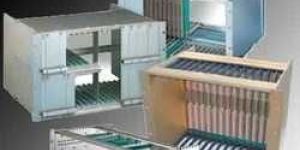

We offer System Packaging and Accessories - Leanpac. Integrated Electronics offers a Quality System Packaging and Accessories for Advance TCA, Micro TCA and Compact PCI Systems platform. We offer the complete Systems, Backplane Sub rack, front Panel and other related accessories, Backplane Connectors all under one window. Advanced TCA System Platform (ATCA) Interface protocols: PICMG 3.1 (Ethernet), PICMG 3.2(Infiniband ), PICMG 3.3 (Star Fabric), PICMG 3.4 (PCI Express), PICMG 3.5(Rapid I0 ) Redundancy Hot-swappable Shelf management ATCA Sub rack 19" rack mount sub rack Fan tray design Fully EMI protected ACDC power module entry Design Cable tray design RoHS Compliance MicroTCA System Platform MicroTCA.0 & AMC.0 Multiple slot choices 19" rack mount system Accommodates 200mm front AMC modules Optional cooling design MicroTCA Sub rack 1U 3U 6 U, 19" rack mount sub rack Custom AMC slot entry available Fully EMI protected RoHS Compliance CPCI System Platform Vertical and horizontal board assembly Redundancy Hot-swappable Custom configuration available CPCI Sub rack Models Different height options as: 3U, 4U, 7U and 9U Suitable for card depth 160mm and 220mm Width: 84HP Overall Depth: 251.4mm 281.4 mm And the range of Accessories: cPCI Rail Type A , B , C ,D, F ,G Tapped Strips Top And Bottom covers, side Plates, Front and Rear Cover Plates Fan Modules, Fan Tray Card Guide and Keys cPCI Power Supplies EMI Gaskets Front Panel and Accessories Standard Eject able handles PCB Holders Feel free for to contact our Engineering team for technical specs for these product IE dedicated team will be happy to support you.

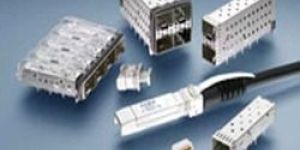

We offer Sfp Cage - Integrated Electronics. The Small Form-Factor Pluggable (SFP) is a specification for a common interface for optical modular transceivers. SFP products include compact optical transceivers and patch cord cable assemblies that are typically used in telecommunications, data communications, and storage area networks. The connector used with SFP cage is a 0.8mm (.0315"), 20 position, surface mount right angle connector and supports the high speed and physical compactness while also being hot-swappable. SFP transceivers are designed to support Gigabit Ethernet, Fiber Channel, and other communication standards as well and can perform up to 4.25 Gbps. With the Pluggable Concept modules can be easily interchanged, electro-optical or fiber optic networks can be upgraded and maintained more conveniently. This gives a substantial cost savings both in maintenance and in upgrading efforts. Integrated Electronic supplies SFP cage and the connector in Press Fit and solder type in 1x1, 1x2, 1x4, 1x6, and stackable 2x1, 2x4 and 2x6 SFP Cage and Connectors. IE also offer SFP, the 10 Gbps Cage & Connectors with EMI Springs or Elastomeric Gasket. Customer can opt for SFP Cage with or without Heat Sink and with or without Light Pipe Option’s to suit our customer requirement. Small show case of some SFP is given below for detail inputs or PDF’s of these SFP family products

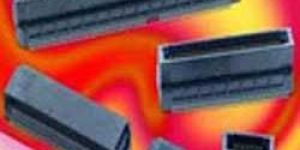

We supply a wide range of high efficiency Card to Board Connectors. These connectors have been manufactured as per highest quality standards and are known for their user-friendly features and excellent performance. We offer following range of card to board Connectors: CF Card Connector Edge Card Connector Memory Card Connector PC Card Connector High Speed Edge Card Sockets IE also offers the industry standard PCMCIA, PCI-EXPRESS, MICRO TCA Slot Connectors The Card to Board Connector is being offered with different pitch options viz: 0.635 mm, 0.8mm, 1 mm, 1.27 mm and 2.00 mm.The High Speed Edge Card Sockets Solutions are being offered for 0. 8mm, 1.60 mm and 2.40 mm thick cards.

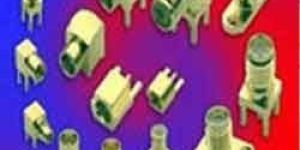

We are offering rf connectors. Integrated electronics is well accepted source for a high variety product mix of rf connectors and rf cable assemblies. following range of high quality rf connectors and rf cable assemblies is feature available at short lead time at competitive price: sma smb 50 ohms and 75 ohms ssmb smp mmcx 50 ohms and 75 ohms mcx 50 ohms and 75 ohms din bnc, mini bnc, tnc, n type ganged rf 50 ohms and 75 ohms 100 ohms shielded twisted pair. Micro high frequency rf cables 50 ohms and 75 ohms cables assemblies feel free to contact our engineering team to work out even an asp as per your requirement.

We are offering rf cable assemblies. Rf cable assemblies - samtec integrated electronics is one of the reputed sources for the rf cable assemblies. Ie offers these quality products at competitive price with shorter lead time following rf cable assemblies offered by us with different terminations: · 50 ohms rf cable assemblies (rg 178ctb-2650f-1rg 174rg 316rg 58) · 50 ohms microwave cables assemblies (cca-25mmwc2550-01rg 405rg 402) · 75 ohms cable assemblies (tcf-3075f-01-01rg 179belden 1855arg 6) · 100 ohms cable assemblies (ccs-155709-01-pp) details specifications of cables are given in below slides for your ready reference.

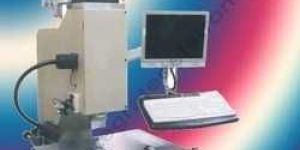

We are offering press fit machines. The press fit machine offered by us is user’s friendly hardware, software and operating environment tool. This smart mechanical gadget has various embedded features which helps the machine operator to assemble the expensive high density back plane. Ie also offer top and bottom press fit tools to make the job further easier and faster for your operator the production department will find this as a wonder full tool to reduce processing rejections. all the features make this machine the best choice in the market. Our customers are very happy with the performance of machine. Feel free to contact ie for further details of the machine

We are a leading supplier & distributor of nextron-power connectors-integrated electronics such as power terminal, cpci power connector, atca power connector, micro tca power connector signal and dc power mixed and hard metric power connector from india.

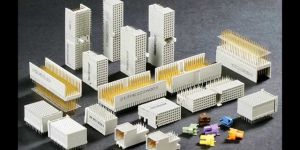

We are offering hard metric connectors. Integrated electronics is an established source for offering competitive solution of hard metric and future bus connectors. The high speed backplane hard metric connectors are offered in 2mm pitch. These connectors are offered basically in 5 2 and 8 2 rows module form. Both types of modules are press fit terminations and commonly used for backplane applications. The 5 2 rows module hard metric connectors are of 5 signals rows with 2 shield rows. similarly the 8 2 rows hard metric connectors module are of 8 signals rows with 2 shield rows in standard pin outs. These connectors comply with iec 60176-4-101 standards. The hard metric sockets are available with optional bottom and top shields. The mating headers are being available in different tail lengths. Integrated electronics also offers the users friendly press fit machine. The press fit machine offered by ie is users friendly and can press fit the hard metric connectors and also other different types of press fit connectors and sfp cages. we do support our customers with top and bottom tools to press fit the connectors on mother boards . We have a good data base of the cross part nos to other standard manufacturer of press fit connectors. The high quality connectors are offered with shorter lead time at competitive prices.

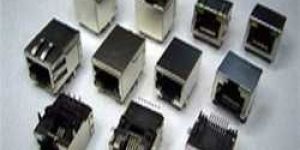

We are offering networking connectors. Ie offers vide range of modular jacks for net working applications. These pcb jacks are being offered in thru hole (dip) and smt type. These rj45 are available in different permutation and combinations with different options: top entry side entry shielded and without shield with and without led long body, short body single port and multi port options 1x1 , 1x2, 1x4, 1x8, 2x4 and 2x8 pictures of few modular jacks are given below, as the range of these io connector is very big. It will be appreciated if customer can e-mail us the picture of the required type of pcb jack along with brief description for prompt action from our cs group.

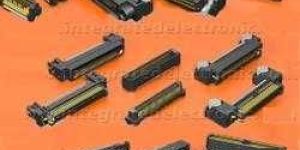

We are offering high speed connectors. Integrated electronics is one of reputed source for high speed connectors. We offer a vast range of board to board high speed ground plane connector strips. Tthe product is available in 0.5 mm, 0.635 mm, 0.8 mm pitch. Elevated matted stack heights to 30 mm. Right angle options on 0.5 mm and 0.635 mm pitch feel free to check with us for your requirement of standard single - ended and differential pair high speed connectors.

We are offering future bus connectors. Futurebus (ieee 896) is a computer bus standard. Future bus intended to replace all local bus connections in a computer, including the cpu, memory, plug-in cards and even, to same extent, lan links between machines. Integrated electronics standard future bus connectors at competitive price.

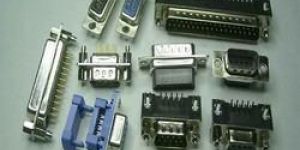

We are offering d type connectors. The rectangular io connectors are available in different options such as wire solder type, discrete wire crimp type, idc crimp type. The d sub connectors are being offered in following pin outs: 9 pin, 15 pin (two rows), 15 pin( three rows vga), pin, 26 pin ( three rows ) and 50 pins . Ie offers pcb solder type d sub connectors in straight (pmt) and right angle terminations and also wire solder type connectors along with their respective dust cover (hood) ie also offers short body space saver smt d sub. Connectors and power d sub connectors in different permutation and combinations. Please find below few pictures of commonly used d subs in industry. Do let us know your specifications of d sub as per your requirement. Our engineering team will be happy to contact you and work on your specific requirement.

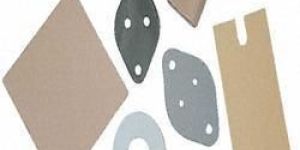

We offer Bergquist - Thermal Interface Material - Integrated Electronics. Thermally Conductive Interface Materials for Cooling Electronic Assemblies: Integrated Electronics is a well known source for giving solutions for thermal Interface Insulators. IE can Supply a vast range of Sil Pad's, Gap Pad's in Sheets or Customized Die Cuts. IE supplies Dry and Single Side Adhesive Sil Pad's. The Sil Pad is available in standard Sheet size and in Roll form. The Standard Products in this family marketed by integrated Electronics are: SIL PAD GAP PAD HI FLOW BOND PLY & LIQUID BOND TIC ( THERMAL INTERFACE COMPOUND ) T-CLAD ( THERMAL CLAD )

We offer Samtec - Integrated Electronics. Samtec manufactures and Integrated Electronics delivers. Samtec Inc. Is a worldwide manufacturer of interconnects viz. Board-to-Board, Cable-to-Board,and Panel and IO applications including High Speed, Micro, Edge Card, Rugged-Power, IP68 Sealed, and RF Components and Cable Samtec is the service leader in the interconnect industry. Samtec being ranked as the one of the fastest growing companies in the industry . Integrated Electronics is an authorized distributor of Samtec Inc. Since 1995. Integrated Electronics is well known in the industry to give the right solution for your requirement of interconnects.

We are offering terminal blocks. Integrated electronics is engaged in offering the finest quality array of pcb mount and din rail terminal blocks. The pcb terminal blocks offered by us are screw type and screw less (push type) in 3.5 mm, 5.00 mm, 5.08 mm. And 7.5 mm pitch as per the industry standards. ie offers the din rail terminal blocks of cage clamp technology. This technology gives an upper hand being vibration proof, shock-proof and maintenance free properties embedded in it. ie offers the din rail mounted terminal blocks for side entry and top entry applications. We supply the terminal blocks for 1.5 mm sq 2.5 mm sq 4.00 mm sq 6.00 mm sq 10.00 mm sq 16.00 mm sq. And different sizes of the conductors. We also support the din rail terminal blocks for 2, 4 and 6 conductors applications. customer has the option to select the product from the different standard colors, viz. grey, blue, green � yellow grey, green-yellowblue. ie also offers the related accessories such as end plate adjacent jumper, markers, operating tools, ferrules, cable stripper, stripping tools and crimping tools. you may select the type of terminal blocks required by you from the below show case, or send us the specifications if possible with part no picture in case your requirement differs from the below product show case. ie engineering group will be pleased to work out on your requirement, as ie team is committed to serve our valuable client

We are offering board to board connectors. Integrated electronics offers an exhaustive range of board to board connectors in thru hole (dip), surface mount type (smt) and press fit terminations. we offer flexibility to designer’s in all the three axes (x,y, z all directions). board to board connectors are offered in standard & micro pitches, viz. 0.5 mm , 0.635 mm , 0.8 mm, 1.00mm, 1.27 mm, 2.00 mm, 2.54 mm, 3.96 mm, 4.19 mm, 5.00 mm and 6.35 mm. The standard headers, stackers and sockets are available in low profile, standard profile and high profile combinations. The flexibility for modification of standard stacker’s body position in 0.13 mm increments is highly appreciated by the industry. The pin headers and sockets are available in straight, right angle and mixed technology options. The wide variety of standard options includes polarization, locking clips, alignment pins and flex shrouds. There are be different permutation and combinations hence we request customers to feel free to contact our customer service or sales team for complete specifications pdf of all our products. to suggest the cost effective solution for your board to board application kindly up date us on following basic points : no of pins per row no of rows pitch dip smt board to board spacing expected annual usage (eau) other additional information if any: let us know the picture no selected by you from the below set of picture along with above requested information our dedicated team will contact you asap

We are offering push pull connectors. Integrated electronics is now offering the latest circular snap latch connectors for medical, industrial, high working temperature applications. The users friendly push pull mechanism of these connectors is robust with high performance. Self latching system while pushing the plug axially into the socket. The connection cannot be broken by pulling on the cable other than the outer release sleeve small size cable up to dia of 6.5 mm and allow up to 14 solder contacts. Available in high grade plastic and metal housing. Cylindrical connector with push pull locking system with option of receptacle with nuts, right angle contacts for pcb or back plane mountings. Feel free to contact us for other combinations. Select the item code from below pictures.

We are offering frc cable connectors. Frc: the flat ribbon cable connectors offered by us are basically the insulation displacement connectors.ie offer these connectors in 2, 54 mm, 2.00 mm and 1, 27 mm pitches. The female idc connectors can be sourced from ie as a loose connector. We also support our customers for connectors assembled with idc cable. The harnesses can be customized in different lengths as per your requirement in different options as a single end, transfer end or daisy chain type. The mating connectors are offered in smt & dip both version in straight and right angle terminations.the mating headers are available with or without latch options in following pin outs: 10, 14, 16, 20, 26, 30, 34, 40, 50, 60 and 64 pins the twisted pair idc cable crimped for selective length options in 10, 16, 20, 26, 34, 40 and 50 pin outs is also available on request

We are offering ic socket. Integrated electronics is offering array of ic sockets in dip, plcc and pga. The dip sockets are offered in low profile, machine contact and zif versions, the available pin outs are: 6 pin, 8 pin, 14 pin, 16 pin, 18pin, 20 pin, 22 pin, 24 pin, 28 pin and 40 pin. The single in line machineround pin socket strip can be offered in different profiles.
