Jaw Crusher Dealers in Karol Bagh, Delhi

We make available Laboratory Jaw Crusher which is specially designed to speed up crushing of Aggregates, Ores, Mineral, Coal and Similar Materials. We fabricate Laboratory Jaw Crusher using fine quality parts and components. Our Laboratory Jaw Crusher is efficient laboratory equipment that demands low maintenance cost. The best attribute of our Laboratory Jaw Crusher is that it is easy to install. Our Laboratory Jaw Crusher is trusted for its quality. Capacity 250kg materials can be crushed in approx. eight hours. It is Suitable for operation with 440 V, Three Phase A.C. Supply. Industries We Serve OresMineralsCoalChemicals

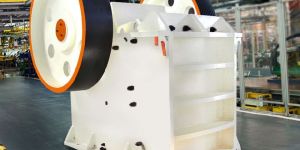

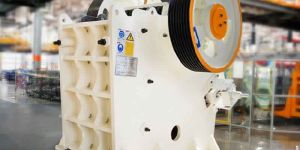

Reinforced jaw crusher is most suitable for crushing compressive strength material hardness not higher than 280 Mpa:ore rock slag etc. and the most large degree materials must not be more than technical parameter table set rules. Advantage V-type Structure Deep cavity V type structure makes higher capacity (compared with normal jaw crusher) and bigger input size of material. Pull rod Protective Device Pull rod protective device can protect machine from damage load bearing of jaw head is increased machine is more effective and safer service life of bearing and principal axis are lengthened. Adjusting Device of Discharge Gate New design of discharge gate adjusting device convenient quick and safe. compact structure and unique design. New Oil-way Design New oil-way design matches up with oil pump; easy to handle and maintain. Working principle Reinforced jaw crusher main parts: main frame partiality axis rotation part crushing cavity working part insurance device and discharging mouth adjusting devices components. 1. frame part: the board former box back box welding components etc. 2. Eccentric shaft rotational part: mainly by dynamic jaw eccentric shaft bearing housing pulley etc.. Which is the main part of the power transmission. 3. Crushing cavity working part: mainly composed of fixed jaw plate dynamic jaw plate side lining board guard board and other components which are working parts of crushing materials. Product introduction Production capacity : 10-600T/H Notice: this capacity is mean value and the specific production capacity would be subjected to actual equipment configuration of clients. Processable Material : granite marble basalt iron ore cobble shale bluestone coal cobblestone construction material. Range of Application : metallurgy mining chemical cement construction refractory materials ceramic industry all kinds of ore and rock with medium hardness medium and fine crushing process. Reinforced jaw crusher is most suitable for crushing compressive strength material hardness not higher than 280 Mpa:ore, rock, slag, etc., and the most large degree materials must not be more than technical parameter table set rules. JC jaw crusher with its superior performance and stable and reliable quality, has won the trust of customers who pursue high quality equipments. It is the first choice of high efficiency and crushing equipment.

• Usage/Application: Industrial
• Power(W): 1.5 Watt
• Capacity: 230-400 kg/hr
• Dimension(L*W*H): 950 x 400 x 550 mm
• Material: Mild Steel

• Components: Crusher Frame, Pitman, Anti-friction Bearings

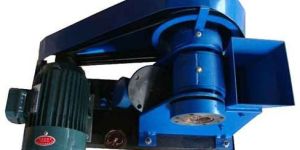

Jaw crushers are primary crushers used for the processing of hard feedstocks, such as rock and concrete. This is made possible with the help of a pair of vertical jaws lined with replaceable manganese steel plates. One jaw is fixed and the other moves back and forth. The jaws of the crusher are made of manganese steel. The opening of the jaws is adjustable from 20 mm to 6 mm and its capacity is 200 kilograms per hour. The crusher is provided with a hopper at the top for pouring materials. The equipment is supplied with 3 HP electric motor, triple V-belt pulley type and mounting frame.

Features : Compact and rugged for laboratory and small production units Designed for speed crushing Discharge opening adjustment range: 3 - 10mm Manganese steel jaws adjustable up to 6 mm opening 250 kg materials can be crushed in approx eight hours Supported with strong steel frame Voltage: 440 V, Three Phase A.C. Supply

Details The jaw crusher series mobile crushing machine is a new type rock crushing equipment which can greatly expand the concept of mobile crushing processing areas. Advantage High Quality Jaw Crusher The vehicle-mounted jaw crusher of EMCC is an efficient and versatile device which concentrated research and development according to the operating environment of mobile crushing plant and experience of stone processing in site. Quality Thick Steel frame Structure High quality thick steel frame structure makes mobile crushing plant run smoothly extending equipment’s service life. High Quality Vibrating Feeder Professional designed new type feeder which can uniformly convey bulk materials for primary and secondary crusher. Scalable Regulation Stand The stent body can be easily retractable according to the different ground level to ensure stable operation of the vehicle when running thus prolonging equipment life. Working principle The jaw crusher series mobile crushing machine is a new type rock crushing equipment, which can greatly expand the concept of mobile crushing processing areas. Its purpose of design idea stands in customers’ position, putting eliminating obstacles about the limitation of crushing space and environmental pollution as the primary solution. Truly provide customers with simple, efficient and cost-effective operation hardware facilities of projects. With large crushing ratio, the strong crushing pioneer-Jaw crusher type mobile crushing station is well fit for construction waste crushing and other mining region. Product introduction   Production capacity : 16-400T / H Note: this is only an average value and the specific is subject to the clients’actual equipment configuration in site. Processable Material : Limestone granite marble basalt iron ore river stone shale bluestone coal cobblestone construction waste etc. Range of Application : Mining smelting building material highway railway water conservancy chemical industry and other industries The jaw crusher series mobile crushing machine is a new type rock crushing equipment, which can greatly expand the concept of mobile crushing processing areas. Its purpose of design idea stands in customers’ position, putting eliminating obstacles about the limitation of crushing space and environmental pollution as the primary solution. Truly provide customers with simple, efficient and cost-effective operation hardware facilities of projects. With large crushing ratio, the strong crushing pioneer-Jaw crusher type mobile crushing station is well fit for construction waste crushing and other mining region.

Product Code: EKE 442   EKE 442-SP Single phase Jaw Crusher is also available on request   Designed to speed-up crushing of aggregates, Ores, Mineral, Coal and similar materialsCompact and rugged for laboratory and small production units Manganese steel jaws adjustable upto 6 mm opening 250 kg materials can be crushed in approx. eight hoursSupported with strong steel frameSuitable for operation with 440 V, three phase, AC supply

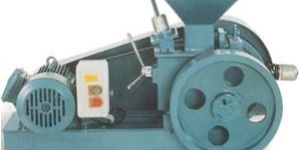

Laboratory Jaw Crusher is designed to speed up the crushing of aggregate, ores, minerals, coal, coke, chemicals and other similar materials. Its compact and of rugged construction is advantageous for general laboratory or small pilot plant operations. Two jaws of manganese steel are provided in the jaw crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward and strokes with a rocking action exerts pressure on the coarse material to pass through the jaws. A hopper is provided at the top for feeding materials. The smooth jaws ensure a uniform product and easy cleaning is possible. 50mm (approximately) Product discharge 6mm to 18mm (adjustable) 80kG/hr (approximately - based on material) 440 Volt, 3 Phase, 50hz, A.C supply with 3.H.P  Motor, a starter ' v ' belt pulley drive and mounting

Coal Jaw Crusher, subsonic wind tunnel, Colour Matching Cabinet

Jaw Crusher Machine
