We offer vacuum compression moulding machine.

Type : vacuum compression

Brand Name : JRD

Type : Compression Press

Condition : New

Warranty : 1 year against manufacturing defect

After-Sales Service Provided : yes

We offer rubber screw injection moulding machine.

Type : Four Post Screw Injection

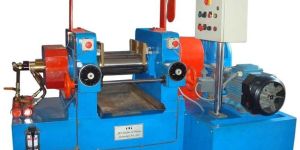

We offer our lab mixing mill engineered to score over the conventional mills used for mixing of polymers between 2 rotating rolls in terms of higher efficiency and improved machine life. The transmission by 3-stage helical reduction gear box connecting drive motor to the rear roll coupled with anti friction roller bearings instead of bush bearings result in a substantial reduction in power consumption. Another futuristic feature on our mills is the optional addition of hydraulic sensing circuits incorporated for roll loading records of different batches compounds.

Type : Rubber two roll mixing mill

Brand Name : JRD

Condition : New

After-Sales Service Provided : Yes

we offer Our Hot feed extruders have proved to be the most economical forming machines for rubber from the beginning of rubber processing. JRD Extruders are equipped with advance features which improve the efficiency. Helical gear box with inbuilt thrust handling bearing assembly and power driven feed roller assembly result in steadier, increased and uniform feeding. A hot feed rubber extruder fitted with a strainer die is a strainer extruder. The strainer die filters all foreign particles in the compound. These may be some compound particles higher in size than the least mesh size, metal or plastic. The extruder accepts warm rubber strip from a 2- roll mill. The screw conveys the compound to the die and force through the die under pressure. The hot feed extruders remain the first economical choice for straining of rubber compounds and as a feeder machine for Rubber Calenders. Strained compounds results in better physical properties of the final product.

Type : Rubber Extruder

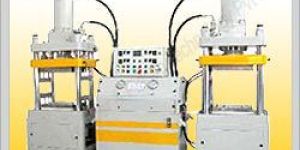

We are leading manufacturer of Moulding machines. 60 ton, Down Stroke, Compression molding machine with useful feature of Top & Bottom Hydraulic Core lifters which enables automatic operation of 3 or 4 plate compression moulds. The top core lifter enables moulder to use the same press for compressiontransfer molding. These Hydraulic Press are effective to use. We provide these Hydraulic Press at best market price.

Brand Name : JRD

Processing Type : Compression Moulding

Condition : New

Warranty : 1 year against manufacturing defect

After-Sales Service Provided : yes

We are offering compression moulding machine.

Brand Name : JRD

Condition : New

Warranty : 1 year against manufacturing defect

After-Sales Service Provided : yes

In almost all fields of rubber extrusion, the cold feed extruders are fast replacing the conventional hot feed extruders. The elimination of the warm up mill before feeding a cold feed extruder contributes to economic sense and reduced heat cycle for the rubber compound. The cod feed extruders also improve the geometric stability of the extrusion. The final die pressure achievable is also 30 percent higher. Well defined zone temperature controls are possible for scroll, barrel and die head with separate circulation systems for each zone resulting in superior quality for the product. A vertical helical reduction unit, hinged feed roll assembly and pressure transducer in the head are all in tune with the latest trend. Compared to hot feed extruder, the output of cold feed extruder for the same size of the scroll, is much higher, resulting in reduced effective power input.

Type : Rubber Extruder

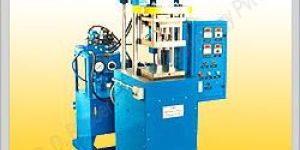

We offer 25 ton, ‘C’ Frame Transfer Molding Machine with double pot & plunger .

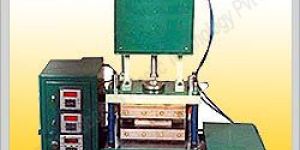

We offer 5 tonne,pneumatic bench top transfer moulding machine.

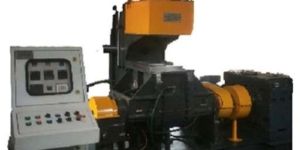

We are offering 35l kneader. We are a leading manufacturer of kneaders. The kneaders are now available with advanced features & technology. We provide these at best quality and best market price.

Type : Rubber Mixer

We are a leading manufacturer of kneaders. The kneaders are now available with advanced features & technology. We provide these at best quality and best market price.

Type : Rubber Mixer

We offer 12" x 30" rubber mixing mill.

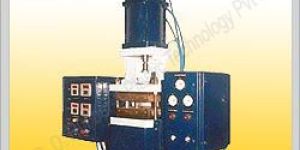

We offer 10 ton, pneumatic transfer molding machine.
