Jyoti Rubber Udyog (india) Limited Ajmeri Gate, Delhi

Reinforcement : Plies of woven textile or braiding of high-strength synthetic fibre.

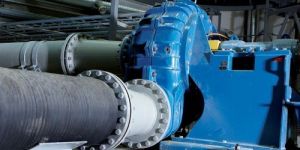

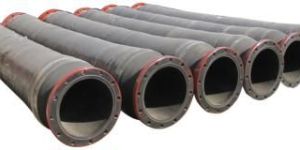

Designed for heavy duty water suction and discharge service, where rugged yet flexible hose is required both for dewatering and delivery purposes during excavation of mines, project construction, deflooding operations and for handling sewerage, waste water and mud. Type of Hoses: Type -1 Hose with rough bore, Type -2 hose with smooth bore. If the liquids are non- corrosive and do not carry solids in suspension, as in the case with muddy water, rough bore is used in other cases smooth bore is used: CONSTRUCTION Lining: a blend of natural & synthetic rubber compound resistance to water and abrasion. Reinforcement:Natural or Synthetic fabric or a combination thereof with two helical GS wire (as per IS – 280/78) embedded between the reinforcement plies. In case of rough bore, of the two helical wire reinforcements, first is internal and visible from inside and the second is embedded between layers of plies. Cover: Corrugated or plain cloth – marked finish outer cover made from natural rubber compound resistant to abrasion and weather. End connection: Each hose length has soft plain ends on each side for clamping or built in nipples/ flanges on request.

Length : Up to 75 mm* 15 meters (Max.)Above 75mm * 7.5 meters.

water suction and discharge service, where rugged yet flexible hose is required both for dewatering and delivery purposes during excavation of mines, project construction, deflooding operations and for handling sewerage, waste water and mud. Type of Hoses: Type -1 Hose with rough bore, Type -2 hose with smooth bore.

Type : Spray Hose Pipe, Hydraulic Hose Pipe

Color : Silver

Material : Brass

Thickness : 1.5mm to 12.5 mm

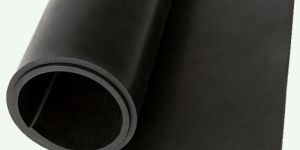

JYOTI offer a wide range of short blasting rubber sheets that are manufactured using superior quality rubber & are free from blisters. These sheets are used in industries where short blasting processes are required. All these sheets are available in various sizes and thicknesses, to meet the specifications of our clients.

Thickness : 3.0 mm to 50.00 mm

Color : Normally Black, red, green (other colors as per demand)

Size : 1 meter width

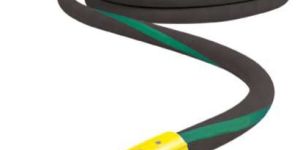

High pressure flexible hose conveys sand or other abrasive materials engineered for sand/shot blasting purposes or Ordinance factories, steel furniture, manufacturing workshops, heavy engineering industries and so on. EXCEPTIONAL JYOTI have the distinction of being the only manufacturer to have been granted Certification Mark License for this item. CONSTRUCTION Lining : Extra thick seamless tube of natural rubber soft compound of high tensile strength, excellent abrasion resistant and free from any mineral filler. Reinforcement : Rubberized woven textile. Cover: Smooth, cloth – marked finish, natural rubber compound resistant to weather and abrasion. Electrical bonding : If required by the purchaser, a copper wire comprising a number of strands is incorporated between the reinforcement plies to provide electrical continuity along the whole length of the hose.

Feature : Reasonable rates, Quality assured, Durable

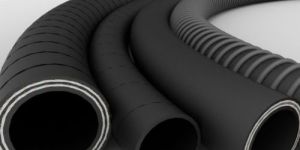

Recommended for use in steel mills, thermal plants, heavy engineering industries for conveying saturated steam at a specified pressure CONSRUCTION Lining : Synthetic rubber compound, seamless, reasonably smooth in bore, uniform in thickness and free from air bisters, porosity and splits Reinforcement: Synthetic yarn braided or rubberized woven fabric, natural or synthetic or a combination thereof. Cover : Cloth – marked finish, suitable rubber, compound resistant to abrasion and heat.

Lining : Uniform lining of suitable rubber compound resistant to all grades of petroleum and blended products having aromatic hydrocarbon content not more that 25% Reinforcement : Plies of natural synthetic woven fabric rubberized with a suitable compound and two helical GS wires. (as per IS 28078) embedded in the reinforcement plies in the case of smooth bore and in rough bore hose, the first is internal and the second is embedded.

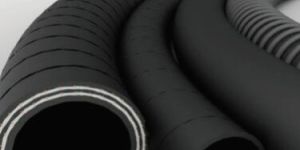

Designed to handle a wide range of chemicals, acids, alkalies and alcoholic materials during production and transfer operations. CONSTRUCTION Lining: Black or white smooth rubber compound based on EPDM. Hypalon, Chloroprene, Acrylonitrile bytyl, SBR, natural or a blend thereof depending on the liquid for which the hose is to be employed Reinforcement: Plies of rubberized woven textile with/or without wire helix Cover: Smooth or corrugated synthetic or natural rubber or a blend thereof

Inner Diameter : 14mm to 400mm

Working Pressure : 1bar to 4bar

Temperature : + 57o C

Thickness : 0.5 to 100.0 mm as per the requirement of the customer

Thickness : 0.5 to 100.0 mm as per the requirement of the customer

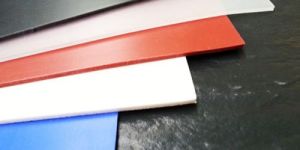

As per BS 2751 are highly resistant to petroleum products and suitable for use at high temperature up to + 240 0F and also where food grade sheets are required. Calendered or press Moulded finish.   Thickness: 0.5 to 100.0 mm as per requirement of the customer Size: 1mt*2mt in mould finish or long length from 0.5

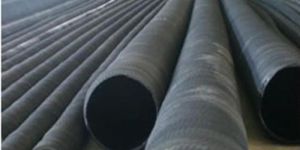

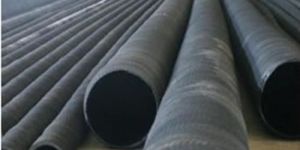

CONSTRUCTION Lining : Uniform lining of suitable rubber compound resistant to all grades of petroleum and blended products having aromatic hydrocarbon content not more that 25% Reinforcement : Plies of natural synthetic woven fabric rubberized with a suitable compound and two helical GS wires. (as per IS 280/78) embedded in the reinforcement plies in the case of smooth bore and in rough bore hose, the first is internal and the second is embedded. Electrical Bonding : A copper wire comprising of a number of strands is embedded between the reinforcement plies to provided electrical continuity along the whole length of the hose. Cover : Chloroprene rubber outer cover having plain or corrugated cloth marked finish, resistant to oil abrasion and weather. End connections : The hose has built in nipples with or without flanges as per customer’s specification. I-D (mm) Max Length (meters) Up to 100: 15.00/ Up to 200: 9.0/ above 200:7.5 Temperature Range : 400 F to + 200 0F
