Jyoti Weighing Systems Ltd. Connaught Place, Delhi

Weighment software is a weighbridge data management software suitable for industries as well as public weighbridges. The standalone weighment software is suitable when all weighment data is to be stored on PC connected to the weighing indicator.   The software allows connection of upto 4 IP cameras at each weighbridge. The software is very popular where the real image of the vehicle at the time of weighment is captured and is stored in the PC and can be viewed and printed at anytime.   • Weighment Software suitable for Truckscale. • Connect upto 4 Cameras at each weighbridge. • Supports IP Cameras with RTSP support. • Records recall based on vehicle number as well as weighment uniqueID number. • Supports dot-matrix printers, graphics printers. Images can be printed using ...graphics printer. • Configurable ticket settings. • User groups, user accounts and access control. • Email alerts on weighment. Images are also sent in email. • SMS alerts on weighment. • Report alerts fortnightly or shift wise. • Print report of weighment data. Report Vehicle wise, Customer wise, and Material wise etc. • Excel report of weighment data.

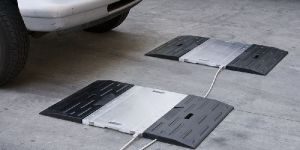

  We as Jyoti Weighbridges are among the finest weigh pads providers in India.     • Low Profile ultra slim design for maximum ...flexibility, portability and simplicity. • Applied in lawful check of weight by the govt. agencies • Print test results automatically. • Static and dynamic mode, fast and accurate.

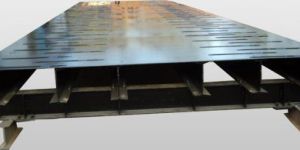

  Where the installation of pitless weighbridges has a constraint of space, pit type weighbridges can be installed similar to the old conventional type. In pit type weighbridges, the foundation pit is required to be constructed. In Pit type the entire weighbridge will be flushed with ground level. Major steel structure and load cells are not visible and are provided under the platform structure. The Manhole entry is provided for maintenance purpose. Pit type weighbridges needs very less area compared to Pit-less type weighbridges dispensing with requirement of ramps on either side.

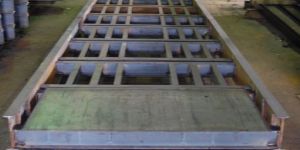

  Suitable for installation on surface without the necessity of expensive foundation. The heavy duty structure is built on "segment design" to reduce deflection. The weighbridge can be provided with ramps on both sides for allowing the lorries to move on and off the platform. The Box type segments comprising of 6/8 Nos. Long girders transmit load equally on all members, ideally suited for heavy lorries with concentrated load on back wheels/axles. Simple bolting of segments to main girders automatically aligns the surface making it ideal option for mobility of weighbridges from one site to another. Civil work cost of such eletronic weighbridges is much lower than conventional weighbridges.

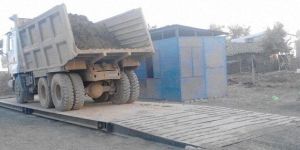

Jyoti is well known for mobile weighbridges in India.   • Faster weighment and can weigh daily upto 200 Lorries / tractor trolley / carts. • No civil work   • The mobile weighbridge can be installed within 2 hours. • Steel ramp provided along with the weighbridge. • Battery Operation capable of weighing up to 36 hours. Can also be operated on Solar System. • No mechnical operation required and the weight is instantaneously indicated on big display for facility of ...operator and farmers.   • Having RS-232C port for hook up with PC/HHT.

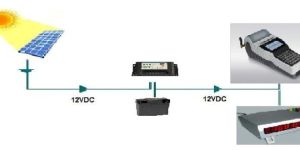

Mobile handheld data terminal is used to capture weighment process and transmit information to host computers in real time. The simple user-friendly design allows you to operate with ease and is ideal for weighment in remote locations with no power supply and no proper security arrangement or weighbridge room. This can be integrated with external barcode reader and built in contactless smart card reader to enhance flexibility in Operations. Inbuilt Dot matrix printer enables you to print transaction receipt instantly. This has clear white FSTN LCD display and Keypad with good user interface. The collected data can be uploaded to a remote server via RS-232   ...• System is user friendly and can be customized to suit individual requirement. ...• System is highly reliable and easy maintenance. ...• Operated on LI-ON Battery of 9V, also can operated on solar power. ...• Email alerts on weighment. ...• SMS alerts on weighment. ...• Anti-cheating system. ...• RF ID cards along with card reader. ...• SMS after each weighment. ...• Report alerts fortnightly or shift wise.

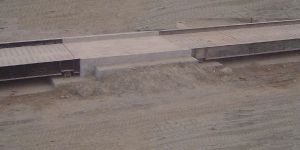

With the sizes of Lorries undergoing revolutionary change the extension kits can be installed in conjunction with existing weighbridges to save on the cost of installing altogether new weighbridges and new foundation work.For installing this kit, the existing structure may be of any make/design and with any type of Load cells. Both the platforms will be combined with special weight indicator/intelligent terminal for combined weight of both structures or individual weight of each structure. The extension kits are available to connect existing weighbridges into 80/100 Tons weighbridges.

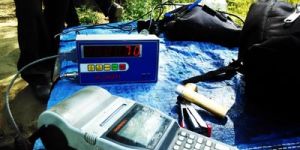

are ideal for weighment in remote locations with no power supply and no proper security arrangement or weighbridge room. Electromechanical weighbridge is a combination of mechanical and electronics where a single "S" type load cell is connected in-between the transfer and inter lever of mechanical weighbridge, which in turn gives the analog signal to the electronic indicator. The heavy duty structure is built to reduce deflection.   Features: • System is user friendly and can be customized to suit individual requirement. • System is highly reliable and easy maintenance. • Operated on LI-ON Battery of 9V, also can be operated with external battery bank.

We as Jyoti Weighbridges are well known for digital weight indicators in India. Microprocessor based State of Art Electronics combined with high volume production provide for best value in precsion digital weighing features like auto zero tracking,7 segment 6 digit LED/Graphic display, A/D Converter sigma Delta type with 24 bit resolution, 128k memory make it unique digitizers.     Technical Specifications & Features of 1000E/ 2000E Weight Indicator   • Internal increment upto 250000. • Memory 128K extendable upto 512kb. • Protection - 200MA fuse for input AC mains. - ...Input line filter for EMI and RFI supression. • SMPS power supply. • 90V to 270V AC @ 50 Hz. • Power consumption 10VA. • Optional graphic display. • Remote display optional 1.2", 2.3" , bright ...red LED display to indicate the weight on ...platform. • Isolated RS-232 OR RS-485 serial port provided for computer interfacing. • Operating temperature 0 to 55 C & Humidity up to 95% RH non-condensing. • Triple range system for achieving lower graduation size. • Smart calibration for minor correction • Password protection to avoid tampering. • Auto zero tracking with programmable delay.

Digital Load cells are basically a combination of analog load cell and an analog to digital coverter mounted on the load itself. The Digital Load cells are precalibrated and are capable of transmission of the weight by the load cell in digital form. Digital load cells allow indicator to monitor each loadcell individually for errors. Features of Digital Load Cells:-   • Digital load cell incorporates its own internal analogue to digital conversion unit. This reduces the noise pick up and delivers a very stable analog signal from Load cell for ADC conversion. When a high quality analog signal is obtained for ADC conversion, it will give more accurate weight display with low noise. • The internal resolution increases multiple times. This facilitates offering of a very small weight grduation for display. • Digital Load cell are precalibrated and hence no field calibration is required. • Digital output signal (RS-485/4 or 6 Wire). • Nominal load 10t-40t. • Easy to install. • Communicate upto 1200 Meter. • Hermatically sealed IP - 68 Protection.

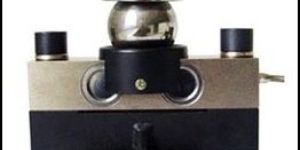

It is designed to load from center through cup & ball mechanism which helps for self-restoring and self-centering for improvement in accuracy. It is fitted with GD Tubes for transit voltage protection caused due to lighting or line voltage faults. Available in the capacities 10t to 40t. Nickel plated, hermetically sealed IP - 68. Suitable for electronic truck scales, railway Scales and other electronic weighing devices. Features: • Capacity: 10t to 40t. • High accuracy. • Easy installation, reliable performance. • Optionally with OIML approval. • Accessories: Button, steel ball, cup, base plate.

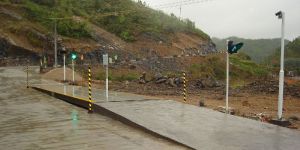

Computer Integrated management & control system,Automatically identify vehicle information system,Traffic controller along with RED & GREEN light signals, Voice automatically prompt system,Video monitoring system, Anti-cheating system,RF ID cards along with card reader,SMS after each weighment,Support for Dot matrix as well as Graphics printers, Zero check between weights

.Jyoti is well known for Weighbridge Computerization for best computerized weighbridges in India.   ...• Computer Integrated management & control system. ...• Automatically identify vehicle information system. ...• Traffic controller along with RED & GREEN light signals. ...• Voice automatically prompt system. ...• Video monitoring system ...• Anti-cheating system. ...• RF ID cards along with card reader. ...• SMS after each weighment. ...• Email after each weighment. ...• Support for Dot matrix as well as Graphics printers. ...• Zero check between weights.

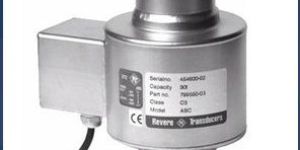

This product is suitable for use in road and rail weighbridges and process weighing applications. The welded construction and built-in surge protection ensure that this product can be used successfully inharsh environments. Features: • Capacities: 20, 30, 40t • Self-aligning, stainless steel single column • Hermetically sealed, IP68/IP69K • Various type approved by OIML R60 C3 and NTEP class III 10000 divisions •Optionally Built-in surge protection tubes (GDTs)

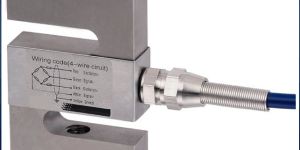

We as Jyoti Weighbridges are well known for Analogue Load Cells in India. Hermetically sealed by laser, Nickel plated, waterproof and anti-corrosion, Suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.
