Lakshmi Trading Company Ajmeri Gate, Delhi

Customers can order from us an assortment of Yoke Type Track Roller (NUTR) at affordable rates. Our Yoke Type Track Roller is noted for its robust construction, great dimensional stability and long service life.   Features  Outside surface profile of the outer ring Yoke type track rollers without inner ring With cage, axial guidance of outer ring Sealing Lubrication Yoke type track rollers with inner ring With cage, with full complement needle roller or cylindrical roller set Axial guidance of outer ring Anti-corrosion protection Sealing Lubrication Operating temperature Suffixes Details : Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets. Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment. The bearings are available with and without an inner ring and in both sealed and open versions. Series PWTR is supplied as an X-life design. Due to a modified material and the optimised raceway geometry of the outer rings, the basic rating life has been increased by up to 30%. The static and dynamic load carrying capacity has also been increased. At the same time, the stress placed on the mating track has been reduced as a result of the optimised lateral surface profile and its improved surface quality. Due to these measures, highly robust bearing arrangements with an extended operating life can be achieved. Specifications : Outside surface profile of the outer ring Yoke type track rollers with a crowned outside surface are predominantly used in practice since they are often inclined in relation to the mating track and edge stresses must be avoided. The radius of curvature of the outside surface is R = 500 mm. In the case of NNTR..-2ZL, the radius is indicated in the dimension table. The series NATR..-PP, NATV..-PP, NUTR and PWTR..-2RS have an outside surface with the optimised INA profile. In yoke type track rollers with this curvature profile (Figure to Figure ): The Hertzian pressure is lower Edge loading under tilting is lower Wear of the mating track is reduced The operating life of the mating track is extended. Yoke type track rollers without inner ring Yoke type track rollers RSTO and RNA22..-2RSR do not have an inner ring. They are particularly compact but require a hardened and ground raceway on the shaft or stud. Series RSTO is not self-retaining. This means that the outer ring and the needle roller and cage assembly can be fitted independently of each other. With cage, axial guidance of outer ring : In RSTO and RNA22..-2RSR, the rolling elements are guided by a cage. These designs do not have axial guidance of the outer ring. Axial guidance of the outer ring and needle roller and cage assembly must be provided in the adjacent component; see section link. Sealing : RSTO is not sealed, series RNA22..-2RSR has lip seals on both sides. Lubrication : The bearings are greased with a lithium complex soap grease to GA08. Yoke type track rollers with inner ring These yoke type track rollers are used if the shaft or stud does not have a hardened and ground raceway. STO is not self-retaining. This means that the outer ring, needle roller and cage assembly and inner ring can be fitted independently of each other. With cage, with full complement needle roller or cylindrical roller set The series STO, NA22..-2RSR, NATR and NATR..-PP have a cage. The series NATV and NATV..-PP have a full complement needle roller set, while yoke type track rollers NUTR, PWTR..-2RS and NNTR..-2ZL have a full complement cylindrical roller set. Bearings without a cage have the largest possible number of rolling elements and therefore have particularly high load carrying capacity. Due to the kinematic conditions, however, the speeds achievable with these bearings are somewhat lower than those achievable with the cage-guided yoke type track rollers. Axial guidance of outer ring STO and NA22..-2RSR do not have axial guidance of the outer ring. This must be provided in the adjacent construction; see section link. In NATR and NATV, axial guidance is provided by contact washers and axial plain washers. In NUTR, the outer ring is guided by the rolling elements, in PWTR..-2RS and NNTR..-2ZL it is guided by the central rib and the rolling elements. Anti-corrosion protection : Yoke type track rollers PWTR..-2RS-RR are protected against corrosion by the special coating Corrotect®. For a description of the coating, see link. Three-stage seal In the three-stage concept, there is a gap seal between the plastic axial plain washer and the outer ring and a labyrinth seal between the formed seal lip and the undercut in the outer ring. The disc spring shape of the axial plain washers gives a preloaded contact seal as the third stage. It also provides axial sliding contact between the outer ring and contact washers, thus reducing wear and grease consumption. Lubrication : The bearings are greased using a lithium complex soap grease to GA08 and can be lubricated via the inner ring. Relubrication can be carried out using Arcanol LOAD150. Operating temperature Yoke type track rollers can be used at temperatures from –30 °C to +140 °C. In sealed bearings (suffix 2RS and 2RSR) and bearings with a plastic cage (suffix TV), the temperature range is restricted to between –30 oC and +120 oC. Note the information on the operating temperature range in Technical Principles, Lubrication.        Yoke type track rollers NATR..-PP and NATV..-PP are suitable for operating temperatures from –30 oC to +100 oC, restricted by the grease and the seal material.

Type : Track Roller Bearings

Customers can avail superior quality Yoke Type Track Roller (NATR) from us. Our Roller is widely preferred by customers because of its compact design, perfect finish, durability and hassle free performance.   Features Outside surface profile of the outer ring Yoke type track rollers without inner ring With cage, axial guidance of outer ring Sealing Lubrication Yoke type track rollers with inner ring With cage, with full complement needle roller or cylindrical roller set Axial guidance of outer ring Anti-corrosion protection Sealing Lubrication Operating temperature Suffixes Details : Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.      Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment. The bearings are available with and without an inner ring and in both sealed and open versions. Series PWTR is supplied as an X-life design. Due to a modified material and the optimised raceway geometry of the outer rings, the basic rating life has been increased by up to 30%. The static and dynamic load carrying capacity has also been increased. At the same time, the stress placed on the mating track has been reduced as a result of the optimised lateral surface profile and its improved surface quality. Due to these measures, highly robust bearing arrangements with an extended operating life can be achieved.      Outside surface profile of the outer ring Yoke type track rollers with a crowned outside surface are predominantly used in practice since they are often inclined in relation to the mating track and edge stresses must be avoided. The radius of curvature of the outside surface is R = 500 mm. In the case of NNTR..-2ZL, the radius is indicated in the dimension table. The series NATR..-PP, NATV..-PP, NUTR and PWTR..-2RS have an outside surface with the optimised INA profile.  In yoke type track rollers with this curvature profile (Figure to Figure ) :     The Hertzian pressure is lower     Edge loading under tilting is lower     Wear of the mating track is reduced     The operating life of the mating track is extended. Yoke type track rollers without inner ring Yoke type track rollers RSTO and RNA22..-2RSR do not have an inner ring. They are particularly compact but require a hardened and ground raceway on the shaft or stud. Series RSTO is not self-retaining. This means that the outer ring and the needle roller and cage assembly can be fitted independently of each other.   With cage, axial guidance of outer ring : In RSTO and RNA22..-2RSR, the rolling elements are guided by a cage. These designs do not have axial guidance of the outer ring. Axial guidance of the outer ring and needle roller and cage assembly must be provided in the adjacent component; see section link. Sealing : RSTO is not sealed, series RNA22..-2RSR has lip seals on both sides.Lubrication : The bearings are greased with a lithium complex soap grease to GA08.     Yoke type track rollers with inner ring These yoke type track rollers are used if the shaft or stud does not have a hardened and ground raceway. STO is not self-retaining. This means that the outer ring, needle roller and cage assembly and inner ring can be fitted independently of each other.      With cage, with full complement needle roller or cylindrical roller set The series STO, NA22..-2RSR, NATR and NATR..-PP have a cage. The series NATV and NATV..-PP have a full complement needle roller set, while yoke type track rollers NUTR, PWTR..-2RS and NNTR..-2ZL have a full complement cylindrical roller set. Bearings without a cage have the largest possible number of rolling elements and therefore have particularly high load carrying capacity. Due to the kinematic conditions, however, the speeds achievable with these bearings are somewhat lower than those achievable with the cage-guided yoke type track rollers. Axial guidance of outer ring STO and NA22..-2RSR do not have axial guidance of the outer ring. This must be provided in the adjacent construction; see section link. In NATR and NATV, axial guidance is provided by contact washers and axial plain washers. In NUTR, the outer ring is guided by the rolling elements, in PWTR..-2RS and NNTR..-2ZL it is guided by the central rib and the rolling elements. Anti-corrosion protection : Yoke type track rollers PWTR..-2RS-RR are protected against corrosion by the special coating Corrotect®. For a description of the coating, see link.Three-stage seal In the three-stage concept, there is a gap seal between the plastic axial plain washer and the outer ring and a labyrinth seal between the formed seal lip and the undercut in the outer ring. The disc spring shape of the axial plain washers gives a preloaded contact seal as the third stage. It also provides axial sliding contact between the outer ring and contact washers, thus reducing wear and grease consumption. Lubrication The bearings are greased using a lithium complex soap grease to GA08 and can be lubricated via the inner ring. Relubrication can be carried out using Arcanol LOAD150. Operating temperature Yoke type track rollers can be used at temperatures from –30 oC to +140 oC. In sealed bearings (suffix 2RS and 2RSR) and bearings with a plastic cage (suffix TV), the temperature range is restricted to between –30 oC and +120 oC. Note the information on the operating temperature range in Technical Principles, Lubrication. Suffixes : Yoke type track rollers NATR..-PP and NATV..-PP are suitable for operating temperatures from –30 oC to +100 oC, restricted by the grease and the seal material.

We are offering shaft coupling. Roller chain coupling nylon chain coupling jaw-flex coupling emer-flex coupling neo-flex coupling bellows coupling

The company is enlisted among the trusted Suppliers and Exporters of Track Roller Bearings. The Bearings we make available undergo numerous quality-tests before the final dispatch. In order to meet the bulk and urgent requirements of the buyers, we maintain a large stock of these in our state-of-the-art warehouse. The entire range of the Bearings is reasonably priced by us.   Track rollers are self-retaining, single or double row units with particularly thick-walled outer rings. These bearings can support axial forces in both directions as well as high radial forces. The bearing outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where there is misalignment in relation to the raceway and edge stresses must be avoided. The track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.INA track rollers LR52 and LR53 – now available in X-life quality : INA track rollers series LR52 and LR53 are now available in X-life quality. They can now transmit higher radial loads and have a longer rating life thanks to the optimized internal design.The external dimensions of the new bearings have not changed, which means they can replace earlier bearings without difficulty.The advantages at a glance Higher load carrying capacity Improved protection against contamination Large grease reservoir Low bearing temperatures Less strain is placed on the lubricant Downsizing possible Identical external dimensions New seals for more efficiency : The seal concept was also revised at the same time as the optimized internal design. INA track rollers LR52 and LR53 are supplied with HRS seals as standard or with the new Z seal as an option. Both seals offer significantly higher sealing action compared with the previous version.HRS seal Innovative lip contact design Axial contact between the inner ring and the seal lip Keeps grease in the bearing and contamination out DEHP free Z seal Optimized Z sealing shield with labyrinth sealing function Function of inner and outer ring adapted for Z shield Wider operating temperature range is possible if a combination of a steel cage and adapted greasing is used X-life – premium quality for rolling bearingsThe improved INA X-life LR52 and LR53 track rollers feature numerous design details that result in up to 10 % higher dynamic load ratings and up to 15 % higher static load ratings : Unchanged outside diameter Heavy-section outer ring Optimized internal construction Contact angle optimized for higher load carrying capacity Innovative seal design Also available with an improved steel sealing shield Optimized polyamide cage Robust and rigid steel cage available as an option Increased speed limits

The company offers Thrust Needle Roller Bearings. The Bearings we make available are manufactured using the latest technology. We maintain a large stock of the Bearings in our spacious warehouse in order to meet the bulk and urgent requirements of the buyers. Details In rolling stands where high thrust loads have to be accommodated in addition to radial loads, double-row tapered roller bearings or spherical roller thrust bearing pairs are additionally installed. Screw-down mechanisms for adjusting the rolling gap are fitted with tapered roller thrust bearings.

Bearing Number : F 4346.1

Weight : 0.60 gm

Brand Name : INA

Material : Stainless steel

Shape : Round

Packaging Type : Box

Hardness : 45 HRC

Inside Diameter : 110 mm

Thickness : 25 mm

Outside Diameter : 130 mm

The taper roller design has been with us for many years. Most commonly found in automotive applications (especial heavy commercial vehicles), the taper roller provides many benefits. Its construction allows radial and axial loads to be applied and absorbs impact and shock loads with ease if properly fitted. There are many varieties of taper including back-to-back, face-to-face, sealed and preloaded units. sizes available: 30210 . 32210, 33210 etc.

Brand Name : SKF,FAG,NTN ,KOYO & NSK

Owing to our team of diligent professionals, we are engaged in supplying stud track roller. Appreciated for their ready to fit quality, dimensional accuracy, excellent tilting rigidity and high radial and axial load carrying capacity, offered rollers are always on high demand. These rollers are widely used in rotary tables, milling head, face plates and in various measuring and testing equipment. Offered rollers are manufactured as per the international norms and standards at our vendors' end to maintain their wider application area. Patrons can avail qualitative stud track roller from us at market leading prices. stud track roller cage guided needle rollers, axial guidance by rib and washers kr.pp sealed with lip seals for operating temperatures from -30o c to +100o c limited by the grease and sealing ring material kr has gap seals on both sides outside diameter from 16 mm to 90 mm axialradial bearings and axial angular contact ball bearings are ready-to-fit bearing units with high axial and radial load carrying capacity high tilting rigidity and high accuracy both series have the same mounting dimensions and are use for bearing arrangements in rotary tables, face plates and miling head as well as measuring and testing equipment.

Brand Name : INA,IKO,NTN & SA

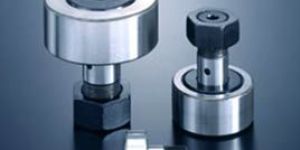

We are offering cam follower. This is the basic form of cam follower. Line up of size variations range from stud diameters of minimum 3 mm to maximum 30 mm, and they can be used for a very broad range of applications.

We specialize in supplying and exporting Stainless Steel Bushes from Delhi, India. We manage a huge stock of Stainless Steel Bushes in our spacious warehouse to address bulk and urgent requirement of customers. Procured from dependable vendors, our Stainless Steel Bushes can be availed by buyers at most economical rates.   Features : Impeccable finish Dimensional accuracy Sturdiness Specifications Speed Limit 1.Static Load - 250 N/mm2 Dynamic Load -  140 N/mm2 Load capacity -140 N/mm2 Dry Friction -  2.0 m/s Oil Lubrication - 5.0m/s Temperature Limit -  -195oc - 300oc PV limit (dry) -  4.3 N/mm2 – m/s PV limit (oil) -  50 N /mm2 – m/s Friction Coefficient -  Dry Friction - 0.8- 0.20 Oil Lubrication -  0.02 -0.07 Thermal Conductivity -  42 W/m.k Coefficient of thermal expansion - 15 x 10_6 /k

Type : Sleeve Bushings

Material : Mild Steel

Shape : Round

Thickness : 2mm

Length : 40mm

Color : Gray

Pattern : Plain

Finishing : Polished

Dimension : 400-500mm

Packaging Type : Plastic Packet

Outer Diameter : 30mm

Inner Diameter : 5mm

Size (Inches) : 5-10 Inches

Rust Resistance : Yes

Spherical roller bearings can support high radial loads and moderate axial loads in either direction. They are also suitable for applications involving moderate shock or impact loads. Different cage materials are available for these bearings including steel, polyamide depending on the requirements of the application sizes: 22205 eab 33 – 22222 eab 33 steel cage 22308 eab 33 – 22315 eab 33 steel cage.

Brand Name : SKF,FAG,NTN ,KOYO

We are a reliable Supplier and Exporter of Single Row Angular Ball Bearings. Our range of Bearings is self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. Byers are free to place bulk orders of the Bearings with us and we ensure their timely execution.   Details : Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. The raceways of the inner and outer rings are offset in relation to each other in the direction of the bearing axis. The bearings are available in open and sealed versions. Their self-alignment capacity is very small. X-life : Many sizes of angular contact ball bearings are supplied in X-life design. These bearings are indicated in the dimension tables. Bearings of X-life quality have an improved raceway geometry as well as optimised surfaces. This gives a significant increase in the fatigue limit load of the bearings. In calculation of the expanded adjusted rating life, values up to 50% higher are achieved. In certain applications, a smaller design of bearing arrangement can therefore be used if necessary.

We make available Shell Type Needle Roller Bearings. The Bearings offered by us are lightweight with large load ratings. We are capable of delivering bulk orders of these within the allocated time.   Types Caged type Grease retained full complement type Product Features : Shell Type Needle Roller Bearings are light weight bearings with large load ratings. They employ a shell type outer ring made from a thin special steel plate which is accurately drawn, carburized and quenched, thus providing the lowest sectional height among the needle roller bearings. There are two types of bearings available in this series; the caged type and the full complement type. The appropriate type can be selected according to the operating conditions. The caged type has a structure in which the needle rollers are accurately guided by the cage and thrust rings. It is useful for applications at high-speed rotation. The full complement type needle roller bearing, on the other hand, is suitable for heavy-load applications at low-speed rotation. Since these bearings are press-fitted into the housing, no fixtures for axial positioning are needed. They are ideal for use in mass-produced articles that require economy, and have a wide variety of applications.

We have carved a niche in the market as the Supplier and Exporter of Self Lubricating Bronze Bushes from Delhi, India. The range of Bronze Bushes we offer is procured from known vendors who conform to the latest industrial methods for its fabrication. We are capable of delivering any order of Self Lubricating Bronze Bushes within postulated time.   Features - Low friction Accurate dimension Anti corrosive Specifications : Maximum Load Capacity -  Static Load - 250 N/mm2 Dynamic Load -  140N/mm2 Maximum Sliding Speed -  Dry Friction -2.5m/s Oil Lubrication -  5.0m/s Temperature Limit -  -195oC - 300oC Friction Coefficient -  Dry Friction -0.08 -0.20 Oil Lubrication -0.20 -0.07 Thermal Conductivity -  70 W/m.k Coefficient of thermal expansion -  17 x 10-6/k

Weight : 1.5 Kg

Material : Stainless Steel

Brand Name : IKO

Shape : Round

Packaging Type : Box

We are engaged in exporting and supplying of Roller Followers. Our Roller Followers are designed for outer ring rotation, where needle rollers are incorporated in a thick walled outer ring. The outer ring of a Roller Follower runs directly on track surface and helps in reducing the edge load cause due to mounting errors.Types of Roller Followers Separable Roller Followers Non-Separable Roller Followers Heavy Duty Type Roller Followers

superbly designed and manufactured, our next variety of bearings is printing machine bearings that are procured from the certified vendors. as far as cost is concerned, we provide printing machine bearings at feasible prices so that buyers can easily afford them. having years of experience, we are enough capable to deliver printing machine bearings as and when requested by the buyers.   description ina printing machine bearing f-53272 : bearing for heidelberg printing machine printing type : offset printing machine

Type : Cam Follower Bearing

Condition : Barnd New

Warranty : NO

Country of Origin : GERMANY

Brand Name : INA

After-Sales Service Provided : NO

Precision positioning table is a positioning table, featuring high reliability, high accuracy, and high rigidity. The linear ways are assembled on a slide table and bed made of cast iron which are designed to have a high rigidity and superior vibration damping characteristics, and a precision ball screw is assembled in the drive accuracy and positioning accuracy, as well as high load capacity. four sizes with table widths ranging from 120mm to super large size 420 mm are available. Two axis tables which combine these single axis tables are also available as standard specifications. This product is most suitable for use as a high accuracy positioning mechanism with a large applied load and a relatively long stroke. series: tslh (single axis) and ctlh ( x,y axis)

Brand Name : INA, IKO,THK, ABBA

Precision linear slides precision linear slides precision linear slide is a light weight and compact linear motion rolling guide, comprising a u shaped table (or slide unit race) and bed (or track rail) made from stainless steel sheet by precision forming. The raceway grooves are accurately ground on the table and bed. Precision linear slide features high proformance and durability , making this series suitable for measuring equipment, disk drives ic manufacturing and inspection devices etc. Series: bsp (linear motion) , bspg (built in rack and pinion) , bsr (endless linear motion)

Precision alignment table at is a rotary positioning mechanism for precision angle correction, which consists of a high rigidity steel table and bed assembled with crossed roller bearing as a table support bearing. Precision alignment table at converts linear motion produced by ball screw drive into circular motion of an appointed operating angle range, and performs positioning in the direction of rotation. Linear way l is assembled as a linear motion rolling guide in the ball screw drive mechanism and serves to achieve high accuracy positioning in combination with the precision ball screw.

Brand Name : INA,IKO,THK & ABBA

Weight : 2 Kg

Material : Stainless Steel

Packaging Type : Box

Shape : Round

Outside Diameter : 30 mm

Brand Name : INA,IKO,NTN & SA

Weight : 250 g

Material : Stainless Steel

Packaging Type : Box

Shape : Round

Bore Size : 8 mm

We offer needle roller cages for general usage. product features needle roller cages for general usage are bearings which display excellent rotational performance. Needle rollers with extremely small dimensional variations in diameter are incorporated and retained in their specially shaped cages with high rigidity and accuracy, which precisely guide the needle rollers. When combined with shafts and housing bores that are heat treated and accurately ground as raceway surfaces, needle roller cages for general usage are particularly useful in small spaces. In addition, since they are lightweight and have high rigidity as well as a large lubricant holding capacity, they can withstand severe operating conditions such as high speed rotation and shock load, and they are used in a wide range of applications.

We export and supply only high quality Needle Roller Cages. Our Needle Roller Cages display excellent rotational performance and needless of its dimensional variation in diameter, they provide high accuracy and precision in terms of quality. Used particularly is small spaces, our range of Needle Roller Cages are lightweight and extremely rigid. Even at higher speeds they can absorb a lot of shock load.
