Series AFG Averaging Flow Grid
Get Price Quote

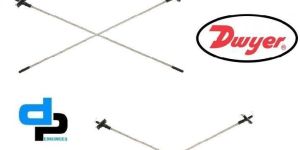

series afg averaging flow grid cost effective air flow station for ducts up to 60" the series afg flow grid is an outstanding simple yet accurate cost effective alternative to other duct mounted pressure sensors. Once installed and connected to a suitable measuring instrument, the device will provide years of trouble free monitoring of both air and gas flow. Installing the afg flow grid is quick and easy, the afg is supplied in kit form to allow both workshop and on-site installation into a wide range of square and circular ducts up to approximately 60". the afg flow grid is a fundamental pressure sensing device designed to transmit a continuous differential pressure signal. When this output is connected to a suitable measuring instrument (i.e., manometer, pressure transducer, etc.), it may be used to determine air velocity and volume flow rate. how the afg flow grid works the afg flow grid consists of two tubes mounted diagonally across a square or rectangular duct, or diametrically across a round duct. The tubes are drilled with a series of equi-spaced holes. the holes in one tube face directly upstream and sense total pressure, while the pairs of holes in the second tube also face forward but at an included angle of 79 degrees, sensing static pressure. The total and (sub) static pressures are averaged along the length of each tube and provide pressure signals at connectors outside the duct wall. The pressure differentials across these connectors constitute the output signal. product applications to display differential pressure, velocity or volume flow using a micro manometer, gage, or transmitter to give a warning of over or under flow rate using a pressure switch to control air supply in a system by connecting the grid to a pressure transmitter with an electrical output which can be used to feed into a control system to display differential pressure on a simple fluid manometer to give visual indication of changes in volume flow rate in the duct modeldescription afg-1averaging flow grid, 5/16" (8 mm) tube diameter, 27" (688 mm) tube length. afg-2averaging flow grid, 5/8" (16 mm) tube diameter, 59-4/5" (1518 mm) tube length. specifications service:monitor air or compatible gas flow. wetted materials:304 ss, pvc, polyurethane, acetyl plastics, and neoprene rubber. accuracy:±5%. maximum temperature:176°f (80°c). velocity range:295.2 ft/min to 5904 ft/min (1.5 to 30 m/sec). diameter of tubes:5/16" (8 mm) or 5/8" (16 mm). maximum duct diagonal:60.4" (153.4 cm). maximum duct diameter:59.4" (150.9 cm). process connections:5/16" barbed. weight:afg-1: 1 lb (454 g); afg-2: 3 lb (1361 g). features kit complete with 2 probes and installation hardware trimmable length for any duct size up to 60" alternative to costly air flow stations
Series AFG Averaging Flow Grid
Get Price Quote
Series AFG Averaging Flow Grid cost effective air flow station for ducts up to 60" the series afg flow grid is an outstanding simple yet accurate cost effective alternative to other duct mounted pressure sensors. Once installed and connected to a suitable measuring instrument, the device will provide years of trouble free monitoring of both air and gas flow. Installing the afg flow grid is quick and easy, the afg is supplied in kit form to allow both workshop and on-site installation into a wide range of square and circular ducts up to approximately 60". the afg flow grid is a fundamental pressure sensing device designed to transmit a continuous differential pressure signal. When this output is connected to a suitable measuring instrument (i.e., manometer, pressure transducer, etc.), it may be used to determine air velocity and volume flow rate. how the afg flow grid works the afg flow grid consists of two tubes mounted diagonally across a square or rectangular duct, or diametrically across a round duct. The tubes are drilled with a series of equi-spaced holes. the holes in one tube face directly upstream and sense total pressure, while the pairs of holes in the second tube also face forward but at an included angle of 79 degrees, sensing static pressure. The total and (sub) static pressures are averaged along the length of each tube and provide pressure signals at connectors outside the duct wall. The pressure differentials across these connectors constitute the output signal. product applications to display differential pressure, velocity or volume flow using a micro manometer, gage, or transmitter to give a warning of over or under flow rate using a pressure switch to control air supply in a system by connecting the grid to a pressure transmitter with an electrical output which can be used to feed into a control system to display differential pressure on a simple fluid manometer to give visual indication of changes in volume flow rate in the duct modeldescription afg-1averaging flow grid, 5/16" (8 mm) tube diameter, 27" (688 mm) tube length. afg-2averaging flow grid, 5/8" (16 mm) tube diameter, 59-4/5" (1518 mm) tube length. specifications service:monitor air or compatible gas flow. wetted materials:304 ss, pvc, polyurethane, acetyl plastics, and neoprene rubber. accuracy:±5%. maximum temperature:176°f (80°c). velocity range:295.2 ft/min to 5904 ft/min (1.5 to 30 m/sec). diameter of tubes:5/16" (8 mm) or 5/8" (16 mm). maximum duct diagonal:60.4" (153.4 cm). maximum duct diameter:59.4" (150.9 cm). process connections:5/16" barbed. weight:afg-1: 1 lb (454 g); afg-2: 3 lb (1361 g). features kit complete with 2 probes and installation hardware trimmable length for any duct size up to 60" alternative to costly air flow stations Material : And Neoprene Rubber. Feature : Easy To Install, High Quality, Quality Approved Packaging Type : Carton Type : Series AFG Averaging Flow Grid Finishing : Polished Use : Monitor Air Or Compatible Gas Flow. Color : Silver Condition : New
