Specifications : This is a portable load frame which can easily be kept on laboratory bench. Thus it is very convenient to the user to conduct tests. A motorised screw jack is fixed at the base to which are fixed two vertical pillars which can be easily dismantled. A circular platen of 150 mm dia is fixed to the lead screw and loading and unloading is effected by upward / downward movement of the lead screw using a forward / reverse switch. The cross head is adjustable at any desired height and carries an adaptor for Proving Ring. An adjustable dial gauge bracket is provided on one of the pillars. The rate of strain is constant 1.25 mm/min. Operates on 230 volts A.C

We are a name of repute in manufacturing and supplying Load Frames of superior quality at reasonable rates. The Load Frames we export are available in two models. LOAD FRAME MOTORISED CAPACITY 50KN HAVING 8 SPEEDS FeaturesTwo Pillar typeDetachable FrameEnclosed Motor and Gear SystemIndicatorSpeed ChartUseful in Triaxial and C.B.R. testComponentsCabinet which housed the electrical motorReduction gear the loading is done by the upward movement of the lower plate which is firmly fixed to the lead screw. When the lever is set in the neutral position , it isolate the lead screw from the rest of the drive mechanism, and the lead screw ca n then be manually moved up or down by operating the handle.A main switch, an indicator and a forward reverse switch are fixed on the unit.A relay is fitted inside the cabinets that in case of power failure, the unit will not restart of its own on the resumption of power, unless the switches are operatedThe adjustable cross head can be set at any desired position or height over the two pillars and secured in position by tightening the adjustment nut. It has a hexagonal adaptor.Its rates of strain are 0.0 2 5mm. /min, 0 .0 5mm/min , 0 .0 5mm/min , 0.0 6 2 5 , 0 .1 2 5mm/min , 0 .0 2 5mm. /min , 0 . 0 2 5mm. /min , 0 . 5mm/min, 0 . 6 2 5mm. /min and 1.2 5mm. /min.Suitable forOperation on 230 volts,5 0 cycles , single phase ,A.C. supply LOAD FRAME MOTORIZED CAPACITY 50KN WITH 3 RATES OF STRAIN. Technical detailsTwo pillar typeDetectable frameEnclosed motor and gear systemIndicatorUseful tri-axial and C.B.R testElectrical motorReduction gearAdjustable crossheadMain switch, forward reverse and reverse switch fixed on the unitRelay is fitted for power back-upHexagonal proving ring adaptorRate of strain are 2 .5mm./min, 1.5mm/min and 1.2 5mm. /minUsed inConstruction industryChemical industrySoil-testing purpose

Load Frames are Loading devices employed for application of compression and penetration loads required for various tests, such as Unconfined Compression Test, Triaxial Shear Test, California Bearing Ratio Test etc. The load application is effected by advancement of a lead screw secured against rotation by a sliding key and is measured with a Proving ring or Load Cell. Aimil manufactures a wide variety of Electro Mechanical to Microprocessor Load Frames with different designs of frame structure, modes of operation (manual or electrically driven), loading capacities, speeds of travel, so that appropriate selection is possible to meet the requirements of standard methods used for various tests to cover different soil types and sizes of specimens.

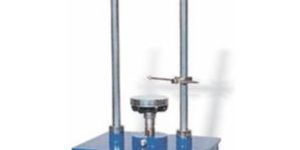

Product Code: EKE 062   Load Frame, Motorised 3 speeds, 50 kN (5,000 kgf)   Portable, light weight and sturdy Can be used in the field and mobile laboratory Useful for CBR and Triaxial Tests Two pillar type Light weight and Sturdy in construction Ideal for using in mobile laboratory also. This load frame is designed for conducting unconfined, triaxial, CBR and other routine tests.Loading system comprises of a screw jack with a detachable handle. The lower platen moves up and down. The top bracket is adjustable for vertical clearance and has an adaptor for connecting standard proving rings or load cells. A dial gauge mounting bracket is provided on one of the two pillars. Rate of strain: 3 (1.25, 1.50, 2.50 mm/ min.) Suitable for operation on 220 V, 50 Hz, single phase, AC supply.

Load frames are extensively used for application of compression and penetration loads required for various tests. Load frames are available in different frame structures, mode of operation, loading capacities.

Load Frame which we make available is the best in the industry. Our Load Frame is motorised and is electrically operated. A commendable feature of our Load Frame is its capacity of 5 Ton. This makes it best suitable for C.B.R and triaxial shear testing on soils. Load Frame is composed of a cabinet. Functioning Of Load Frame Loading is practiced with an upward movement of lower platenOn setting the lever in the neutral position, Load Frame automatically isolates the lead screw from other drive mechanism

Load Frames are used to apply load on the test specimen. The capacity and speed depends on the requirement of a particular test. Load Frames are used in C.B.R. Triaxial, Unconfined Compression Test etc.The Unit is designed for a maximum load of 5000 kg. and consists of a two speed screw jack mounted in a frame with identical top and base channel pieces so that the unit can be placed either way up and the device can be used for loading from above or from below whichever is convenient. This is a floor model.
