M/s Yash International Okhla, Delhi

YASH INDUSTRIAL VACUUM GAUGE (HEAVY DUTY VERSION) - (YVG) Technical Specification - STANDARD VERSION Accuracy ±1% of FSD Operating Pressure 75 % of the Scale Value Over pressure limit 30% of F.S. Case & Bezel Die-cast aluminum weather proof stove enamel black finished case & bezel to ensure IP-55 as per IS-2147 suitable for use outdoor application without any additional protection. Dial & Scale Dial will be made of suitable material black figure on white background with anti-corrosive finished scale and marking over an arc of 2700 confirming to BS-5235 non �reflective and marking as per IS-3602. Joints Tig Argon Arc Welding Bourdon AISI 316 SS Socket AISI 304 SS Movement AISI 304 SS Pressure Element Bourdon Tube Range Any Pointer Aluminum, black coloured, Zero adjustable Window Plain / Toughened Glass Thread Connection 1/2" BSP / NPT M Mounting Bottom Application: ANY TYPE OF INDUSTRY ESPECIALLY CHEMICAL / PHARMACEUTICAL INDUSTRIES

High concentrated gauge for gauging applications with high pressure & viscous liquids where no leakage has to be maintained. Export quality industrial purpose Applied industries: Petrochemical, Power, Chemical / Pharmaceutical Industries

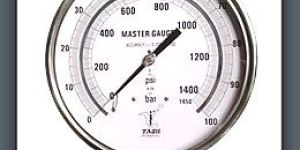

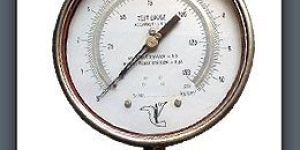

High accuracy 0.50% FSD gauge for testing & calibration applications - completely made of High quality AISI 316 internals for gauging pressure & vacuum measurement. Tested against Dead weight testers & supplied along with calibration certificate. Export quality industrial purposeApplied industries : CALIBRATION / TESTING IN LABORATORY, FITS AT VARIOUS PROCESS INDUSTRIES

YASH MERCURY FILLED TEMPERATURE GAUGE WITH CAPILLARY� (YETG) Technical Specification -STANDARD VERSION: 100mm MFG Standard ASME B40 Accuracy ±1 % of FSD Over limit temperature 15% of full scale range or 600°C whichever is min Scales °C (standard), °F, Dual Scale °C/°F Construction Housing Cylindrical Open Front Case & Ring AISI 304 SS, Snap Action Bayonet type Zero Adjustment Micro Zero Adjustable Joints Tic Argon Arc Welding Process Connection AISI 316 SS Stem & Shaft AISI 316 SS Capillary 3 way micro bore SS 304 Capillary Pressure element Mercury liquid Protection IP 65, Accuracy Class 1 as per EN13190 Dial Aluminum, black graduation on white background Pointer Aluminum, black coloured Thread Connection 1/2" BSP M Mounting Bottom Window Plain Glass

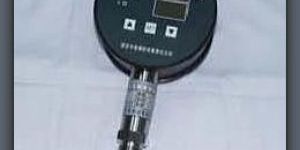

High reliability and stability; Sealed structure with entire stainless steel; Intellectualized, self-calibrate zero value, self-calibration, self-correction, self-test, self-select two way communication. LED display real-time pressure and system state, Offer 1 to 5 line pressure control contact. Applied industries: Petrochemical, Power, Energy, water supply system, Thermal, Refineries, Beverages, Chemical / Pharmaceutical Industries

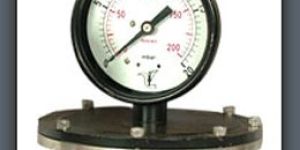

Schaffer’s Diaphragm type gauge with sealed unit of bottom chamber of AISI 316 diaphragm are used for gauging of highly aggressive & viscous liquid pressure. Applied industries : Petrochemical, Power, Energy, Thermal, Chemical / Pharmaceutical Industries

Safety valve provides protection from over-pressure in steam, gas, air and liquid lines. The valve "lets off steam" when safe pressures are exceeded, then closed again when pressure drops to a preset level.

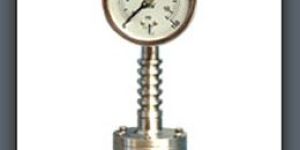

Diaphragm sealed gauge with Top & Bottom sealed unit made of AISI 316 Diaphragm. This gauge gives way to measure pressure when viscous liquid gets stuck & allows resistance for highly aggressive liquids in paper & pulp applications Applied industries : Paper & Pulp industries, Chemical / Pharmaceutical Industries

We offer pressure transmitter. used for measure flow and level, high accuracy, high reliability; single port or double ports; measure the pressure difference of liquid in two places.

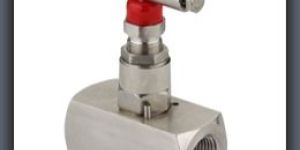

We are offering needle valve. Needle valves come in bar stock as well as in forged construction various sizes, sealing styles, end connections and stem types. Main feature of needle valves is that its stems are interchangeable with any of its valves of the similar configurations thus resulting in low cost and less inventory

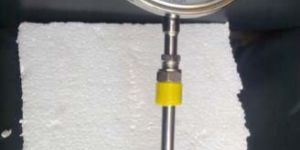

One of the most versatile & widely used devices for gauging temperature applications. With mercury gas in element & entire internal assembly of aisi 316 giving accurate 1% fsd accuracy in â°câ°f. Heavy duty all ss export quality industrial temperature gauge

High accuracy 0.25% FSD gauge for testing & calibration applications - completely made of High quality AISI 316 internals for gauging pressure & vacuum measurement. Tested against Dead weight testers & supplied along with calibration certificate. Export quality industrial purposeApplied industries: CALIBRATION / TESTING IN LABORATORY, FITS AT VARIOUS PROCESS INDUSTRIES

Case & Ring : AISI 304 SS (BAYONET LOCK TYPE)

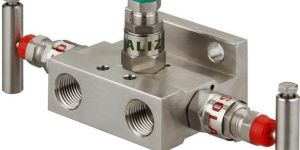

Manifolds valves are designed for remote or separate mounting. Connecting system impulse lines and transmitters, having 2/3/5/multi valves configuration which allows for easy block or Isolate, valve calibration of a static pressure transmitter or gauge.

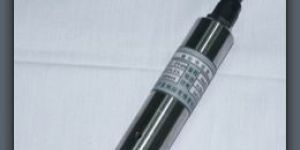

we are offering liquid pressure transmitter. oil proof, waterproof, wearable, high reliability and stability; sealed structure with entire stainless steel; protection from reversed polarity and excess voltage; capable of lightning strike, over-loading and shock.

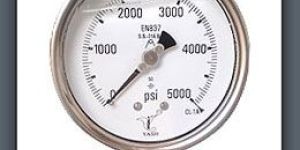

Liquid filled complete heavy duty Stainless steel gauge with internals of AISI SS316 as per safety pattern standard of EN 837 used for regular & frequent gauging of high required pressure & vacuum measurement. Export quality industrial purpose with heavy dial physical thicknessApplied industries : Food, Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries.

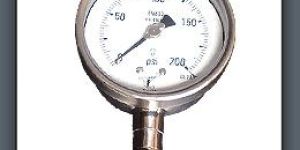

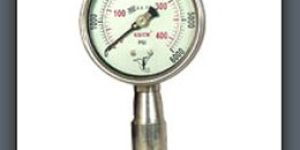

High concentrated gauge for gauging applications with high pressure & viscous liquids where no leakage has to be maintained. Liquid filled Export quality industrial purpose Applied industries : Pharmaceutical, Plastic & Paper, Chemical, Dairy, Milk Industries

Technical Specifications:  Size Range: 50NB – 300NB  Range: ½” to 24”  Trims: stellited, 316, 304, Monel, Ali bronze, duplex  Pressure Rating : ANSI - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#  Standard: Generally conforming to BS 5352 End Connection  End Connections: Screwed Ends to BSP BSPT NPT (F) Socket Weld Ends to ANSI B 16.11 Inspection  Type: OS & Y, Bolted Pressure Seal bonnet  Gasket& Packing: Optional PTFE Graphite Asbestos Spiral wound Ring joint  Disc: Swivel - Flat Taper Control Parabolic  Seat: Integral Renewable Seal welded  Material: SS 316 SS 316 LSS 304 CS or any special material  Operation: Hand wheel Manual gear Electric motor Actuator - Smooth, Easy, Low-Torque, Long life  Quality: Highest standard in Visual, Materials, Dimensional Accuracy, Operation, Leak-tightness  Testing: Each valve is 100% tested to ensure leak-tightness at Shell, Seat and Gland  Application Industries: Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers

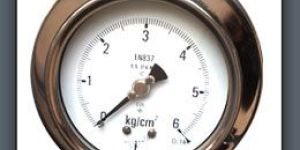

High class complete heavy duty Stainless steel gauge with internals of AISI SS316 as per safety pattern standard of EN 837 used for regular & frequent gauging of pressure & vacuum measurement. Export quality industrial gauge with heavy dial physical thickness.Applied industries : Food, Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Beverages, Chemical / Pharmaceutical Industries.

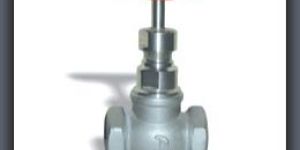

Globe valve is used for single direction flow control and is also efficient for throttling services. These valves are designed for least possible obstruction to free flow.

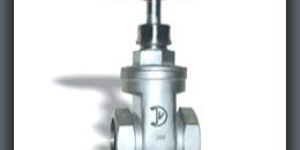

Gate valves are designed to provide minimum turbulence & resistance to flow when in fully open position. These gate valves ensure accurate control & alignment of wedge while operating.

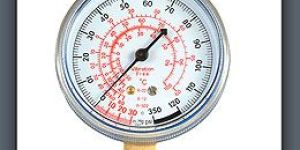

Available in complete SS internals for measurement of concentric temperature scales for R-12, R-22, R-502, R-134A, R-404A applications. Utility gauge for commercial & industrial use, as per customer requirement Applied industries: Refrigeration, Ice-Plants, Chilling Plants, Cold Storages

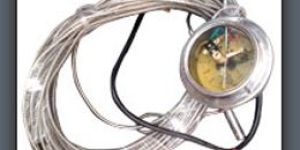

Electric contact thermometers are made of bulb, transmitting capillary and flat bourdon tube that are pressure filled with Mercury. Contacts mounted on mechanical pressure Gauges -“Make or Break” an electronic control cycle depending on the position of the Instrument's pointer. It is an economical, rugged, reliable and precise temperature measuring instruments. These gauges can be used for different monitoring, measurement and control of line pressure by switching “on or off” electrical equipment. It is one of the most versatile and widely used devices in industrial temperature measurements Applied industries : Petrochemical, Power, Energy, Thermal, Chemical & Petrochemical, Plastic & paper, Air conditioning Food and beverages

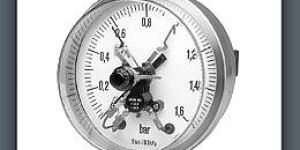

We offer electric contact gauges.used for control of pressure audible visible alarms. Choice of low action normal contact, snap action magnetic contact or inductive contact, adjustable with different mode of switching action

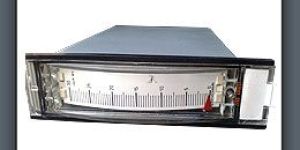

Range of draught gauges starts from Min 0-50 (-25 to +25) MMWC Applied industries : Vacuum Applications, Gas Flow, CNG / LPG Gas Lines, Burner monitoring, Gas production, Medical Applications
