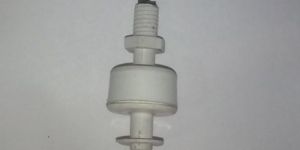

Magnetic Float Sensor Dealers in Delhi

• Frequency: 50HZ
• Contact Rating: 10 W
• Switching cycles: 0.5 x10 6
• Switching Voltage: 100 VDC
• Switching Current: 0.5 Amp DC
• Wire Length: 2 Meters

Our company is engaged in offer a wide array of products one of which is Magnetic float sensor. To easily organize and stack the entire lot of products in our warehouse, we have installed an automated warehousing system. It is supervised by our warehousing experts.

• Type: Float Sensor
• Color: White
• Condition: New
• Country of Origin: India
• Color: White

  Introduction: a float sensor is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices. The magnetic float sensor is an electromagnetic on/off switch. It helps to sense the level of water present in the overhead tank or sump. These sensors have a permanent magnet in the float. The switch is present in the white stem of the sensor. As the float rises or falls with the level of water in the tank, the switch gets activated by the magnet in the float, thereby the signal which is obtained from the sensors is used along with the water level controllers for controlling the motor pump.

• PE-101VS (Bend): CE Approved
• Switching Capacity------------10 Watt / 25VA: Switching Current--------------0.5/1.0 Amp
• Switching Voltage--------------200 VDC: Pressure -------------------------10-15 Bars

Parasnath electronics is one of the leading manufacturer supplier and exporter of different types of proximity switches such as inductivephoto-electricmagneticcapacitiveldr type, float switches, flow switches, magnetic door contact for security systems, signal isolators and smps (switching mode power supplies) etc. We also mfg. Control pcb card and its sensors for the vehicle tracking for petrol & diesel trucks etc. we are mfg. Of all types of sensors -inductive, magnetic,intrinsically safe,photo electric,capacitive,ldr type,float,flow switches, smps, relay cards. product specification:-magnetic float switches level sensors 1. type : vertical (upper & lower level) horizontal 2. output logic : no nc no+nc 3. sensing : 1 set, 2 set & multi set points 4. material : plastic & stainless steel (ss 304 & 316 ) 5. approvals : ce

• Material: PP & Stainless Steel
• Set points: 1
• Output: SPST, C NO or NC
• Process Connection: Thread, M16, ½” NPT

For the safe storage of the entire lot, we have installed our own facility that is laced with all the modern amenities for complete quality satisfaction. From marketplaces of Delhi(India) to all the others, our organization is capable of providing the product to purchasers as per requirement.

• Type: Magnetic Float Sensor
• Certification: CE Certified, ISO 9001:2008
• Application: For Water Level Controller
• Color: White
• Frequency: 50Hz
• Driven Type: Electric
• Automation Grade: Automatic
• Material: Plastic

Float Sensor is an electrical ONOFF Switch, which operates automatically when liquid level goes up or down with respect to specified level. The Signal thus available from the Float Sensor can be utilized for control of a Motor Pump or an allied electrical element like Solenoid, Lamps, and Relays etc. Float Sensors contain hermetical sealed Reed Switch in the stem and a permanent Magnet in the Float. As the Float rises or falls with the level of liquid the Reed Switch is activated by Magnet in the Float. Hamilton Float Sensors are available in wide range according to operation material mounting methods to suit variety of individual application. These Float sensors are rugged, accurate and reliable in operation.
