Mahajan & Company Ajmeri Gate, Delhi

Application : Machinery

Country of Origin : Made in India

Voltage : 440 V

Phase : Three Phase

APPLICATIONS   SNU-UD & SNU OD Material Handling Equipment, Plastic industries, Sugar mills, paper mills, Concrete mixers, Road Rollers. SNV Mixing liquids, chemicals of variable densities, foundry equipment, textile industries, plate cutting & bendsaw machines, wire drawing machines. SSM Inclined belt conveyors, cranes, bottling plants, plastic extrusions, food industries and pouch making.

PBL Helical Inline Gear Reducers have co-axial input and output shafts and an input shaft can be driven by any prime mover. Helical Inline Gear Reducers are available in foot, flange, foot cum flange and hub type construction

TYPE CD :CDR : CDRP : CDRS :CDIR :CD/CDR - R + ED Without delayed filling chamberWith delayed filling chamberWith extended delayed filling chamberWith extended delayed filling chamber & controlled nozzleReversed coupling with delayed filling chamberFluid coupling with gear coupling (Radially removable) SIZES 185 to 760   RATIO 1.5 to 950 kW at 1450 RPM

Speed : 2500 rpm

Packaging Type : Corrugated Box

Material : Mild Steel

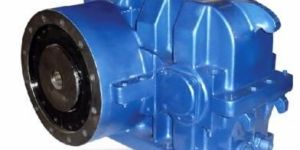

The Elecon extruder gear modular series, consists of a combination of Gear units (of different size and ratios of the EP Series series) and flanged axial bearing housing for the take-up of axial self-aligning roller bearings of different load capacities.

Material : Cast Iron

Frequency : 50/60 Hz

Voltage : 240 V

Packaging Type : Corrugated Box

PBL manufactures electromechanical as well as electronic microprocessor based weighing and bagging machines for high speed automatic weighing and bagging of variety of materials such as fertilizers, food grains, sugar, cattle feed, PVC granules, cereals, coal, coke, chemical powder, flour, flakes, soda ash, etc.   Machines are designed and manufactured adopting the latest technological developments in the field of accurate weighing. The weighing and bagging machines are available in different models like gravity/belt/screw feeder or vibrating feeder tray. These machines are available as a net or gross model, in mild steel or stainless steel construction. Electronic type microprocessor based automatic weighing & bagging machines incorporating highly accurate strain gauge load cells and latest state-of-the-art fully digital microprocessor controller are available for capacity upto 900 bags/hour with an accuracy of ± 50 gms or better over a range of 25 kgs to 100 kgs as well as jumbo bags of 1 tonne. SALIENT FEATURES - Powerful 16 bit processor is used for electronic bagging machines. Different models available depending upon the flow characteristic of the material. Fully digital calibration and parameter set up per interactive dialogues for different weighing RS485 serial channel for printer, data output, serial communication. Parallel I/O interface with inputs and outputs, which can drive the magnetic valves directly. Operation and display terminal suitable for panel mounting or table top. Material flows after flow compensation for coarse and fine cut off. Thus the filling accuracy is independent of material density. Auto check stop feature available to check and remove the bags which are out of tolerance. ACCURACY - Accuracy ranges from ± 20 grams to 100 grams depending upon material flow characteristics and bagging speed.

ELIGN Gear coupling consists of hubs with multi crowned teeth at Flank, tip and teeth. ELIGN Gear coupling is a simple, compact and light unit for transmitting the same power when compared to the couplings of similar capacity available in the market. It is manufactured out of tested quality forged carbon steel and passes through a number of quality checks. Elign couplings are manufactured as per AGMA standard. Each half of the coupling is interchangable with any of the other half, of same size of Coupling.   TYPE ED - With double housingER - With one end rigid ET - With spacer EV - For vertical applicationES - With single housing SIZES 130 to 110000 da N.m. RATIO 0.136 to 115.19 kW per RPM
