Matchwell Machine Tools Mayapuri, Delhi

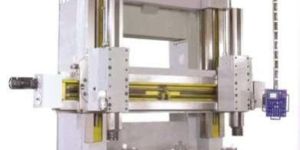

We are a chief Manufacturer, Exporter, Importer, and Supplier of Vertical Turning Lathe Machine. We also offer customization of Vertical Turning Lathe Machines as per the client̢۪s requirement. Our machines are available in different models to suit the needs of our customer̢۪s specification. Features Suitable for internal & external turning, internal & external tapering, facing, slotting etcHigh centering accuracyBig Loading CapacitySmall DeformationConfiguration of spindle driver and feed system can be interchangeable with general type and CNC type

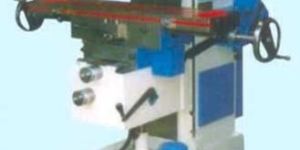

We offer highly effectual Universal Milling Machines which are of superior quality and are available at affordable prices. We also provide customization of our Universal Milling Machines as per the customer̢۪s requirement.

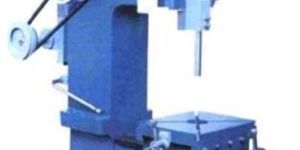

We are among the largest Manufacturers, Exporters, Importers and Suppliers of Slotting Machines. The Slotting Machines manufactured by us use high grade raw materials. Our Slotting Machines are designed using latest technology and incorporate the latest features available in the market.

Specifications ItemsTechnology specificationsUnitCX3660S CNC Lathe Slant Bed 45oCapacityMax. Swing Dia. Over Bedmmφ 360Max. Swing Dia. Over Slide mmφ 80Max. Through swing Dia. Of Barmmφ 20/30/38Max. machining length mm230Threat range: Metric/inchmm/TPI0.25-100/100-4SpindleFrequency conversionr/min50-5000 / 50-3000 / 50-2000Spindle Boremmφ 32/38/48Taper of spindleo45oTube Boremmφ 26/38/48Power of spindle motorkwFrequency conversion (3Ph 3 Kw), 3.7kw inveClamping Device-Std: Pneumatic spring Collet. Opt: Manual, Pneumatic Hydraulic Chuck.X/Z AxesTravel of X/Z AxesMm300 / 200Feeding speed of X/Z Axesm/min10-15Power of X/Z Axes feeding motornm4 AC Servo motorMin. setting unit of X/Z AxesMm0.001Tool TurretType of tool post-Std : Gang tool Carriage Opt : 4,6,8 Station Electronic Tool TurretNo. of tools PC1 - 8 (gang tool carriage) / (4,6,8 station electronic tool turret)Size of tool shankMm16x16 or 20x20OtherLubrication oil pump-Provided Power of coolant pump motor W90Overall dimensionMm1420(L)*1000(W)*1550(H)Net weightkg1100CNC System-GSK, Siemens, Fanuc Note : Designs are constantly changing and we reserve the right to modify these specifications without any notice.

We serve flawless Manufacturing, Exporting, Importing and Supplying a comprehensive range of Radial Drilling Machine. Our Radial Drilling Machines are highly durable and functional. All the raw materials used in the manufacturing of our Radial Drilling Machines are of high quality and heat treated to gain best possible durability. Our clients can avail these machines in different sizes, models as per their requirements. Features Safe & ReliableEasy to operate Main parts are made by machine center which import from KIA with high precision & efficiencyHigh Quality of Spindle Parts UsedHeat Treated DurabilityLow Noise

Specifications Maximum turning diameter 250mm Maximum work piece length 550mm Spindle hole 20mm Spindle taper MT3 Tailstock taper MT2 Z – axis travel 110mm X – axis travel 250mm Spindle Speed 120-2000rpm Motor output 0.55KW Motor output 220V N.W./G.W. 145/180kg Dimension L*W*H 1230*680*450mm3 Thread Range  Metric models (P) 0.4-3mm 12grade British models (P) 10-44/in 8grade Note : Designs are constantly changing and we reserve the right to modify these specifications without any notice.

Specifications Maximum turning diameter 210mm Maximum work piece length 400mm Spindle hole 18mm Spindle taper MT3 Tailstock taper MT2 Z – axis travel 80mm X – axis travel 250mm Spindle Speed 50-2250rpm Motor output 0.55KW Motor output 220V N.W./G.W. 115/160kg Dimension L*W*H 1100*550*450mm3 Thread Range  Metric models (P) N/A British models (P) N/A Note : Designs are constantly changing and we reserve the right to modify these specifications without any notice.

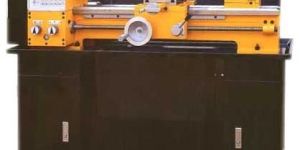

We are a prominent Manufacturer, Exporter, Importer and Supplier of Educational Lathe Machines. Our Educational Lathe Machines are available in different models varying in sizes and process. All the raw materials used in the production process of our Educational Lathe Machines are of unmatched quality. Features Durable High Performance Unmatched Quality Economical Prices

We are a prominent Manufacturer, Exporter, Importer and Supplier of Educational Lathe Machines. Our Educational Lathe Machines are available in different models varying in sizes and process. All the raw materials used in the production process of our Educational Lathe Machines are of unmatched quality. Features Durable High Performance Unmatched Quality Economical Prices

We are among the most trusted Manufacturers, Exporters, Importers and Suppliers of providing a comprehensive range of Metal Cutting Bandsaw Machine. We offer customization of these machines as per the customer̢۪s requirement. These machines are widely preferred in the markets. Our Metal Cutting Bandsaw Machines are user friendly and can be operated without any hassle. Our Band Saw Machines are stringently checked on quality that insures their flawless dimensional finish and long working life. Features DurableSuperior QualityUser FriendlyEasy to operateHassle FreeFlawless Dimensional Finish

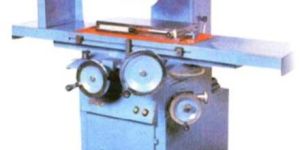

We are the largest Manufacturer, Exporter, Importer and Supplier of high quality Mechanical Surface Grinders. We also offer customization of our Mechanical Surface Grinders as per the client̢۪s requirement. Features Superior QualityDurableEasy to OperateLong Working LifeLow on Maintenance

We are a prominent Manufacturing, Importing, Exporting and Supplying a comprehensive range of high quality Hydraulic Surface Grinders. We also provide customization of our Hydraulic Surface Grinders to meet the needs of our customers. Features Bed is of unique bed type design in which the table and the upright are aligned exactly at right anglesSaddle is guided on ground v-ways resting for high precession and smooth operationsWheel head is mounted on a constructed vertically column supported by pre-loaded precision bearingsOther size available : 500 x 1000, 500 x 1500, 600 x 1200, 600 x 1500

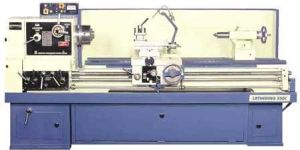

Matchwell Machine Tools is a renowned Manufacturer, Exporter, Importer and Supplier of providing a comprehensive range of High Speed Lathe Machine. The raw materials used in the manufacturing of our High Speed Lathe Machines are of superior quality and delivers high performance.

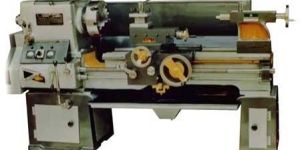

We are a renowned Manufacturer, Exporter, Supplier and Importer of Heavy Duty Precision Lathe Machine. We also provide customization of these machines as per the market̢۪s requirement. The raw materials used in the manufacturing of all these machines are of matchless quality. Features Meticulous care is taken in selecting raw materialsDesigned to provide maximum output economically with low capital outlayDesigned for simple operation & rapid change over Highly Efficient GuardingAll parts are checked & tested by precise instruments before assembling

Specifications ItemsTechnology specificationsUnitCX3640 CNC LatheFlat BedCapacityMax. Swing Dia. Over Bedmmφ 320Max. Swing Dia. Over Slide mmφ 80Max. Through swing Dia. Of Barmmφ 20/30/38Max. machining length mm230Threat range: Metric/inchmm/TPI0.25-100/100-4SpindleFrequency conversionr/min50-5000 / 50-3000 / 50-2000Spindle Boremmφ 26/38/48Taper of spindleo45oTube Boremmφ 26/38/48Power of spindle motorkwFrequency conversion (3Ph 3 Kw), 3.7kw inveClamping Device-Std: Pneumatic spring Collet. Opt: Manual, Pneumatic Hydraulic Chuck.X/Z AxesTravel of X/Z AxesMm280 / 200Feeding speed of X/Z Axesm/min10-15Power of X/Z Axes feeding motornm4 AC Servo motorMin. setting unit of X/Z AxesMm0.001Tool TurretType of tool post-Std : Gang tool Carriage Opt : 4,6,8 Station Electronic Tool TurretNo. of tools PC1 - 8 (gang tool carriage) / (4,6,8 station electronic tool turret)Size of tool shankMm16x16 or 20x20OtherLubrication oil pump-Provided Power of coolant pump motor W90Overall dimensionMm1550(L)*960(W)*148Net weightkg900CNC System-GSK, Siemens, Fanuc Note : Designs are constantly changing and we reserve the right to modify these specifications without any notice.

Middle Position Setting Ball Screw, Machining Class: Precise Class, Precision: 0.01mm, Min. Setting Unit: 0.001mm, Guideway Forged by Cast Iron, Z Axes Slide Board adopt Plastic Sticked Technology ,Guideway was Grinded by Special Guide Way Grinding Machine , X.Z Axes Feeding Motor connect with Ball Screw directly( not through Strap)

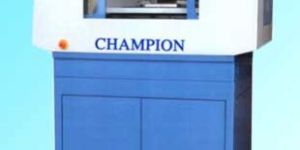

We are a renowned Manufacturer, Supplier, Exporter and Importer of CNC Milling Machines. Our CNC Milling Machines have programming supported by cycles and contours. Features Variable speedHigh concentricity precision due to taper roller bearingsLinear Motion / Dovetail, slide ways, provides for highest stability and optimum precisionAutomatic cycle̢۪s modePrice-efficient and stable valueCan be learned in short timeRapid, simple setting up of the tools and work pieceProgramming supported by cycles and contoursSimple drive link-up with step-by-step techniqueComplete unit with little dimensions

Robust & heavily ribbed V-gap Bed is made of close grain ultra Hanrdened & Gound Bed, accurately, Machined guideway to withstand heavy cuts. Each Bed is tested for rigidity. All gears are made of Alloy steel, Hardened & Profile Gound. Electromagnetic Break unit for stopping the main spindle.Spindle made of special alloy steel with taper nose mounted on two opposed Anti-friction Tapper Roller Bearing.

Matchwell Machine Tools is the prominent Manufacturer, Supplier, Importer and Exporter of All Geared Precision Lathe Machines. The raw materials used in the manufacturing of our All Geared Precision Lathe Machines are of high quality. Features Precision Ground Designed, Superior Frequency, Superb RigidityThe spindle system is high in rigidity and accuracyOptimized Design of the main drive and the gearsLow NoiseThe machine can turn about 200 kinds or metric, whit worth, model and D.P. ThreadsNo need for changing gearsAn automatic stopping device is used, which is safe and reliableA pedal breaking device providing quick and effective stop while operating

We are recognized as one of the chief Manufacturers, Exporters, Importers and Suppliers of Hacksaw Machines. Our Hacksaw Machines are high on demand are used in many industries. The Hacksaw Machine we offer is very effective in performing a series of cutting operations and is easy to operate. Our Hacksaw Machine is available in different sizes, models as per the market̢۪s requirement.

We are recognized as one of the chief Manufacturers, Exporters, Importers and Suppliers of Hacksaw Machines. Our Hacksaw Machines are high on demand are used in many industries. The Hacksaw Machine we offer is very effective in performing a series of cutting operations and is easy to operate. Our Hacksaw Machine is available in different sizes, models as per the market̢۪s requirement.
