Melting Point Apparatus Dealers in Laxmi Nagar, Delhi

• Voltage: 220 V
• Frequency: 50-60 Hz
• Brand: Precious Techno Engineering
• Display Type: Digital
• Operation Grade: Automatic
• Material: Stainless Steel
• Power Source: Electric

• Temperature Range: 5 º C above ambient to 300ºC
• Brand Name: Aarkeylab
• Display: 16 x 2 Line Backlit LCD Display
• Power supply: 230 Volt ± 10% , 50 Hz
• Usage/Application: Melting and Boiling Point
• Material: Plastic
• Automation Type: Automatic

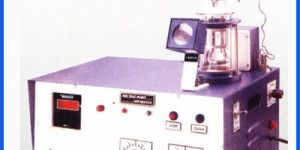

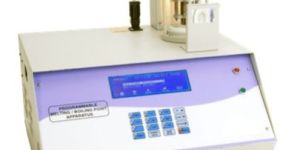

This apparatus is designed to determine the melting points of solids or boiling points of liquids, with high accuracy. It is supplied with a silicon oil bath with heater the bath. It incorporates a microprocessor based circuitry and key to set the desired program for heating the bath. On pressing the START button, the instrument automatically executes the total program. The temp. Of bath rises fast in the beginning and is automatically controlled in suitable step and adjusts the final rate of heating at 1 °C/Min, towards the melting point. The sample is filled in capillaries and is suspended in the silicon bath through its Teflon cover. The temperature of bath is maintained uniform by a magnetic stirrer. Microprocessor-based circuitry, automatically controls ‘Rates of Heating’ in steps with audio signal Facility for determination of melting range of substances Silicon bath with built-in magnetic stirrer and highly sensitive PT-100 temperature sensor for accurate estimation of melting & boiling Points   Features Built in magnetic stirrer with soft touch key speed controller Simultaneous display of melting range as MP1 & MP2 Automatic temperature compensation depending upon heating requirement Facility to enter expected melting point by using soft touch keypad Push button key to prevent contact problem On-site temperature calibration by calibrated thermometer Input : electrode connector Power supply : 230 volt ± 10%, 50 Hz Display > 16 x 2 line backlit LCD display Temperature range > +5°C above ambient to 300 °C Readability > 1.0°C Temperature Accuracy > ±1.0°C,±10°C above ambient to 300°C
