Molding Machine Dealers in Mundka, Delhi

• Brand Name: BSM
• Driven Type: Hydraulic
• Condition: New
• Automatic Grade: Fully Automatic
• Production Capacity: 800-1000 Pairs/ 8 hours
• Type: Shoe Making Machines
• Warranty: 1year
• Weight: 500-1000kg
• After-Sales Service Provided: Yes

The Counter Moulding Machine is an innovative and versatile tool for molding the back part of footwear. It features adjustable lasts, automatic temperature regulation, projection lamp, and an environmental freezing system, ensuring precise and consistent results for various types of footwears. Hot and Cold System: The machine's advanced hot and cold system enables the molding of any type of counter stiffener, ensuring versatility and flexibility in the production process. Adjustable Lasts: The adjustable lasts can be tilted, providing ease of operation and allowing for precise and customized molding of different footwear designs. Automatic Temperature Regulation: The Counter Moulding Machine comes equipped with automatic temperature regulation for both inner and outer molds. This feature ensures optimal molding conditions for various materials, resulting in superior end products. Projection Lamp: The built-in projection lamp assists operators in achieving accurate and precise molding positions, enhancing the efficiency and effectiveness of the process. Environmental Freezing System: The cooling mold incorporates an environmental freezing system that can reach temperatures as low as -30 degrees Celsius, ensuring efficient and effective cooling of the molded parts. Adjustable Pressure and Timing: The machine allows for easy adjustment of pressure and timing, accommodating different types of footwear products and specific molding requirements. Model No.BS-516 Dimension 890 x 1480 x 2000mm Weight 600 Kg Voltage 220V/50HZ Power 2.7 kW Air Pressure 0.6 Mpa Capacity (Pairs/8hr) 1500

technical specifications type four nos. Heavy duty fabricated columns type press with down stroking ram movement. capacity of the main ram 250 tons (1 no. Main cylinder + 2 nos. Double acting type jacking cylinders for fast approach & fast return speed. pull back force 20 tons moving platen guides phosphorous bronze liners specially designed gib guiding arrangement at four corners of the slide with lubrication arrangement. piston size (bore size) main rams 400 mm - approx ram movements downstroking day light 1100 mm stroke length of main cylinder 80 tons stroke length of blank holder cylinders: 800 mm shut height 300 mm platen size 1400 mm (left to right) x 1000mm (front to back) mould mounting situation t - slots (t-20) - straight slots at equal distance slide or mold closing & opening speeds fast approach speed 130 - 150 mm/sec pressing speed 6 to 8 mm/sec. slow mold opening speed 15 � 20 mm/sec. fast return speed 160 mm/sec. bottom ejector cylinder force of ejector 10 tons (approx.) bore diameter 100 mm stroke length 200 mm upward speed 40 mm/sec. downward speed 50 mm/sec. bottom plate ejection hole 50 mm. position of ejector rod end 50 mm below the plate level general electric motor 20 h.p (main ). , 3f, 1440 r.p.m, 415v, abb make pump fixed displacement double pump for high & low speeds & pressure plc omron / siemens make plc with touch screen display (mmi) for user -friendly operation.   click here to get best offer for this m/c qty. Available in ready stock :- 1 nos.

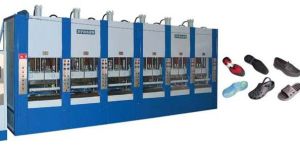

Extra large design of die holder can produce 4 pairsstation in the same time, which increasing the productivity a lot. The erro between tow mold can be automatic compensated. The injection oil hydraulic system adopts the proportional flow, pressure control valve. The injection part controlled by 5-stage PID, can achieve the setting temperature fast and steadily to insure the high quality of finished products. It adopts the function of auto diagnosis and maintain to operate the monitor system and insure you know the machine's working condition. Machine is controlled by the touch screen PLC.

• Platen Size: 1000 x 1000 mm
• Make: SANTEC (Indian Origin)
• Status: New
• Capacity: 250 Tons
• Application: SMC / DMC / Bekallite / FRP / Urea / Melamine molded parts
• Construction: Heavy duty inside tie rod design (As per JIS Grade)
• Daylight: 1000 mm
• Stroke Length: 710 mm
• Shut Height: 290 mm
• Electric Motor: 20 H.P., 3 phase, ABB make
• Bottom ejector capacity: 10 tons
• Operation: Omron make PLC with coloured touch screen
• Heating for mould: 2 Nos. PID Temp. Controllers are provided for mould heating.
• Dimensions: 2400 mm (L) x 2800 (W) x 4500 mm (H)
• Approx weight: 16 – 17 Tons

We are offering rubber molding presses. Retreading is most reliable, safe and cost-effective way to breathe new life into worn tyres. The “worn-out” tread of the tyre is buffed away and replaced with brand new rubber tread which is applied to the bare “casing”. This process is widely used in large-scale operations such as trucking, bussing and commercial aviation. Santec's precured tread rubber molding press are the most environmental friendly way of recycling used tires. Some of the basic requirements for retreading of tyres are:

We are the leading manufacturer and exporter of Hydraulic Compression Moulding Presses. Backed by team of skilled professionals, we are successfully fabricating most efficient compression molding presses with four-pillar type construction. These provide perfect guiding of moving bolster for achieving better performance. Further, these molding presses have compact design, single body as well as easy operating systems. Other than this, its features include long slide guide with lubrication system for better accuracy. This makes the press suitable for molding of urea, rubber fiber, melamine etc. Our ranges of compression molding presses are available in: 4 Pillar Type Compression Molding Press Frame Type Compression Molding Press Model No. Cap ton Platen size (MM) day light Gap (MM) Stroke (MM) Bore Ram Dia (MM) Transfer CYL. CAP. (MM) Transfer Cyl.Stroke (MM) Pressure KGCM² Motor H.P FCMP 100 100 400 X 400 400 250 250 40 150 210 5 FCMP 150 150 500 X 500 500 350 300 60 200 215 7.5 FCMP 200 200 600 X 600 500 350 350 80 200 210 10 FCMP 250 250 750 X 600 500 350 400 100 250 210 10 FCMP 300 300 800 X 600 600 400 430 120 250 210 15 FCMP 400 400 900 X 750 600 400 510 160 250 210 20 FCMP 500 500 1000 X 800 600 400 560 200 250 210 25 FCMP 600 600 1200 X 900 900 500 610 240 300 210 30 FCMP 800 800 1500 X1000 1200 600 710 320 300 210 50 FCMP 1000 1000 1800 X1000 1500 800 810 400 400 210 75 FCMP 1200 1200 2000 X1200 1800 1000 860 500 450 210 100 Note: The Press Can Be Manufactured Upto 2000 Ton Capacity As per Customer Requirement The Press Can Be Designed Pillar Gate Type H-Frame Type. The Press Can Have Multi Daylights (1,2,3,4) The Press Can Be Multi Station (1,2,3,4) For Multi Station Press, Motor H.P Will Changed Accordingly

With our fast delivery network, we can easily meet expected delivery deadline of the clients. So, what are you waiting for, place orders now! Only quality packing material has been used for the packing of the products. Customers can stay rest assured for the safe delivery of the orders as our experts keep a vigil eye on the entire procedure.

Hydraulic Hot Moulding Press for Clutch Facing, Deep Draw Hydraulic Press

Our product portfolio includes pipes, couplings, socket, elbows, tees, valves, adapters, and other fittings & PVC MOULDS includes interlocking , wall tile , floor tile , cover block ,grass paver , kurb stone , khaprel &plastic moulds etc. These are available in various sizes and configurations to meet the specific requirements of our customers.

• Brand Name: KR
• Driven Type: Electric
• Color: Grey
• Condition: New
• Automatic Grade: Automatic
• Power: 220volt /380volt
• Certification: Yes
• Voltage: 220V, 380V
• Type: Automatic Engraving Machines
• Weight: 100-1000kg
• Warranty: 1year
• After-Sales Service Provided: Yes
• Country of Origin: India

• Thickness: 20-40 mm
• Shape: Square
• Brand Name: Maurya
• Material: PVC

Pet Stretch Blow Moulding Machines, Plastic Injection Moulding Machines

hydraulic compression moulding presses, hydraulic deep drawing presses

We offer auto feeding and auto ejection rubber molding press thish rubber molding press is vrey user frendly and plc controlled heating platen controlled by plc and this rubber molding press all pressure and limit controlled by plc.sonatec offer this rubber molding piller type press very lowest price.

Our wide range of Arburg Injection Molding Machine is a hydraulic machine, which is widely demanded in various plastic industries. Arburg Injection Molding Machine offered by us, is available in varied specification to meet the clients requirement. Moreover, these Injection Molding Machines are duly checked for quality at each stage of production process. Appreciated For Wide openingHigh efficiencyFully automatic designSturdy constructionLonger service lifeUsed ForInjection molding

• Brand Name: Anand
• Application: For Making High Grade Material and Cutting-edge
• Material: Metal Alloy
• Finish: Chrome
• Pack Type: Carton Box
• No of Cavity: 2

Widely used in automobile sector for moulding of various components. Available in hardness ranging from shore a 50 to shore a 70, we are capable of customizing the compounds to address customer’s divisive requirement.

blow molding, Rubber Molds, press dies, Plastic Injection Molds

Rubber Curing Hydraulic Press, PET Stretch Blowing Machine

Pvc Sole Moulds, Plastic Moulds
