Mounting Press Dealers in Delhi

• Voltage: 230 V
• Power: 1800 W
• Automation Grade: Semi-Automatic
• Brand: Mahadev Scientific
• Mould Size: 300 mm
• Phase: Single Phase
• Temperature: 0-300 deg C
• Machine die size: 3''x 2.5"

• Automatic Grade: Automatic
• Capacity: 8/10 Tons

• Power: 220 V 50 Hz
• Features: Cost-effective,Highly durable,Optimality,High performance,Seamless finish,Competitive price
• Pattern specimen: 25 mm, 30 mm, 40 mm, 50 mm
• Maximum consumption: 1800 W
• Out line dimension: 615 x 510 x 500 mm
• Weight: 100 Kg
• Cooling: Water cooling

Permanent Mounting of metallography specimen for correctpolishing results. • Helps polishing small specimens & edge retention. • Reliable hydraulic jack with pressure gauge. • Mould heater fast cooling (airwater), timer; buzzer facilities, automatic cycles. • Electronic auto auto off.

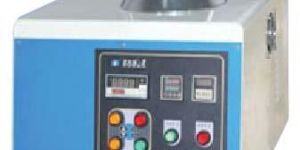

Automatic metallography specimen mounting press is a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.   Technical specifications: Diameter of specimen: Ø25mm, Ø30mm, Ø40mm, Ø50mm 2. Power supply: 220V, 50Hz 3. Max. power consumption: 1800W 4. Setting range of system pressure intensity: 0-2MPa (corresponding preparing pressure intensity: 0-72MPa) 5. Temperature setting range: 0-300 ºC 6. Heat preserving time: 0-99m99s 7. Dimensions: 615 × 510 × 500 cm 8. Net weight: 110Kg 9. Cooling method: water cooling
