National Electronics & Electrical Narela, Delhi

We have emerged as a well-known Manufacturer and Supplier of Automatic Water Level Control Panel in India. 1st time in India, Automatic Water Level Control Panel will show display IP- input volt and LOP- load output (amp.) Automatic Water Level Control Panel will save the motor in all sorts of conditions. Here are some of the   Features of Automatic Water Level Control Panel listed : If input voltage go above 265 vac it will do auto cut and voltage came back 264 vac then it will do work properly. If LOP-load output ( amp.) goes above according to motor load (load set) then it will do motor run-off ( auto cut ). It will save the motor for all purpose In water over flow system we gave 3 sensing point for control water level. 1st ground level in the water tank (lowest level of water ) 2nd medium level in the water tank (medium level of water) 3rd. Maximum level in the water tank (maximum level of water ) If water level goes down from medium water level motor will start automatically. After that water level goes to maximum level motor automatically run-off. In this product float sensor should be used.   First time in India we give maximum features in this product, such as : It will show display IP – input volt, LOP-LOAD OUTPUT (Amp). It will save the motor for all purpose. If input voltage go above to 265 vac it will do auto cut and voltage come back to 264 vac then it will do work properly. If amperes goes above motor load then it will do auto cut. Water overflow system we give 3 sensing points for control water level. Float sensors must be used for long life.

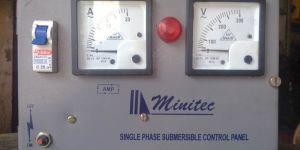

We are into manufacturing and supplying Single Phase Submersible Pump Panel nationwide. We offer Single Phase Submersible Pump Panel (220 vac) for oil field & water field motor. We have developed Single Phase Submersible Pump Panel for both types of motors. Single Phase Submersible Pump Panel is a power factor based system. If power factor is less then it will push the motor again & again till the motor came back in running position. If the motor locked, in condition the system push the motor at least 6 times. For single phase motor upto 5 hp.

We are offering electronic submerssible panel. in this panel we gave digital electronic volt & amp. Meter ( for single phase ) we gave all feature in this electronic submerssible panel to protect the motor from high voltage and high current ( load ) it gives 100% safty to burrent the motor.'packaging material :- corrugated box minimum order quantity  :-  50 pieces

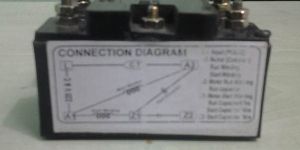

We have established ourselves as a reliable Manufacturer and Supplier of Electronic Clutch System(SSR) in India. If power factor is less then Electronic Clutch System push the motor automatically continue till the motor comes in running position. Our Electronic Clutch System can be operated in the following condition - frequency: 50 hz +- 5%, temperature range: 0ocelsius to 100o Celsius and voltage range 90 vac to 270 vac.Specifications : It is power factor based system. It starts the motor normally. If your motor locked jam any reason it will do push the motor 6 times. The electronic clutch switch have successfully withstood test : locked rotor test : when tested at full voltage the motor emitted smoke and burnt position but the switch was doing still functional. The electronic clutch switch depend only the range of a ratio of the motor. Trouble shooting : motor does not take load - check the start winding and start capacitor for their values. Check the connection of the electronic switch clutch according to the connection diagram. The connections should not be loose. Electronic clutch switch is invariant of R.P.M voltage, current of motor and load condition. Field results have shown that presence of zero cross detector circuit in the electronic clutch switch tend to increase the start capacitor life manifold.   Features : It is power factor based system. It starts motor normally. If power factor is less then it pushes the motor automatically continuous till the motor comes in running position. If your motor locked any reason it will do push the motor 6 times. Electronic clutch depends only the range of a ratio of a motor. It is invariant of R.P.M voltage current of motor and load conditions. It presence of zero cross detector circuit in the electronic clutch tend to increase the capacity life manifold.

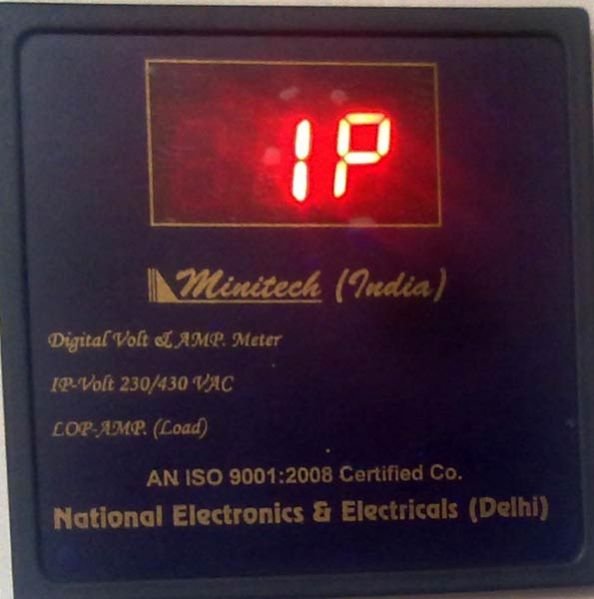

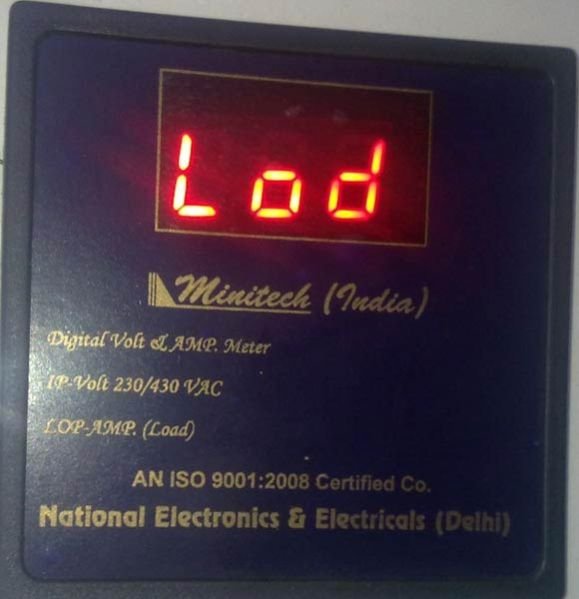

The Digital Volt and Ampere Meter, offered by us, features a display IP- input volt & LOP- load output (amp). If voltage go above 265/450 vac then Digital Volt and Ampere Meter will do auto cut and voltage came back 264/449 vac then it will do work properly. If your motor load (amp) increase according (load set) your requirement then Digital Volt and Ampere Meter will do auto cut.

We are a noted Manufacturer and Supplier of Digital Electronic Meter in India. Our Digital Electronic Meter has features like display IP- input volt, display LOP- load output (amp.) We package our range of Digital Electronic Meters in corrugated boxes ensuring complete safety during transit.  Highlights : If voltage go above 265 vac, then it will do auto cut & voltage came back 264 vac then it would work properly. If home loadmotor load (amp.) increase according (load set) requirement then it will do motor run off (auto cut.). It works from 90 vac to 264 vac.
