On Load Changeover Switch Dealers in Delhi

Off Load Changeover Switch offered are designed and developed using latest technology support and are ideally suited for use as change over switches for off load applications. These switches are developed in conformation with defined quality standards and come with suitable protection  involving accidental opening of switch when in ‘on’ position. Some of its features include high endurance & heat resistance, compact design finish, superior mechanical and dielectric strength, coming with sheet steel enclosure available in following ratings such as 32 AMP, 63 AMP, 100 AMP, 200 AMP, 300 AMP, 400 AMP, 500 AMP, 600 AMP, 800 AMP, 1000 AMP. Specifications: Changeover Switch Off Load Side Handle With Sheet Steel Enclosure

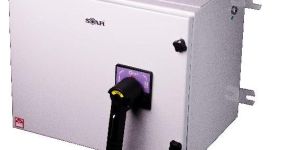

STAR onload changeover switches are designed for domestic, industrial and commercial applications where individual mounting of switches is required or can be accommodated in a complete panel box with other accessories as the units are available with or without enclosures making it a suitable choice for all the users.

• Country of Origin: Made in India
• Phase: Three Phase
• Power Source: Electric
• Range: 32 A
• Frequency: 50 - 60 Hz
• Voltage: 240 - 415 V

• Conformity Standard: IEC: 60947
• Number of Modules: FP
• Rated Current (In): 63A – 1000A
• Rated Voltage (Ue): 415 V
• Rated Insulation Voltage (Ui): 660V
• Rated Frequency: 50 Hz
• Rated Breaking Capacity: 190A – 2400A
• Operation Power: 25W – 316W
• Mechanical Life: 10000 Operations
• Electrical life: 1500 Operations

C&S now introduces the new Off-load Changeover Switch meeting complex requirements of electrical systems of today and tomorrow ensuring reliability which can offer uninterrupted service throughout the product life undergoing all the stresses that system encounters. C&S now offers total solution for modern day requirement for measurement, analysis and communications, all in optimized size.Compact yet offering various connections for ease of installation snap on site fit accessories, enhanced life and intuitive operation makes them a very user friendly range of circuit breaker for any application. For safe and reliable transfer of power from main source to another and vice versa.The Change Over Switches are in sheet steel enclosure, side operated with three position I-O-II.Moving current carrying parts are made of ETP Copper with Silver plating for increased contact life and to ensure low temperature rise at rated current.DMC terminal blocks are provided for Cable termination with excellent thermal & dielectric properties.            Benefits Easy installation increased contact life and to ensure low temperature rise at rated current Suitable for Off Load applications Powder coated to give lasting surface protection Inner mounting holes for easy installation Increased contact life.              FEATURES Rated Voltage : 415V, 50Hz Utilization Category : AC22A Side handle operated switches suitable for Off Load applications Enclosed fabricated steel sheet with phosphate coating by seven tank system Powder coated to give lasting surface protection

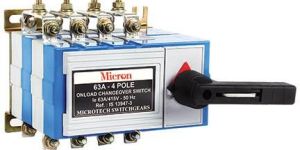

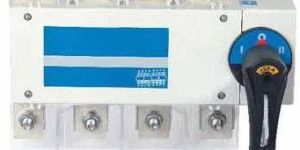

Onload Changeover Switch Range : 63A to 630A, Pole : FP Standard : IS IEC : 60947 Delton Onload changeover switch are manually operation. They performs as changeover giving three stable position (I, o, II) and help in changeover from one supply source to another. Avialble open Execution & sheet steel enclosure.

Onload Changeover Switch Range : 63A to 630A, Pole : FP Standard : IS IEC : 60947 Delton Onload changeover switch are manually operation. They performs as changeover giving three stable position (I, o, II) and help in changeover from one supply source to another. Avialble open Execution & sheet steel enclosure.

  Side Handle operations. Enclosure made from CRCA sheet steel duly powder coated for longer life. Suitable Terminals. Knockout provided for entry of cables.

on load changeover switch, Wall Fans, Solar Geysers, Room Heater

Off Load Changeover Switch, bus bar chamber, solar warning light
