Optical Microscopes Dealers in Delhi

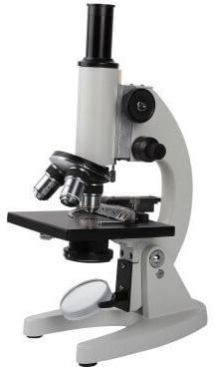

• Eyepieces: Huygenian 10x and 15x.
• Stand: Stable and robust, assembled from Aluminium Die-Cast parts.
• Body: Monocular Fixed Straight Tube, Mechanical Tube length 160mm.
• Stage: Fixed Square Stage Size 115 x 115mm with graduated detachable mechanical stage for convenient adjustment of Slide manipulation upto 40 x 75mm.
• Nosepiece: Triple revolving nosepiece with positive centering & click stops.
• Condenser: Fixed built-in lamp condenser N.A. 0.65.
• Focussing: Separate knobs are provided for coarse and fine focussing. Coarse adjustment can be made through rack-pinion & fine movement by screw-lever mechanism.
• Safety Device: Upper stopper for preventing accidental damage to slides.
• Illumination: 20W Halogen Bulb is provided with solid state variable light control knob, for adjusting the intensity of light, along with ON/OFF Switch. Lamp slots are provided for natural cooling of the illuminator. The Transformer is built in the base operates on 220
• Screen: 150mm diameter round Glass Projection Screen is provided for relaxed fatigue-free viewing over long period, can be rotated through 360º on microscope tube.
• Objectives: Achromatic 5x, 10x & 45x SL.
• Accessories: Vinyl Cover, Duster, Cleaning Brush and spare bulb.

• Magnification: 600x
• Material: Mild Steel
• Weight: 4kg
• Light Source: Halogen
• Features: Rust Proof
• Is It Portable: Portable
• Usage/Application: Lab
• Viewing Head Distance: 75mm

Magnification            :    125x - 1000x. Stand                             :    compact dust proof in construction. Projection screen    :    195mm dia graduated screen rotatable 360°. Focussing                    :    focusable condenser with rack & pinion is fitted under the stage and fine focusing                                               knobs placed separately in convenient position. Stage                             :    co - axial mechanical stage is attached for comfortable and convenient manipulation. Illumination               :    12v - 100w super bright halogen lamp controlled by variable solid state arrangements. Objectives                  :    5x, 10x, 20x & 45x.   metz 402 all specification same 401 but microscope equipped with binocular head.

We are an eminent Manufacturer, Exporter and Supplier of Monocular Compound Microscopes in Delhi, India. These Microscopes are made as per their industrial usage and standards. Apart from this, our Monocular Compound Microscopes are acquirable in ample specifications and grades. Buyers are free to place orders, we assure timely deliveries of the same.

• Voltage: 220V
• Driven Type: Electricity
• Application: Science Lab
• Feature: Actual View Quality, Durable, Easy To Use, Good Griping
• Iris Diaphragm:: 2mm-41mm
• Battery Backup:: 6 to 8 hrs
• Zoom Ratio: 16.5

 Details Siedentopf observation head inclined at 30 degree rotatable at 360 Diopter adjustment ring on ocular tube. Interpupillary distance from 55mm to 75mm Eyepiece EWF 10x fov 18MM Objectives E plans achromatic 4X, 10X, 40X, 100 oil Mechanical body – co-axial focusing system. Pre-focusing lever & tension adjustment ring. The slow motion has 1Div = 0.002 mm Reverse angle quadruple nosepiece revolves on ball bearing Mechanical stage size 125mm x 135mm having low positioned co-axial control on ball bearing Built in base illumination system with 6V /20w halogen bulb and power supply Cross movement 55mm x 74mm Stage condenser-abbe condenser N.A 1.25 swings out filter, iris diaphragm. Hidg resolution digital camera eyepiece- high resolution 1282 x 1024 CCD digital camera. It adopt it high performance USB. The transmission speed is 30 f/s.

• Brand Name: Paramount
• Certification: ISO 9001:2008 Certified
• Color: Blue and Grey
• Condition: New
• Warranty: Lifetime Buyback Warranty
• Country of Origin: India

PROJECTINO is a latest model Polarizing Projection Microscope which is extremely useful for Textile laboratories for analysis of textile fibre & yarns. Special Polarized light increases the clarity & sharpness of the specimen. Paramount Projectino i9™ is a specially designed Polarizing Projection Microscope with Polarized light effects to increase the clarity & sharpness of the specimen. Four objectives of different resolutions are provided to change the power of magnification according to the requirement. Wide screen to project the magnified sample for proper viewing & flawless analysis. The screen has a scale graduated on it for the measurement of fibre length & dia .Specially designed mechanical stage is provided for mounting the sample, which can be moved Up, Down, Forward & Backward. Light intensity controller knob is provided to adjust the light intensity. Fine & coarse focus adjustment knob helps in focusing the sample easily. The unit is meticulously finished in cream paint.

• Weight: 10 kg
• Application: Fiber Inspection
• Magnification: 4x, 10x, 40x, 100 x
• Condition: New
• Warranty: 1 Year
• Brand Name: Paramount
• Port: New Delhi
• Power(W): USB Connected with computer
• After-sales Service Provided: No overseas service provided
• Certification: Calibration & QC Inspection Certificate
• Production Capacity: 5 pcs / Month
• Automatic Grade: Automatic
• Packaging Details: Export Standard Packaging for Safe Transportation to the Customer

• Features: Durable nature,Low maintenance,Easy to use,Reliable operation,Longer service life

We are offering confocal laser scanning microscope.

An advanced versatile projection microscope for measurement of specimens, different types of yarns in textile industries and research institutes. It is equipped with Halogen bulb of 12V/100 watt workable through a solid state built in transformer working on 220V AC mains. Condenser: A high quality glass condenser in front of screen. Mechanical Tube: Length 160 mm Nose piece: Triple revolving nose piece. Movement: Coarse motion through rack and pinion with precise and accurate fine movement. Fixed square stage 102 x 102 mm. Lamp Assembly: Fixed lamp, built in base of high illumination with high power condenser and screen it will work as micro view projector. With lamp, transformer, but without it will work as microscope. The viewing of biological microscope slides is distinct and enlarged. Sharp, clear and evenly illuminated image in full colors, visible to the whole class free of distortion. Supplied in polished wooden box having lock and key.

Viewing head : trinocular head inclined at 30°, interpupillary 48-75 mm Eyepiece: higjtpoint, extra wide field eyepiece ew 10x/22 Objective : Lwd Infinite Plan Objective 4x/0.1 Wd 18 Mm Lwd Infinite Plan Objective 4x/0.6 WD 2.6mm (cover glass1.2mm) Infinite Plan Objective ph 10x/0.25 wd 10mm Infinite Plan Objective ph 20x/0.4 wd 5.1mm Nose piece : Quintuple Nose piece Comdenser : ELWD condenser NA 0.3. LWD 72 MM , (WITHOUT CONDENSER 150MM) Phase Annulus : 10x-20x-40x phase annulus plate Stage : plain stage 160x250 mm Glass insert Auxillairy stages 70 x 180mm Focusing : coaxial coarse  and fine adjustment, vertical objective movement Coarse stroke :37.7 mm per rotation, fine stroke : 0.2 mm Per Rotation Illumination : halogen lamp 6v 30 w Filter :Diameter 45 mm Blue Green and Ground Glass

• Brand Name: Labs India

We are offering industrial projection microscope, we are instrumental in providing to our valuable customers excellent quality industrial projection microscope which is available with following features:- an advanced projection microscope for measurement of dimensions of precision mechanical components different types of yarns in textile industries and research institutes. equipped with halogen bulb of 24v150watt with built in solid state transformers working on 220v ac mains. graduated screen, diameter 200mm, rotable through 360o. built in fresnel lens with loop and arrow arrangement. co-axial mechanical stage having micro movements on x & y knobs, working on ball bearing guide ways. focusing through coarse and fine motion knobs. quadruple nose-piece. objectives: 5x, 10x, 20x, 40 x. packed in sturdy card board box. clients can avail this industrial projection microscope at industry leading prices from us.

For checking Yarn hairiness & identification of fibers.

• diameter: 160 mm

Student projection microscope Having 12volts 100 watts Halogen projection bulb workable on 220 volts Ac mains with triple Revolving nose piece, 160 mm dia, built in screen giving magnification 40 x to x 400x, complete with 5 x, 10 x and 20 x lens.

• Weight: 4 Kg
• Voltage: 100-240 V AC
• Frequency: 50-60 Hz
• Output: 5Vdc,500mA
• Height: 350 mm
• Width: 170 mm
• Depth: 210 mm
• Minimum Order Quantity: 5 Piece

• Eyepieces: 10X
• Power: 220V
• Model: ALABS-A87-004
• Categories: Projection Microscope
• Illumination: 20W Halogen lamp
• Objectives: 10X & 40X
• Projection Screen: 150mm

• Size: Customized
• Country of Origin: Made in India
• Brand Name: Ramp Impex
• Model Name/Number: Polarizing Projection Microscope
• Use: Industrial
• Magnification: 4X, 10X, 20X,40X
