Ozone Overseas (P) Ltd. Kirti Nagar, Delhi

Spring Loaded Hydraulic HingesDurability: 5,00,000 Cycle Teste,Hold Open: 90°with Adjustacble opening and closing speed,Can be used for double action doors also.Secure holding with glass.No oil Leakage: Imported seal material, delicate structure, process control on quality.Max Door Dimension: 1000 X 2200 Max Glass Thickness: 8 to 14mm,Max Door weight: 60 Kg .( Each Pair),Max Closing Force: 4-8Nm,Opening Angle: 100 Deg (Double Action),Working Temperature: 30-60 Des-C,Material: SS-304. Finish: Satin

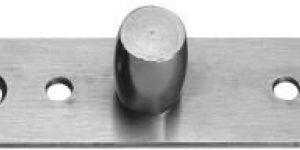

Top pivot with 15mm diameter pin,Wear resistant SS 316 pivot pin,Pivot held in overhead structure,High grade SS316 Patch fitting, Finish: SSS

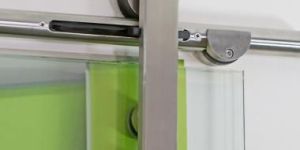

Cushioning against door slamming, gentle self-closing the door for about 100mm In-house tested for 2,00,000 cycles Patented soft closing mechanism as per EN1527:1998 Standard for 100,000 cycles Patented door height adjustment +-4mm on carriage Glass thickness: 8-10mm for standard model; Specify if required for 12mm thick glass Max. door weight: 80kgs 2 carriages for soft closing mechanism Standard track length: 1760mm Finish: SS 304

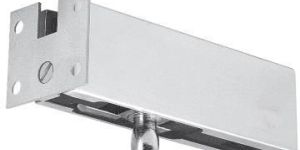

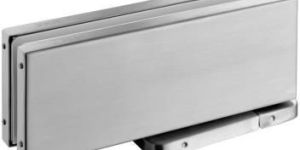

1.5mm thick SS 316 cover plate,Cover plate secured with snap fit mechanism,Base Casting Material :-Alloy Steel,Gasket :- Non-Asbestos Material,Spring Steel (Special Metal) snap fit points for more strength,Strong cover which doesn’t come out easily.

1.5mm thick SS 316 cover plate,Cover plate secured with snap fit mechanism,Base Casting Material :-Alloy Steel,Gasket :- Non-Asbestos Material,Spring Steel (Special Metal) snap fit points for more strength,Strong cover which doesn’t come out easily. Iron Pivot Pin Ø15 mm with Variable adjustment of 55 or 65mm,High Grade SS316 Patch fitting, Finish: SSS.

Soft closing Single Sliding Wooden Door Suitable for Office, Kitchen, Living Room and Pocket Doors Elegant and Slim design Systems can be mounted on Glass, wall and ceiling. Internationally patented in Germany as per EN1527 standards Roller tested for 100,000 cycles Hydraulic soft closing bumper-Tested for 2,00,000 impact cycles Energy efficient - prevents AC loss by allowing minimum 5mm gap between sliding & fixed glass Adjustable soft closing pulling force for different door weight 40-80 kgs Slim Track Size: 54x58mm Door height adjustment +-3.5mm on carriage and prevent the de-railing of sliding door

Soft Closing Single Sliding Glass Door for Office, Kitchen, Living Room and Pocket Doors Elegant and Slim design Can be Mounted on Glass, Wall and Ceiling. No CutoutHoles Required for Glass Doors. Internationally patented in Germany as per EN1527 standards Roller tested for 100,000 cycles Hydraulic soft closing bumper-Tested for 2,00,000 impact cycle Energy efficient - prevents AC loss by allowing minimum 5mm gap between sliding & fixed glass Adjustable soft closing pulling force for different door weight 40-80 kgs Slim Track Size: 54x58mm Door height adjustment +-3.5mm on carriage and prevent the de-railing of sliding doorAluminium anodised top track Finish: SS or brushed clear Length: 2mtr and 4mtr

Cover & Base Plate in High Grade Stainless Steel 316 Corrosive Resistance. 3 Years Guarantee. Compliant with EN 1154 standard Requires No Digging or Cutting of Floor Quick and easy installation with just 4 fasteners EN-3 for Interior & Exterior Applications Suitable door weight: Max 100kg. Suitable door width: 750~1000mm Suitable door thickness: 8~12mm Maximum opening 150° and controlled 135° Durability-500,000 Cycles Tested SS 316 cover plate secured with pin system mechanism Suitable for FireSmoke Doors upto 40 min, Tested by Intertek as per EN 1634-1:2008 Ambient temperature: -20°C to +50°C +3mm backward and forward,+3mm left and right and 4° alignment adjustment Finish: SSS Hold Open:- Optional (ON DEMAND)

Spring Loaded Hydraulic Hinges Durability: 5,00,000 Cycle Tested Hold Open: 90°with Adjustacble opening and closing speed. Can be used for double action doors also. Secure holding with glass. No oil Leakage: Imported seal material, delicate structure, process control on quality. Max Door Dimension: 1000 X 2200 mm. Max Glass Thickness: 8 to 14mm Opening Angle: 100 Deg (Double Action) Working Temperature: 30-60 Des-C Material: SS-304. Finish: Satin

Single sliding glass door for office, kitchen, living room and pocket doors Elegant and slim design Can be mounted on Glass, Wall and Ceiling No cutoutholes required for glass doors Internationally patented in Germany as per EN1527 standards Roller tested for 100,000 cycles Energy efficient - prevents AC loss by allowing minimum 5mm gap between sliding & fixed glass Adjustable soft closing pulling force for different door weight 40-80 kgs

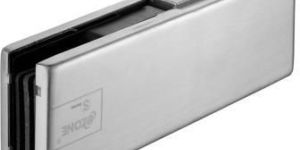

1.5mm thick SS 316 cover plate,Cover plate secured with snap fit mechanism,Base Casting Material :-Alloy Steel,Gasket :- Non-Asbestos Material,Spring Steel (Special Metal) snap fit points for more strength,Strong cover which doesn’t come out easily. With a euro profile cylinder with 4 Nos. computerised keys and strike plate,Dead bolt projection of 15mm (single throw),High Grade SS316-Patch fitting,Finish: SSS.

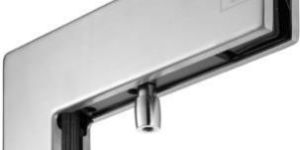

1.5mm thick SS 316 cover plate,Cover plate secured with snap fit mechanism,Base Casting Material :-Alloy Steel,Gasket :- Non-Asbestos Material,Spring Steel (Special Metal) snap fit points for more strength,Strong cover which doesn’t come out easily. SS-202 Bracket to Accept the Pivot Pin Ø15 mm with Variable adjustment of 55 or 65mm,Compatible with Ozone Floor Spring FS-8400, 9400, 10400 & 11400,High Grade SS316 Patch fitting,Finish: SSS.

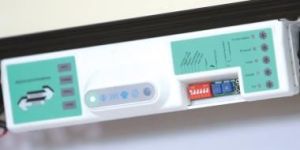

Designed in compliance with EN 16005 Low Energy Operating Standard for 500,000 cycles,Slim Track Size (mm): (H)75 x (D)77 x (L)2000,Can be converted to semi-automatic & manual sliding system, Suitable for Door Weight 20-80Kg,Power Supply 100~240V AC ; 5060 Hz,Power consumption 5W in stand-by mode & 40W (max) in Automatic mode,2mtr. aluminium track in SS finish,For single panel sliding door, frameless glass or framed door,Same product & installation of right to left or left to right door opening,Integration possible with microwave sensor, wireless push button, digital door key,RFID Card access control, hand wave sensor etc.

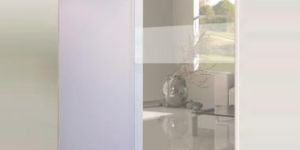

Converts existing manual sliding doorwindow into automatic Suitable for residential applications,Single leaf door weight: 80Kg DC 24V 45W brushless motor Can be installed on doors of kitchen, balcony, office, shop front, aisle,french window or other sliding windows Suitable door width: 500-1000 mm Voltage: AC 100-240V Opening speed: 10-45 cms (Adjustable) Closing speed: 10-25 cms (Adjustable) Compatible with sensor, remote control, push bottom, RFID card reader etc With 2 Nos. wireless push buttonsremote control

Brand Name : Ozone
