Padding Mangle Dealers in Delhi

• • Automation : Microprocessor Controller: • Heater : 1.5 KW
• • Heating Trough capacity : 800 ml: • Bowl Hardness : 65o-70o
• • Weight : 120 Kg: • Dimenssion : L1030mm X W 650mmX H 790mm

Features :  ·         Versatile machine, can be used for dyeing, printing and finishing trials.. ·         For even pressure throughout, pneumatic loading of the bowl. ·         Small unheated trough provided for padding a small size samples. ·         Nip padding trough and doctor blades available as standard accessories.. ·         2 bowl padding mangle.

• Pressure Range: 1-7 Kg/cm2
• Working width: 450mm
• Working Speed: 100-400cm/min
• Bowl Size: 120 Mm Dia X 500mm Wide
• Material of Coating On the Bowl: Synthetic Rubber
• Hardness: 65/70 Shore
• Power Supply: Single Phase, 220 Volt, 5 Amp/as per Local Voltage System
• Overall Dimension of Unit: 1032 (L) x 405 (W) x 550 (H) mm
• Net Weight: 105 Kg

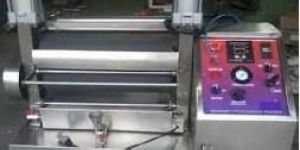

My Q Laboratory Padding Mangle is a versatile laboratory machine with wide applications in Dyeing, Printing &  inishing processes. By simulating the production level process parameters on laboratory scale satisfactory results can be obtained with JK &PC. Padding Mangle. Two bowl Vertical Padding Mangle has bowls coated with synthetic rubber. In standard supply, shore hardness of the rubber is 70 shore hardness. Uniform pressure through out the bowl is achieved by pneumatic loading of the bowls. This ensures in achieving desired expression results. Safety devices provided include a fabric feeder, a safety rod & emergency stop button. Machine is provided with a liquor trough, nippadding trough, doctor blade &cleaning spray for cleaning of bowls & trough. Padding Mangle with 3 bowls can be offered if needed with central bowl of ebonite, stainless steel or synthetic rubber. For specific purpose, bowls canbe offered with highershore hardness.
