Paramount Communications Ltd. Naraina, Delhi

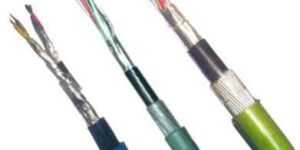

ApplicationUsed for connecting the thermocouple to the control and measurement devices (pyrometers etc.) that may be some distance away from the thermocouple in the control room. Conforming to standard specifications like IS 8784, ANSI MC 96.1, DIN 43714, 43, ENI-0163, BS 4937 (Pt-30).ConfigurationSingle Pair/Multiple Pair usually upto 24 pairs. Higher pairs on customer's request.ConstructionConductorAs per Cable Codes KX, KX(A), JX, TX, EX, SX/RX, BX. 16, 18&20 AWG. Other Conductor sizes on request.Primary InsuLationPVC/HRPVC.ScreeningIndividual or overall Aluminum Mylar tape screened with ATC Drain wire.Inner SheathPVC/HR PVC/FRLS PVC/FR PVC.ArmouringGI RoundWire/FlatStrips. OuterSheathPVC/HR PVC/FRLS PVC/FRPVC. Rip CordFor easy removal of sheath.

Paramount is one of the prime Railway Cable Manufacturer, Exporter and supplier based in India. We also cater the cabling need across the globe and recognized as on of the important Railway Cable Exporter. We proud to state that we are one of the largest specialized Railway Cable Supplier for Indian Railways. Keeping in view the safety requirements we have deigned a unique kind of cable with specific technical features for Indian Railways .With the help of our dedicated professional, we have developed and designed a variety of railway cables to cater our client in Indian and global clients.As a result of incessant technical research we have developed a comprehensive design capability based on sound engineering practices to help the customer meet his technical requirements. Paramount Cables is the largest supplier of specialized cables to Indian Railways.Paramount Cables takes pride in having developed and designed wide varieties of cables to various international and customers specifications. We developed a totally new cable with very advanced design features viz. 4 Quad Axle Counter Cables for the Indian Railways with extremely low capacitance unbalance and reduction factor values, in view of the stringent usage and safety requirements. Paramount Cables is among the few Cable companies who manufacture the following types of cables for Indian Railway :Underground Railway Signaling Cables.Underground Railway Quad Axle Counter Cables.Optical Fiber CablesPower CablesSpecialized Instrumentation cables for underground and elevated Metro Projects.

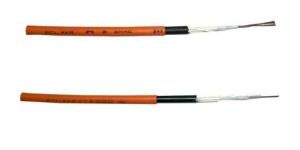

Paramount is one of the largest cable manufacturers in India & an undisputed leader in the business. Apart from its unchallenged presence in North India, Paramount is recognized as a single point source for a comprehensive range of cables needed by virtually every sector of the economy.Paramount's latest state-of-the-art plant in Khushkhera (Rajasthan), has been set up to manufacture optical fiber cables conforming to IEC ­794, ITU-T, TEC & Indian Railways (TC-55-2000) specifications and are type approved by Dept. of Telecommunication, Govt. of India and Indian Railways.With a covered area of 10 acres, the plant is fully equipped to manufacture over 1600kms of single mode and multi mode optical fiber cables including armoured, unarmoured, aerial, All Dielectric Self Supporting Optical Fiber cables (ADSS Cables) and Optical Fiber . Direct To Home (DTH) Cables. Optical Fiber Cables manufactured at Paramount are used in several applications like - Telecommunication Systems, Information Technology, Industries, Railways, Space Research, Energy Oil and Gas enterprises, Cable T. V. Networks, Defense Applications, Control Automation Systems etc.Optical fiber cables are now widely used in telecommunication systems. Apart from these, OFC is finding its way into Cable T.V. networks, Industries, Energy and Gas enterprises, Railways, Space Research & Technology etc. Paramount offers a wide range of Optical Fiber Cables (Single mode and Multi mode) including armoured, aerial, unarmoured, ADSS Cable & Optical Fiber DirectTo Home (DTH) Cables. Cables manufactured are conforming to IEC-794, ITU-T, TC-55-2000 specifications and are type approved by Dept. ofTelecom, Govtof India.ConfigurationUnitube/ Multitube/Tight Buffer / Ribbon Type.ConstructionFiberSingle mode / Multi mode primary coated with double UV cured acrylate.No. offibers in a cable2,6,12,24,48,96, i 44,288. Other sizes can be supplied on request.Strength MemberNon metallic (solid FRP/Aramid yarn/Glass yarn) & metallic (solid steel wire).Filling CompoundWater resistantfilling compound.Water Blocking MaterialIf required water blocking powder/tape.SheathHDPE Black with UV resistant inhibitors.Mechanical protectionIf required corrugated steel tape of 0.125 mm thickness coated with copolymer 0.05 mm thickness, longitudinally laid with minimum overlap of 1 0 %.Jacket/Outer SheathNylon (Orange)/HDPE (Black).

ApplicationPower cables with PVC/XLPE insulation for Power Transmission. Voltage grade 650/1100 Volts (Uo/U) provided with ISI marking IS 1554(Pt-1), with or without HR/FRLS properties. Screening can be provided if desired. Conforming to standard specifications like IS 1554(Pt.1), IEC502, BS6436/87.ConfigurationSingle core upto 1000 sq. mm. Multi-core upto 400 sq. mm x3Y2 cores.ConstructionConductorAluminium/Copper Solid/Stranded Circular/ Compacted/ Sector-shaped conductor.InsulationPVC or XLPE (Heat Resistant PVC on request) Mechanical ProtectionGalvanized steel wire/strips/double helical steel tape. Aluminium wire armouring forsingle core cable. Inner & outersheathPVC Black/Grey.

Jelly filled cables are utile for a fine connection between exchanges and subscribers. On a very fair pricing this product is available in with a varied customized options.

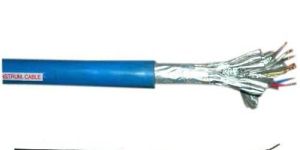

ApplicationFor use in normal or hazardous area, with or without flame retardant properties, suitable in process control, A/D converters and other modern microprocessor based instrumentation circuits. These cables are designed to offer excellent resistance to noise and induction phenomena encountered in instrumentation circuits. Voltage grade 650/1100 Volts (Uo/U). Conforming to standard specifications like IS 1554 (Pt-1), BS 5308 (Pt-1 & 2), IEC 189 (Pt-1 &2), VDE0815&0816etc.ConfigurationMulti-core/multi-pair/multi-quad laid upconcentricallyorin units. ConstructionConductorSolid/stranded, tinned/bare/silver-plated annealed high conductivity EC grade copper, sizes ranging from 0.5 sq. mm to 2.5 sq.mm.InsulationPVC/ Solid PEl special thermoplastic materials, heat resistant PVC-85OC/1 05°C operation. Halogen free polymeric or elastomeric insulation can be provided. Core identification by color-coding or printed numerals/letters.Core-WrapOne or more Plastic Tape.ScreenCores/Pairs/Quads can be individually or overall screened or both. Screening by Cu/AI-Mylar Tape or copper braid or aluminium wire for reinforced armourtypes.

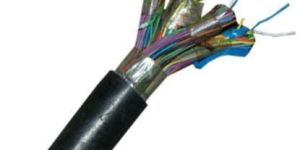

Our installation cables are available on very attractive prices with the best quality available in market. These cables are serviceable for internal exchange installations, connection between selector racks, distribution frames etc.

We are offering drop wire etc. Drop wires are designed for subscriber telephone connections, installation inside buildings or on the surface of buildings or can be used as aerial self supported. We offer the best quality drop wire.

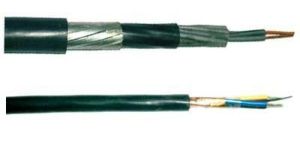

ApplicationCables for control circuits in power plants and other similar industrial installations and signaling network of Railways, with or without FR/FRLS properties in sizes normally upto 61 cores. Voltage grade 650/1100 Volts (Uo/U). Provided with ISI marking against IS 1554 (Pt­1). Conforming to standard specifications like IS 1554 (Pt1), BS 6346, IEC227-1, III..ConfigurationMulti-core/Multi-pair.ConstructionConductorSolid/stranded, circular annealed, bare/tinned copper wire of 1.5 sq.mm, 2.5sq. mm, 4.0sq. mm.InsulationPVC. Fully color coded cores. Core identification by printed numerals/letters also available on request. ScreenScreening by copper braid or aluminium mylar tape or aluminium wire for reinforced armour types.Drain WireDrain wire of solid/stranded, bare/tinned copper wire normally provided.Mechanical ProtectionGalvanized steel wire orstrip or double helical steel tape armour. Inner & Outer SheathPVC black/grey

With its unique Technical specifications, Buried Service Wire is useful in underground laying. With superb quality and reasonable prices, it is always been a prime choice for our clients.ApplicationFor subscriber connections,suitable in underground laying.ConfigurationOne star quadConstructionConductorSolid annealed bare copper wire of O.65mm.InsulationSolid/foamskin polyethylene, fully color coded. QuaddingFour insulated conductors twisted into a star quad. Filling CompoundSuitable water resistant compound.Core WrapOne helical/longitudinal plastic tape.Moisture Barrier and ScreenBoth side plastic coated Aluminum tape, smooth nominal thickness of Aluminum O.2mmi>Drain WireIf required, solid tinned copper O.5mmOuter SheathBlack LDPEElectrical Characteristics at 20 degree CNominal Conductor Dia. : 0.65 mmMaximum Conductor Resistance (Ohm/Km) : 57Resistance Unbalance :-Two conductor or a pair : 2.5 Ohm/km-Individual Pair : 3.9 Ohm/kmMutual capacitance average at 1 Khz nF/km - Capacitance unbalance at 1 Khz : 42Pair to pair pF/500 mts : 300 Pair to earth pF/Km : 2500Min. Insulation resistance at 20 degree C, 500 VDC M ohm/km : 1000Dielectric Strength :Conductor to conductor : 3.6 KVDC, 3 SecondsCore to screen : 6.6 KVAC, 3 SecondsAttenuation at :70 Khz : 4.2 db/km1 Mhz : 20 db/kmCrosstalk :FE-XT at :70 Khz 75 db, 1 Khz 52 dbNE-XT at : 70 Khz 58 db1 Khz : 46 db

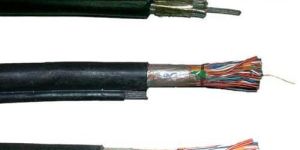

ApplicationAerial self supported telecom distribution cables are an economical and reliable way to provide connections between the telephone exchanges and distribution points, especially in hilly and uneven terrain. Paramount offers the complete range of Aerial Cables conforming to various national and international specifications like G/CAF-01/01.Nov'92,52-23/85-TRC,BS:3573/90,IEC 708­1 ,IEC:708-4 that a customer may desire.ConfigurationStar Quads/Pairs.ConstructionConductorSolid annealed bare copper wire of OAmm,0.5mm,0.6mm,0.8mm and 0.9mm.Other sizes delivered on customer's request.InsulationSolid/polyethylene fully colour-coded.Cable AssemblyIn units of 10 pairs upto 50 pairs cable.In super units of 20/25pairs for 100 pair cable and above.Units identified by color-coding of unit-binder.Core WrapOne or more plastic tapes.Moisture Barrier and ScreenBoth side plastic coated aluminum tape,smooth,nominal thickness of Aluminum-0.20mm.Drain WireIf required,one 0.5mm solid tinned copper wire.Messenger7 or more strands of galvanised wire.Outer SheathBlack LDPE in shape of '8' including the messenger and the cable.

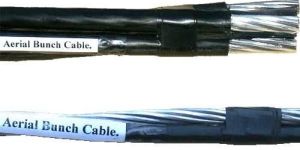

This type of construction has the following additional advantages:Cables are lighter in weightEasy to installCan be installed on poles, on walls etc.Easy to make terminations and branch off joints on live wire as well Protection against power theft.AERIAL BUNCH CABLES are part of power distribution cables, developed earlier in Europe at Sweden and Norway to be installed on overhead poles where underground excavation was not easy because of hard rocky soil. In due course these cables became popular in various parts of Europe and USAas well.Further, installation was easy. Teeing off was not cumbersome. Maintenance was also not tiresome. The insulated power cores in these cases can not be tampered with. Construction of the cable is simple, though, manufacturing needs very special care for proper & longer performance during operation. Paramount Cables after analysing and studying the significant critical features of this particular cable have taken special measures to manufacture this item to give reliable service for a longer period of time. Following points need to be noted.ConductorSpecial care has been taken to form conductor in the factory. Lay length is chosen based on IS:398. Residual stress which remains in the conductor after coming out of die-head is removed by compacting the conductor, reducing the electrical stress as well. The compacted conductor allows uniformity of extruded insulation. yAs for messenger conductor, monitoring is done from the wire rod stage, to solution treatment to ageing after wire drawing. During stranding same precaution is taken to remove the internal stress of the conductor. This is advantageous for laying the cable uniformly.InsulationHigh quality contamination and moisture free grafted polymer is selected after in house testing to ensure reliable service. XLPE (Sioplas) insulation while being extruded over the conductor, is made stress free by special manufacturing technique. Curing is done under controlled conditions to obtain consistent result giving dimensional stability.Twisting/LayingBasic factor is the peculiar form of twisting the insulated conductor around the messenger conductor. While twisting the phase conductors around the messenger conductor, messenger conductor is to remain in the centre position supporting the phase conductors. Special technique has thus been adopted by Paramount Cables to ensure stress free twisting system.The twisting form of phase conductor is also important for the following reason.The phase conductors are being allowed to slide freely over the messenger conductor during temperature fluctuation. It is also to be ensured that during sliding the insulation should not get scratches due to rubbing effect.During expansion and contraction, the phase conductors try to move toward the ends exerting additional stress at the terminating point or at the clipping point. By special twisting process such forces are neutralised. During installation and branching off, phase conductors can easily be loosened to crimp the connectors without straining and damaging the phase conductors.TestingAt Paramount Cables in house testing of raw materials & testing during processing at every stage is a must. There is no lapse allowed at any point where constant improvement is monitored from the beginning to the last stage.Aerial Bunch Cable though looks very simple in construction, its manufacturing technique should be such that the cable can accept and withstand all the severe operational hazards for all the times under any circumstances.Paramount Cables, understanding the inherent intricate operational significance of Aerial Bunch Cables, have oriented themselves to manufacture these cables for the power distribution system particularly forthe varied Indian conditions.ApplicationAerial Bunch Cables, 1.1 KV Volt Grade, are used for distributing power to individual consumers by utility service providers like electricity boards, elctricity distributing authorities. The cable is kept supported on poles. The line is tapped intermittently from any required position which enables itto be used in urban as well as rural areas alike.ConductorPhase or lighting conductor: Hard drawnAluminium H2 or H4 grades per 1S:8130 Messengerconductor: Aluminium Silica and MagnesiumAlloy used after treatment as per IS: 398 (part4)InsulationXLPE with Sioplas Technique applied by extrusion process.Identification of PhaseBy providing ridges on the insulation of phase conductors. One ridge for 1 st phase,2 and 3 ridges for 2 nd and 3rd phases respectively. Neutral can have 4 ridges, if desired.Color of InsulationBecause the cable remains exposed to environment & sunlight (ultraviolet radiation) the insulation is mixed with a small amount of carbon black to stop deterioration of polythene due to U V radiation.AssemblingThe phase conductor along with the lighting conductor (where applicable) is twisted around messenger conductor.ConstructionThe phase conductor can be of single phase and also of three phases. A lighting conductor can be also incorporated to give supply to the street lighting. Messenger conductor supports the weight ofthe cable and keeps the assembly strung undertension.The phase conductor is made of concentrically stranded Aluminium Wires having 7 or 19 wires. The messenger conductor is made of specially treated Silica, Magnesium Aluminium alloy having 7 wires. The phase conductor and lighting conductor where applicable are insulated with XLPE (made of Sioplas Technology) compound. The messenger conductor, as per customer's choice is kept either bare or insulated. The phase conductor along with lighting conductor (where applicable) are twisted around the messenger, conductor (insulated or bare) and left as such. Sometimes as a special case a neutral conductor is also provided separately, if desired, by the user. Generally, messenger acts as earth as well as neutral.
