X Ray Baggage Scanner
Offering X Ray Baggage Scanner. Baggage Scanning Machine is a most common equipment used for security reasons now a days. It is used to check luggage in detail and also in short time. When a bag enters into the tunnel of scanner, sensors on both side senses it and send a message to X-Ray Generator which generates X-Ray. The X-rays passes through the bag and make an image on the screen.The heart of an X-ray generator is the X-ray tube. Like any vacuum tube, the X-ray tube contains a cathode, which directs a stream of electrons into a vacuum, and an anode, which collects the electrons and is made of copper to evacuate the heat generated by the collision. When the electrons collide the target, about 1% of the resulting energy is emitted as X-rays, with the remaining 99% released as heat. Due to the high energy of the electrons that reach relativistic speeds the target is usually made of tungsten even if other material can be used particularly in XRF applications. A cooling system is necessary to cool the anode; many X-ray generators use water or oil recirculating systems.When baggage is placed on the conveyor, it is moved into the machine by the operator. There is an infrared transmitter and receiver assembly to detect the baggage when it enters the tunnel. This assembly gives the signal to switch on the generator and signal processing system. The signal processing system processes incoming signals from the detector and reproduce an image based upon the type of material and material density inside the baggage. This image is then sent to the display unit.The colour of the image displayed depends upon the material and material density : organic material such as paper, clothes and most explosives are displayed in orange. Mixed materials such as aluminum are displayed in green. Inorganic materials such as copper are displayed in blue and non-penetrable items are displayed in black (some machines display this as a yellowish green or red). The darkness of the color depends upon the density or thickness of the material.The material density determination is achieved by two-layer detector. The layers of the detector pixels are separated with a strip of metal. The metal absorbs soft rays, letting the shorter, more penetrating wavelengths through to the bottom layer of detectors, turning the detector to a crude two-band spectrometer.
...more
under vehicle surveillance system
Offering Under Vehicle Surveillance System. PINNACLE make under-vehicle surrvilance system generally consists of still or video cameras mounted within a ramp and used at facility access points, particularly at secure facilities. An under-vehicle inspection system is used to detect threats—such as bombs—that are hidden underneath vehicles. Cameras capture images of the undercarriage of the vehicle for manual or automated visual inspection by security personnel or systems.The first under-vehicle inspection system was developed by BDL Systems (now Chemring EOD) in the late 80s, using black and white images from area scan cameras. The systems have since developed into far more capable and dedicated systems offering high-resolution line-scan technology, full-colour images, data basing capabilities (when linked with ANPR), and anomaly detection.Under-vehicle inspection systems can be permanent (embedded in the road), fixed (attached to the road), or mobile (portable).Under vehicle inspection systems are known by the acronyms UVI (under-vehicle inspection), UVIS (under-vehicle inspection systems), AUVIS (automated under-vehicle inspection systems) and MUVIS (mobile under-vehicle inspection systems).Another common name for Under Vehicle Inspection System is Under Vehicle Surveillance System (UVSS).UVSS (Under Vehicle Screening System) – Generally consists of cameras mounted within a Screening Unit and used at facility access points, particularly at secure and or high value facilities. A UVSS (Under Vehicle Screening System) is used to detect threats such as bombs, weapons, contraband and human etc. that are hidden underneath vehicles. The UVSS (Under Vehicle Screening System) camera captures images of the undercarriage of vehicle and display on the Operating Unit ready for inspection by security personnel.Under the growing threats worldwide, UVSS (Under Vehicle Screening System) is now essential for first line inspection at entry points of many vital installations. For example: Palaces, Government Buildings, Court of Law, Financial Institutions, Airport, Seaport, Police HQ, Military Airbases, Camps, Navy Base, Power Station, Embassies, International Hotels, Industrial sites, Residential and Shopping Complexes and many other assets and lives worth protecting.
...more

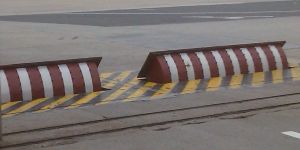

Road Blockers
We are offering pinnacle road blockers provide higher levels of security with built in stopping power, and are used extensively for premises such as banks, embassies, bullion depots, cargo parks, ports and lorry parks. 100% duty rating - designed for continuous and frequent use. Power is supplied from a three phase 400v power supply as standard. The road blocker can be interfaced to any access control systems. Traffic light system included as standard. It is recommended that the road blocker's hydraulic control cabinet is installed within 10metres of the blocker.
...more
Parking Management System
Offering Parking Management System. PINNACLE Make Parking Guidance & Management System consist of Parking Guidance systems (PGS) help people find parking spots quickly. The Parking Management System constitutes the access control system, revenue management, security system and statistical information. Parking Management System constitutes of : Parking Management Software –The software ties in all the components of the Parking management system. Automated Access control system – The parking management system ties in with the Access control system like Automatic gates, barrier controls, ticketing systems etc. Enabling Fool Proof Security –The security features includes tying in with RFID based entry exit, Under Vehicle Scan system & PINNACLE’s proprietary Licence Plate recognition systems. Automated Fee systems – Easy configuration of Parking management software to configure Fee payments depending on the duration or exclude payment of fee based on management issued passes. Assign customers as prepaid, post-paid. Statistical reporting software – Generate hourly, weekly, monthly & yearly reports. It up to 12 reports with Revenue based License Plate recognition based reports Access card based (Pre-paid, Post Paid) The Parking guidance system constitutes of Real time Vehicle counting –The vehicle counting system constitutes of a non intrusive vision based vehicle counting system. This will be installed in every level such that the management gets real time knowledge of the number of cars present in every level. Real time parking guidance display –Display boards displays the number of empty slots at every level. Video Surveillance (optional) –An optional multi camera video surveillance system can be integrated into solution. DVR (optional) – The video surveillance data, License plate videos, Under Vehicle Surveillance videos can be archived on a DVR
...more
human scanner
Offering Human Scanner. PINNACLE Make Full-Body Scanner is a device that detects objects on a person's body for security screening purposes, without physically removing clothes or making physical contact. Depending on the specific technology, the operator may see an alternate-wavelength image of the person's naked body, or merely a cartoon-like representation of the person with an indicator showing where any suspicious items were detected. For privacy and security reasons, the display is generally not visible to other passengers, and in some cases is located in a separate room where the operator cannot see the face of the person being screened. Unlike metal detectors, full-body scanners can detect non-metal objects, which became an increasing concern after various airliner bombing attempts in the 2000s. Two distinct technologies are in general use: Millimeter wave scanner use non-ionizing electromagnetic radiation similar to that used by wireless data transmitters, in the extremely high frequency radio band (which is a lower frequency than visible light). Because the radiation is non-ionizing, it is not carcinogenic and is generally considered safe for living things. Passive sensors are also available (but are not in general use at airports) which rely on ambient EM radiation and do not emit any Backscatter X-ray machines uses ionizing electromagnetic radiation, similar to a dental X-ray. Ionizing radiation is carcinogenic, but the dosage generated by this type of full-body scanner is small enough that the increased risk of cancer is comparable to the risk generated by radiation from natural sources or by flying at high altitudes.
...more

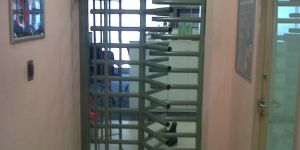

Full Body Turnstiles
We are offering pinnacle full body turnstile is a type of gate that consists of 3 or 4 arms that rotate to allow only one person to pass per rotation. A full height (full body height) may be a totally mechanical device to one that may be integrated with a fully computerised access control. Compared to gates, turnstiles offer better security and better manpower utilization, as they provide only a small passageway and allow only one person to pass at a time. Opened gates on the other hand make it easier for several people to slip through as the gatekeepers are verifying passes. When integrated with access control and computer, turnstiles can help record attendance, entry and exit timings of staff and visitors.
...more
Door Frame Metal Detectors
Offering Door Frame Metal Detectors. PINNACLE Door Frame Metal Detector is a device which responds to metal at a distance. Metal detectors are useful for finding metal inclusions hidden within objects, or metal objects buried underground.The simplest form of a metal detector consists of an oscillator producing an alternating current that passes through a coil producing an alternating magnetic field. If a piece of electrically conductive metal is close to the coil, eddy currents will be induced in the metal, and this produces a magnetic field of its own. If another coil is used to measure the magnetic field (acting as a magnetometer), the change in the magnetic field due to the metallic object can be detected.Security is absolute with this Metal Detector. Unique Door Frame Metal Detector is designed to detect both Ferrous and Non Ferrous Metals, which is passed through the aperture vicinity in any conceivable manner.This Metal Detector is highly sensitive and are been used in the Jewellery manufacturing units and other various manufacturing units to protect the various unavoidable pilfering activities. This metal detector is ideal for customs, factories and all high security sites. All the Metal Detectors have a phase sensitive detection circuits which allows the user to enhance the sensitivity for certain group of metals and reduces it for others to a large extend.
...more
Automatic Boom Barriers
We are offering pinnacle boom barrier with with anti-crush safety sensors. Restricts vehicle movement in a particular area. Their operation can either be manually controlled or can be automated. Genesis provides world class devices with proper installation and maintenance at client’s site. boom barriers find uses in parking management in malls/supermarkets, toll plazas, hotels, embassies, goods yard, railway crossings, apartment block access, and safety measures for commercial/industrial premises. product features: optional beam sensor can be integrated with other peripheral safety devices such as access control system through rfid designed for heavy-duty operation with sleek and modern looks.
...more
Spike Barrier
We are offering pinnacle spike barrier is an electro hydraulically operated heavy duty spike obstruction which rises above the ground level on giving a valid input signal and thus prevents unauthorized intrusions at entry/exit points of high security premises.when in lowered position the vehicles can pass through, thereby providing a good enhanced security blockage system.the housing and the blocking element of the tyre killer are designed in full core steel profile construction coating, ensuring maximum safety against corrosion. The impact face of the tyre killer is impact resisting thick, sharp steel spikes to puncture the tyre and infact are strong enough to break the axle of the vehicle. It transfers mechanical forces to reinforced concrete foundation.the tyre killer is operated by high speed hydraulic cylinders. A power pack containing an electric motor – pump assembly and an accumulator/handle for manual operation(in case of power failure) is installed upto a distance of 25 meters from the tyre killer in a all weatherproof lockable steel casing on a concrete base.
...more
Flap Barrier
We are offering Pinnacle flap barrier are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorized entries, interfaced with a pc through a rs232 (rs485, tcp-ip) line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
...more
pinnacle central motor
We offer pinnacle central motor for rolling shutter are made available in precision engineered as well as highly functional motorized finish that provides for ease of usage as well as easy integration with home automation system. These gear motors can work from alternating current (ac) electrical system as well as through using low voltage direct current (dc) source of power like batteries as well as solar panel options.most demanded and widely used, the offered range of these rolling shutter motors has been made to offer convenience. We are manufacturing, supplying and providing the services for this motor range by adhering to the quality standards of the industry. Highly useful in shutters of shops, outlets and stores, these shutter motors are operated electrically and constructed in a standard manner that ensures its durability.
...more
Hand Held Metal Detector
Offering PINNACLE Hand Held Metal Detectors (HHMDs), also sometimes called Metal Detection Wands, are a very common security technology - they are used at airports, seaports, public buildings, public transportation facilities, prisons, hospitals, power plants, office buildings, hotels, and casinos, among others - where these devices allow the security staff to more accurately locate the source of an alarm on a scannee’s body, often after a scannee has gone through an Archway Metal Detector (AMD) and caused an alarm. By moving the HHMD around and close to a scannee’s body, the operator can fairly accurately locate sources of metal that may be on, or even in, the person’s body. When a suspect area is located, the HHMD will generally give off an alarm squeal. All such devices operate on variations of the same physical principle as the AMD, that is, they emit time-varying electromagnetic fields and listen for waves coming back from conducting objects. Like AMDs, HHMDs do not have the ability to discriminate between a potentially harmful metallic weapon and some benign metallic item. The responsibility of the operator of the device is to judge whether the squeal he/she heard is truly suspect, then to investigate and determine the cause of it. The object triggering the alert may often be "innocent", for example, a wallet chain, belt buckles, watches, jewelry, shoes containing metal shanks or toes, among others. In these instances, the passenger should be directed to remove the object, which should then be submitted to visual and X-ray examination.In many facilities, the misconception exists that someone known by the screener, such as a fellow employee or other security personnel, should be allowed to circumvent the security screening system. It must be clearly established that in order to ensure the integrity of any security screening process, everyone must be subjected to the screening requirements, including passengers, airport employees, contractors, air crew, and security personnel.
...more
Vehicle Tracking System
electronic vehicle access control system
Boom Barrier
Bollards
flap barriers
turn stile
Road Blocker
Visitor Management System
School Management System
