Pioneer Engg. Works. Shahdara, Delhi

We are the prominent manufacturer and exporter of cutter puller, which is produced using superior quality material. We supply heavy duty haul off cutter puller unit of chain type and endless flat belt type that are suitable for armouring machine, sheathing lines, laying up machines etc. With pneumatic cylinders that are operated open / close and with belt tension system. cutter puller includes portal type take up, which is best suitable for extrusion insulation line for pvc, power, rubber and xlpe etc. It is easily movable on rail tracks with self traversing. Cutter puller is helpful for core insulated cable to keep them in straight line access while process is running open / close, up / down of pintles and is carried out through gear motors. application : armouring machinesheathing lineslaying up machines features : prime quality material useddecrease downtimecut costsheavy duty equipment

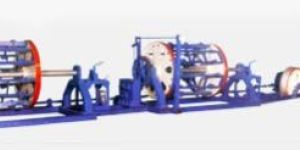

We offer Stranding Armouring Machine is used for armoring of xlpe ht & power cables, control, special instrumentation, power cables etc. we manufacture the best cable stranding armouring machine which is of optimal quality. our machines are equipped with all the latest features and are just according to the latest trends and needs. we use one of the best equipments to manufacture the machines so that there is no compromise in the quality standards. we supply our products at competitive prices as well. because of our quality standards and prices, we have made a position as a top armouring machine exporter in india. application of use : this machine is used for armoring of xlpe ht & power cable, control, special instrumentation, power cables, etc. main features : without back twist for gi strip armour carriage cradles will be of rectangular shaped fabricated fastened between discs supported on bearings at both ends between discs. discs are fitted on hollow shaft tube with under roller or without under roller carriage with heavy duty pedestal bearing to support the carriage.each bobbin is held between epistles with suitable interlock for pointles. individual wires constant tension can be controlled through mechanically or electronically brake tension.heavy-duty enclosed gear box or external gearbox at the rear end of each carriages having provision driving the carriages in anti-clockwise or clockwise direction.single capstan with fleet ring or haul off caterpillar for constant pull and lay, pneumatic/ hydraulic braking system for each carriage. synchronizations can be done through line shaft or with fully automation conrrl of the whole line through digital drives & standard make.

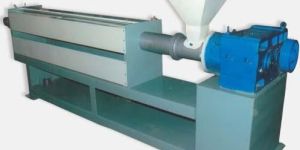

With time and hard effort, we have carved a niche as a principal exporter of optimal quality pvc extruder machine. We supply the best pvc extrusion machine which is highly demanded both in national and international markets. One of the best equipments are used for the manufacture of these machines so that there is no compromise in their quality. Our plastic extruder machine is made just according to the latest trends and needs. Consequently, we are able to supply our machinery at quite competitive prices. We also keep on updating the features of our machines which makes them even more demandable.

We offer Cutter Puller, which is produced using superior quality material. we supply heavy duty haul off cutter puller unit of chain type and endless flat belt type that are suitable for armouring machine, sheathing lines, laying up machines etc. with pneumatic cylinders that are operated open / close and with belt tension system. cutter puller includes portal type take up, which is best suitable for extrusion insulation line for pvc, power, rubber and xlpe etc. it is easily movable on rail tracks with self traversing. cutter puller is helpful for core insulated cable to keep them in straight line access while process is running open / close, up / down of pintles and is carried out through gear motors. application : armouring machinesheathing lineslaying up machines features : prime quality material useddecrease downtimecut costsheavy duty equipment

We supply one of the best core laying machines available in the market today. A core laying machine is an economical and effective solution for cabling and for various types of core laying. The core laying machine that we supply is easy to load and unload. Also, the gear box that we install in the core laying machinery enables machine rotation in both directions to make various cage speeds. We also supply heavy duty laying machine which is in very high demand for its various uses. We have carved a niche as a well known supplier of core laying machinery. applications : it is an are economical& effective solution for cabling & abc core laying, rubber/ pvc insulated core laying or xlp cables core laying with filters. main features : easy to load and unloadhigh capstan radius to protect cable insulation from surface cracking caused by bending.akash box enables machine rotation in both directions (clockwise/ anti clock wise) to make various cage speed.

The armouring cum core laying machine offered by us provides laying of different cores of power cables. Therefore, we provide it in various sizes according to the varied cable sizes. Our armouring cum laying machine is user friendly and can be loaded and unloaded easily. The gearboxes we install in our machines enable the machine to rotate in both clockwise and anticlockwise direction, for various cage speeds. Our machine also consists of an adjustable die holder system which is capable of adopting a hollow die according to the size of the cable. Due to such advanced features in our machinery, we have gained the position of one of the leading armouring cum core laying machine manufacturers. 30 bobbin stranding machine (clockwise anti clockwise) we offer stranding clockwise anti clockwise machine, which is used to prepare multi stands conductor for different sizes of cables. These machine are available in different models depending on the number of cradles that helps in holding the spools. The cage rotates in both the clockwise anti clockwise direction together with it's gear box. The direction is easily changeable with the help of a lever that is provided in the gear box. The machine offered by us possesses has a dia holder head that keeps the shape and sequence correctly. This machine is very easy to operate and mauntain.

We are offering semi automatic coiler.

Pioneer Engg. Works. is a dependable Manufacturer, Supplier, and Exporter of Coil Winding Machine. We are engaged in providing Semi-Auto Coiling Machine that is a perfect coiling machine with high speed and operator safety. Features : The structure of the machine: Heavy duty M.S. Iron Sheet Frame & compact design to cover small space for the foundation.Semi Auto coiling cable from a pay off re-winding line.Non-stop production enhances the efficiency and quantity.All rotating shaft and in terminated shaft to be mounted on cylindrical roller bearings & flange ball bearing units.Clutching system to be provided with the machine through electronic device. Pneumatic breaking system provided for the coiler through disk break.The machine control by AC Drive.Main drive 2.2 kw/3HP 3 phase AC Induction Motor.Traverse unit operated through Rollers. Precise length counting, produce coils with smooth surface, high speed cable coiling, simple operation design, and low investment coiler.Coil length set through control for different sizes of the length of the cable. Properties : Auto TraverseHigh speedAccurate coilingWith pay-off and dancer

We offer to our clients Double Twist Bunching Machine that is fabricated using MS plates, channels and angels. Our High Speed Double Twist Bunching Machine finds application in the engineering and electronic industry. Moreover, High Speed Double Twist Bunching Machine is precision engineered and acknowledged for the following features :Horizontal double twist type for core size up to 2.0 mm diameterSpool size up to 600 mm with traverse up to 300 mmLay range: 20 to 1000 mmMachine RPM up to 1000 mm
