Power Controllers Dealers in Delhi

We supply Thyristor Power Controllers to all our clients. This is an important electronic device that is employed in numerous electronic circuits. We supply these to our loyal clients who regularly purchase from us in bulk and marginal sized quantities. Our delivery services are reputed to be prompt and supply the goods securely packed without any kind of loss in quality or quantity.

• Usage: Peck Drill Cycle controller
• Name: Stepper controller
• MOQ: 1

We are offering drill cycle controller, drill controller tiny controls’ drill controller is a new concept for drilling operations. It is an economical solution designed to automate the repetitive drilling tasks. specifications and features: a 20x4 alphanumeric lcd to display status and settings. Easy to understand menus and smooth navigation. 16 bit controller with 32 bit math for precise indexing. Maximum pulse rate: 40 khz. Control: jogging. Longitudinal speed control. Inputs: 3 npn proxy (msetup, msetup and home) + 1 on-off switch for start- stop. Outputs: 2 (step and direction) for motor +two 12v outputs (for npn proximity type sensor) + 5v output.

• Brand Name: PENTACON
• Model Number: SP05
• Place of Origin: DELHI

We are a reputed name in offering pentacon apfc relays that conform to international quality standards and norms. Only quality raw material is used for manufacturing these products to ensure long term reliability and durability in the final output. This array of products is manufactured using optimum quality raw material and components to ensure durability, reliability and long functional life.

We are offering power controllers. Consisting of incoming and outgoing feeders, copper, aluminium bus bars supported on smc supports with heat shrinkable sleeves, neatly wired with terminal blocks for controls, inter locking etc.

• Type: Automatic
• Frequency: 50 Hz
• Voltage: 380 V To 450 V AC
• Feature:
• Brand: Multispan
• Model Name/Number: APFC-1414
• Power Consumption: 8 VA
• Accuracy: Class 1.0 (Standard)
• Target PF Range: + 0.80 ( Lag ) To - 0.80 ( Lead )
• Operating Mode: Auto / Rotational / KVAR / Manual
• Programmable Hysteresis: 0.00 to 0.03 PF
• Relay Type: 14 Stage Capacitor Relay + Alarm Output (NO-C)
• Output Rating: 5A, 250V AC
• Operating Temp.: 0 DegreeC to 55 DegreeC
• Relative Humidity: UP to 95% RH (non-condensing)
• Protection Level: IP-65 (Front side) As per IS/IEC 60529 : 2001
• Overload: Up to 6A Continuous
• Size: 144 (H) x 144 (W) x 75 (D) mm
• Panel Cutout: 137 (H) x 137 (W) mm

• Power: Electricity

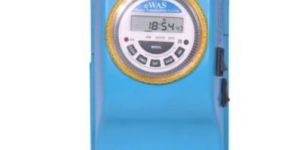

• Usage: Electrical Control Panel For Water Pump
• Theory: Centrifugal Pump, Water Pump Control Panel
• MOQ: As Per Client Requirement

With the assistance of our packaging experts and advanced machines, we became capable of meeting the standard as well as customized packaging requirements of the clients. To handle both automated inbound and outbound orders, we have exceptional warehousing solutions. We keep the wide array of products sorted in the warehouse to make sure that the delivery commences systematically.

• Power: DC
• Usage/Application: Generator
• Brand: Cummins
• Model Name/Number: HMI 211

Features Micro controller based DSP logic for measurements All measurements with Class 1 accuracy Input sensing either through line-to-line voltage with a CT or individual phase with a CT Programmable external PT ratio for HT sensing Voltage, Load I, Cap I THD measurement Various modes of Programming step kvar, Unequal, binary, un-equal, C-series, E-series RS232 OR RS485 port with TAS/MODBUS/GSM protocol in front facia for data-downloading / MODBUS connectivity / GSM connectivity Protections provided: - Over/Under Voltage, Over/Under Load, Over/Under Cap. Current/THD, Load Unbalance, over temperature, Out-of-Steps indication

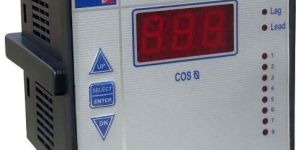

Automatic Power Factor Controller (APFC) is meant to provide balanced reactive power compensation in an electrical system through automatic switching of capacitor banks by Thyristor Switching, Contractor Switching or Hybrid Switching using Programmable Logic Controllers (PLC). High Transmission power consumers benefit largely owing to reduced KVA consumption and incentive/no penalty due to resultant better Power Factor. Indirectly, the consumer also contribute to the National cause of energy saving and also to reduce CO2 emissions

• Brand Name: Multispan
• Frequency: 50 Hz
• Humidity: UP to 95% RH (non-condensing)
• Country of Origin: Made in India
• Voltage: 380 V To 450 V AC
• Model Name/Number: APFC-1416
• Power Consumption: 8 VA
• Accuracy: Class 1.0 (Standard)
• Ip Rating: IP-65 (Front side) As per IS/IEC 60529 : 2001
• Display Type: 4 digit,7 segment white LED Display
• Operating Temp.: 0 DegreeC to 55 DegreeC
• Programmable Hysteresis: 0.00 to 0.03 PF
• Operating Mode: Auto / Rotational / KVAR / Manual
• Target PF Range: + 0.80 ( Lag ) To - 0.80 ( Lead )
• Panel Cutout: 137 (H) x 137 (W) mm
• Size: 144 (H) x 144 (W) x 75 (D) mm
• Key: SET/ENT, INC, DEC, EXIT
• Overload: Up to 6A Continuous
• Secondary Current Ac: 0.5 To 5.0 Amp
• Primary CT Ratio: 5 to 9995 Amp Selectable

Electric Panel, Three Phase Electric Motor, hidrolic control panel

Power Controller, protection bellow cover, cable drug carriers

power station clutch controllers, Power Station Equipment

SCR Power Controllers, Soft Starter, Programmable Logic Controllers

We offer premium quality Solar Battery Charge Controller for solar home lighting systems, street lighting systems and for various solar PV applications. Our Solar Battery Charge Controller has excellent charging algorithm and temperature compensated set points. Our Solar Battery Charge Controller uses PWM charging technology, so that as the battery reaches full charge, the PWM pulses slower, gradually tapering off the charge. Temperature compensation feature in our Solar Battery Charge Controller adjusts the set point voltages according to the ambient temperature. Features Excellent charging algorithmTemperature compensated set points Adequate protections and indications Negligible voltage drops Self consumption less than 5 mA Offers long life to batteries Non-corrosive terminals Compact in size and easy to install Protections Overcharge Deep discharge Reverse polarity and lightning protections are incorporated in the electronic control card. Temperature compensation and blocking diodes are also built in control units. » Technical Specifications GeneralApplicationSolar electrificationUseBattery Charge controllerOperating temperature-10oC to 65oCStorage temperature-10oC to 85oCCharge controller typeMicro controller basedCharging typeTwo step series PWM charging algorithmBattery temperature compensation-3mV to -4mV/oC/cellSolar Module size (Max.)90WpIndicationsCharging, Low Battery, Full ChargeElectricalNominal system voltage12V DCCharging current6ALoad current6ACharge controller efficiency>95%Idle consumption

Power Factor Controllers, Battery Chargers, electrical measuring instruments

current controllers, Voltage Controllers, frequency controllers

battery charge controller, telephones, epabx, telecommunication equipments

automatic power control panel, Control Panel Board, Distribution Panel
