Power Factor Meter Dealers in Delhi

Measurement of power factor in AC system on L.T. Circuits having higher current load without interrupting circuit.

• Size: 99 mm x 98 mm x 65 mm(depth)
• Brand: Unitech
• Model: PF
• Usage: Laboratory

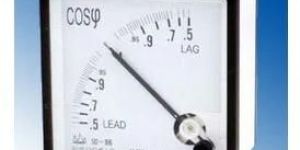

Power Factor Meter (Panel Type)   Power factor of a circuit is the ratio between the effective power and the apparent power and is measured with the help of a power factor meter. This panel type pwer factor meter has iron free electrodynamometer coil movement. It is available in two sizes: 96x96mm and 144x144mm

• Dimension: 96x96x57 mm.
• Voltage: 500V

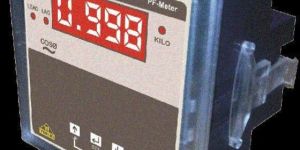

Power Factor of the System LED indication to indicate Lead and lag status, Microcontroller based meters with low VA burden, 4 digit seven segment display, Resolution 0.001, True RMS measurement of parameters, Touch proof voltage & current terminals. Compact size and light weight. ABS dust-proof rugged casing.

• Type: Single phase/Three phase single element
• FEATURES: Absence of current is indicated by "Err",Negative sign indicates lagging P.F.
• OPERATIG VOLTAGE: 63.5V/110V/240V/440V., 2VA.
• OPERATING CURRENT: 1A/5A, 0.5VA.
• RANGE: 0.1 Lag - 1 - 0.1 Lead
• ACCURACY: ± 2°
• AUXILIARY SUPPLY: 110V / 240V ±10%, 50 / 60 Hz, 3VA.
• INSULATION RESISTANCE: Greater than 20 Mohms at 500V DC
• DIELECTRIC STRENGTH: 2kV RMS for 1 minute.
• OPERATING TEMP.: 0°C to 55° C.
• STORAGE TEMP.: -20°C to 70°C.
• HUMIDITY: Up to 95% RH.
• DISPLAY COLOUR: Red

• Display Type: Analog
• Model Name/Number: APF 96x96 or APF 144x144
• Usage/Application: Industrial
• Display Size: 96x96 mm and 144x144 mm both avilable
• Material: Plastic

Salient features available in single phase two wire & three phase four wire. universal auxiliary supply – 80 to 300v acdc. bright 4 digit 14 mm led display. laglead indication on the display. measurement range : zero lag – unity- zero lead. accuracy : +- 0.01%. resolution : 0.01 (for single phase p.f. Meter). 0.001 (for three phase p.f. Meter).

• Features: Noise-free operations, Robustness, High strength .

• Model: ALABS-A77-003
• Categories: Analog and Digital Meters
• Rated Accuracy: ± 1.0%
• Phase Wattmeter: ± 3° (Electrical)
• Position: Horizontal
