Pressure Sand Filters Dealers in Delhi

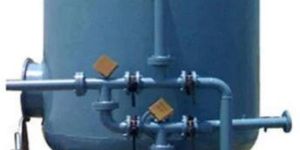

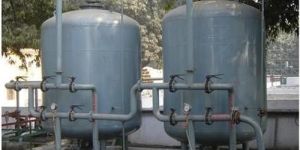

These filters are the most popular method for removal of turbidity from water. The Pressure Sand Filter consists of a multiple layer of sand with a variety in size and specific gravity. These Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop. These Filters are custom designed to suit the process requirement. These filters are offered in Mild Steel, FRP or SS construction with face piping and associated Valves.

• Brand Name: Water 2
• Material: Using quality approved raw material
• Condition: Good
• Product Name: Pressure Sand Filter
• Place Of Origin: Delhi
• Min. Order Quantity: As per client requirement

Pressure Sand Filter is widely used for water filtration in various industries. The Pressure Sand Filter that we offer by us is manufactured using quality approved raw material and latest technology in accordance with set industry standards. Provided Pressure Sand Filter is strictly examined by our quality controllers to provide a defect free range at the customers’ end. Our Pressure Sand Filter is known for its rigged construction, easy installation and trouble-free performance.

The Pressure Sand Filter provided by the company has a mild steel pressure vessel that has external valves for controlling the flow of water during treatment process. The media of our Pressure Sand Filter has layers of crushed gravel and graded pebbles. An inlet distributor is equipped in it that directs the inflow of raw water upwards towards the top-dished end. Then the filtered water goes through bottom collecting system that controls the assists in the cleaning of the filter. This Pressure Sand Filter uses coagulant solution that is dosed simply or using chemical dosing system. The company offers Pressure Sand Filters that have their internal surface painted with anticorrosive paint or epoxy based paint. Flow indicators are given as optional extras for controlling and measuring flow of water. Pressure Gauges are also provided at the inlet and outlet. An orifice board is fitted in the drain for controlling flows. Unlike conventional sand filters, this Pressure Sand Filter uses a special media that permits flow velocities of water nearly three times.

• Country of Origin: India
• Material: SS or MS
• Size: Starting at 1 ton

Tertiary treatment equipment to reduce TSS

Owing to our flawless transit system, we are capable of delivering the orders within the promised time frame. Serialization is done before the final packaging and storing of the products in our capacious warehouse. We keep the products separated to ensure rapid delivery in the committed time span.

• Vessel Diameter: 1000 mm
• Vessel Height: 1800 mm
• Country of Origin: Made in India
• Voltage: 440 V
• Frequency: 50 Hz
• Usage/Application: Industrial
• Flow Rate: 10m3/hr
• Automation Grade: Semi-Automatic
• Body Material: Mild Steel
• Phase: 3 Phase

Pressure Sand Filter is highly recommended for the removal of suspended & visible impurities like sand, dust particles & heavy metals etc.PSF is an ideal solution for the systems with high sediment, silt, sand, and turbidity. Our Sand filters are well established in media filtration technology. The sand filters are specially designed to take care of the range of suspended impurities.             Our unique design ensures the maximum utilization of the surface area, lesser pressure drop across the pressure bed and effective elimination of the impurities. The strength, stability and micro-porous character of filtration media make our sand filter suitable for virtually every application in the water treatment industry.               Applications for Sand filtration :   • Preparation of cooling water• Treatment of waste water• Production of drinking water• Filtration in swimming pools• Pre filtration for membrane systems• Filtration of gray or surface water• Swimming pool water

Pressure Sand Filtration is frequently used and very robust method to remove suspended solids from water. Pressure Sand Filter is an ideal solution for the systems with high sediment, silt, sand, and turbidity. The sand filters are specially designed to take care of the range of suspended impurities. Sand filters can be supplied in different sizes and materials both hand operated or fully automatically. Key Advantages of the product: FRP,MSEP,MSRL,SS Vessel available Efficient Turbidity & TSS Removal Filter up to 20 to 30 Microns Standard & effective silica quartz sand media Air scouring available for high flow pressure vessel Automatic Valves are provided as per customer’s requirement Manual & Automatic features are provided

• Vessel Diameter: 800-1000 mm
• Vessel Height: 1600-1800 mm
• Flow Rate (cubic meters/hr): 500-1000
• Temperature: 0

• Material: Mild Steel
• Finishing: Powder Coated
• Color: Blue
• Voltage: 240 V
• Frequency: 50 Hz
• Brand Name: Aqua Soft
• Flow Rate: 500 m3/hr

The company has acquired vast expertise as a Manufacturer, Exporter and Supplier of Pressure Sand Filter in Delhi (India). The Pressure Sand Filters have a sand bed filter and they work by offering a large number of changes to the particulate solids to be captured on the sand grain surface. with the fluid flowing through the fine holes as well as the porous sand particles, the particulates come in close contact with the sand grains and are captured. The sand bed is treated with water which facilitates the removal of the suspended solid particles, which consist of the coagulated matter that is left in the water as well as the waste water after purification. Used in various clarifiers like Tube Settler, Lamella Clarifier, Up flow Filter to name a few, the Pressure Sand Filter also removes the small amounts of suspended solid matter that do not coagulate. Components Of Pressure Sand Filter : Structure to house mediaFilter mediaGravel media support layerUnder drain systemValves and piping systemFilter backwash systemWaste disposal system Types Of Pressure Sand Filter : Iron Removal FilterHorizontal Pressure Sand FilterSide Stream Pressure Sand FilterDual Media FilterMulti Grade Sand FilterRapid Gravity Sand Filters Features Of Pressure Sand Filter : Automatic valvesFRP Pressure Sand FilterMade of cast steel and mild steel with epoxy paintMSEP, SS vesselPresence of silica, quartz and sand as mediaAir scouring for high flow pressure vesselManual, semi-automatic and fully automatic configurationsMulti port valvesRemoves turbidity and TSSActivated carbon filter ACFUsed in various water treatment plants

  Filtration plant is used to remove foreign suspended particles color odor from the water so that water can be used in process without affecting the life of equipment or choking the supply lines In drinking purpose filtration plant is very important as bore-well water may contain fine silica clay color odor This filtration is done by multi grade filters activated carbon filters dual media filters

• Vessel Diameter: 0-200 mm, 200-400 mm
• Vessel Height: 500-800 mm, 800-1000 mm
• Flow Rate (cubic meters/hr): 0-500, 500-1000, 1000-2000
• Media Quantity: 0-50 kg, 50-100 kg
