Protective Relays Dealers in Delhi

The Protection Relays, provided by us, are known for its excellent performance as well as high durability. Now purchase Protection Relay at highly affordable prices from us. We are its well-known supplier in the country. Buyers can rely on us for the best in line products as we prepare them using the finest grade raw material and modern techniques. Also, the basic material is sourced from the reliable places.

CG numerical communicable relays are indigenously developed products whose design is based on microprocessor technology using DSP. The products are designed with focus on accuracy and speed of operation, complying with the latest IEC standards.  Multifunction Relay Platform Over current and earth fault relay Under voltage and over voltage relay Self powered relay Circuit breaker manager   Numerous integrated communication protocols are available for flexible integration in most substation control SCADA systems. The relays are fully type tested as per latest IEC standards from accredited laboratory.

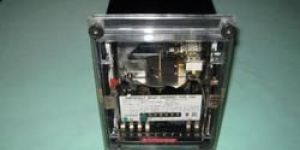

We are offering power protection relay. 1) electromechanical (induction) over current relay (idmt) test kit. 2) electromechanical (induction) earth fault relay (idmt) test kit. 3) electromechanical (induction) directional over current relay (idmt) test kit. 4)electromechanical (induction) over voltage relay (idmt) test kit. 5)electromechanical (induction) under voltage relay (idmt) test kit. 6) static over current relay (idmt) test kit. 7) static over voltage relay (idmt) test kit. 8) static over voltage relay (idmt) test kit. 9) static % differential relay testing kit. 10) solid state negative phase sequence current (dmt) test kit. 11) numerical over current relay test kit. 12) numerical over voltage/under voltage relay test kit. 13) numerical over/under frequency relay test kit. 14) numerical distance relay test kit. 15) numerical %biased differential relay test kit. 16) universal relay test kit. 17) fuse and mcb test kit. 17) c.t test kit. 18) p.t's test set. 19) single phase energy meter testing kit. 20) three phase energy meter testing kit. 21) air circuit breaker with test kit.

• Frequency: 50Hz
• Warranty: 1Year
• Country of Origin: India

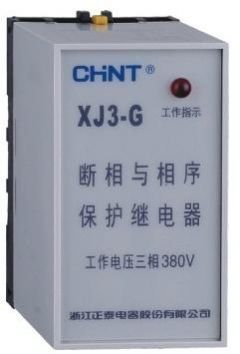

Under and Over Voltage Relay  C&S Make

• Voltage: 380 VAC
• MODEL NUMBER: XJ3-G
• TYPE: MOTOR PROTECTION RELAY
• PINS: 8 PIN
• BASE: PROVIDED WITH RELAY
• SIZE: 75 X 42 X 91

xj3-g ac380v phase sequence protection relay three-phase unbalanced motor protectorxj3-5phase sequence and phase failure protection relay

• Model Number: P63X
• Brand Name: Schneider
• Number of Poles: 8 Poles
• Application: Transformer protection
• Type: Transformer Differential Protection Relays
• Relay Type: Transformer differntial Protection Relay
• Voltage Type: DC
• Voltage (V): 1A/5A

CSENEX Series offers a compact Multi-functional Over-current protection solution for Feeder, Generator, Motor & Transformer segment. CSENEX-l Family of protective relays are numeric relays that provides multi protection and monitoring with reliable and fast protection solution in a single unit. In this family of CSENEX series, the CSENEX-I 150 is an advanced feeder protection solution which has fast, sensitive and secure protection forfeeder internal & external faults. CSENEX-l offers different model based features to coverthe wide range of user.The CSENEX-I relays have been designed for controlling, protecting and monitoring industrial, utility distribution networks and substations. They can also be used as part of a protection scheme for feeders, transformers and generators.Three Phase Over-current Protection (50/51): The independent two stages are available for phase fault protection. For l> the user may independently select definite time delay or inverse time delay with different type of curves. The second Hi—Set stage can be configured with definite time only.Earth Fault Protection (50N/51 N):  The independent two stages are available for earth fault protection. For first stage (le>) the user can select definite time delay or inverse time delay with different type of curves. The second Hi-Set stage can be configured with definite time only.   Benefits Three phase instantaneous protection Earth time over-current and earth instantaneous over current Circuit breakerfallure detection Trip circuit supervision Cold Load pickup Harmonic Blocking Fault recorder Event recorder Communication (Local & Remote) FEATURES 1A & 5A rated CT input (programmable) Draw out with self CT shorting DI/DO programmable matrix Protection blocking through DI Three phase time over-current protection

• Ambient Temperature: 0 to 50 Degree Celsius
• Phase: Three Phase
• Frequency: 50 Hz
• Voltage: 415 V

• Voltage: 125 Volt
• Number of Poles: 3 Pole

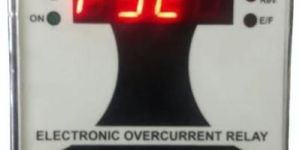

• Type: Digital
• Voltage Type: DC
• Measuring Parameter: 3 ph 4 wire, 3 ph 3 wire, 1 ph 2 wire

• Relay Type: 1 C/O (NO-C-NC)
• Brand Name: Multispan
• Voltage: 100 to 270 V AC
• Frequency: 50-60Hz
• Model Name/Number: CPR-126
• Display: 3 digit, 1 line, 7 seg, 0.4" Red LED
• Overall Dimension: 75 (H) x 45 (W) x 110 (D) mm
• Primary CT value: 5 to 999 Selectable
• Secondary current AC: 0.5 to 5 Amp AC
• Resolution: 0.01A, 0.1A, 1A
• Key: SET, INC, DEC/ RST
• Output Rating: 10A, 230V AC/28 V DC
• Relative Humidity: UP to 95% RH (non-condensing)
• Operating Temp.: 0 DegreeC to 55 DegreeC
• Over Current: 0.00 - 125% of primary C.T value
• Under Current: 0.00 to 100% of primary C.T value
• Features: True RMS Measurement, Auto/Manual reset option, Three phase current display with LED indication

• Certification: CE Certified
• Voltage: 110V, 220V, 380V, 440V
• Condition: New
• Frequency: 50Hz, 60Hz
• Type: Short Circuit Protection Relay
• Application: Power Protection

• Relay Type: Voltage Relay
• Voltage: 220 V
• Material: Mild Steel
• Country of Origin: Made in India
• Height: 2 Feet
• Usage/Application: For Transformer
• Surface Finish: Powder Coated

• Brand Name: NOVATEK ELECTRO
• Relay Type: Motor Protection Relay
• Phase: Three Phase
• Number of Poles: 3 Pole, 4 Pole
• Voltage Type: AC
• Voltage (V): 380 - 415V AC

We offer wide range of protection & distribution relays, conforming to indian & international standards, including: electromechanical type relays staticsolid state type relays numerical type relays (communicable & non-communicable) comprehensive multi functional type relays application based relays specialized customized relays & solutions power monitoring software & solutions.

• Relay Type: 1 C/O (NO-C-NC)
• Voltage: 100 to 270 V AC
• Frequency: 50-60Hz
• Overall Dimension: 75 (H) x 45 (W) x 110 (D) mm
• Model Name/Number: CPR-126
• Brand: Multispan
• Display: 3 digit, 1 line, 7 seg, 0.4" Red LED
• Primary CT value: 5 to 999 Selectable
• Secondary current AC: 0.5 to 5 Amp AC
• Resolution: 0.01A, 0.1A, 1A
• Key: SET, INC, DEC/ RST
• Output Rating: 10A, 230V AC/28 V DC
• Relative Humidity: UP to 95% RH (non-condensing)
• Operating Temp.: 0 DegreeC to 55 DegreeC
• Over Current: 0.00 - 125% of primary C.T value
• Under Current: 0.00 to 100% of primary C.T value

• Application Industrial Frequency 0.25, 0.5, 1 Hz Phase Three Phase Current Loop Output 0-20 mA: Application
• Industrial: Frequency
• 0.25, 0.5, 1 Hz: Phase
• Three Phase: Current Loop Output
• 0-20 mA:
•  :
•  :

• Type: Protection Relay
• Material: PVC
• Application: Power Protection
• Color: White
• Current Type: AC

• Relay Type: Voltage Relay
• Voltage: 24 VDC
• Number of Poles: 2 poles
• Frequency: 50 Hz
• Model Name/Number: CGV-24V
• Brand: Cropmton
• Current: 5 Amp
• Display: Digital
• Coil Type: Non Latching

• Condition: New
• Current Type: AC, DC
• Number of Poles: 2 Pole
• Application: power relay
• Coil Type: Latching

Proper application and coordination of over-current relays and other protective devices is vital in a system requiring reliable electrical service. expert engineers bring the critical experience needed for the proper application of ANSI and NEC requirements to equipment protection. In addition to relays that respond to short circuits, low-voltage breakers, differential, directional, power, under-voltage, out-of-step, and other special protective relays often need to be set.

• Voltage: 110V ac
• Type: Overvoltage Relay
• Usage/Application: Industrial
• Brand: ALSTOM
• Model Name/Number: VDG11AF001SBCH
• SKU Code: voltage-relay-VDG11AF001SBCH
