Triplex Pump
Triplex pump High Pressure are profusely used in engineering, food , oil ,chemical Paper other industries. Triplex pumps are in adherence to the high ISI standards the range is acclaimed for features such as easy setting up, uncomplicated and practical design, sturdy structure, minimum variable parts, and hassle free maintenance. The physical features that distinguish this range are maximum pressure up to 750 Kg/cm2 and volumetric efficiency 95 % (maximum).. Design Features : Liquid closing stages Housing: supporting grey iron casting, weighty wall segments to guarantee sturdy manufacture Crank Shaft: completely machined from concrete forging and refined with spherical network Bearings: big narrowing roller main bearings facilitating impeccable service Connecting Rods: ‘H’ Type supple iron linking rods with improvised babbit lined steel back sheet with crank end and bronze bussing at crossheads Cross heads: hefty packed piston type with addition for joining plungers beyond the crankshaft housing Driver End Valve Chest: Valve covers bolted. No internal threads to decay suitable admission to specific valves. Stuffing Box: transposable type additionally deep stuffing boxes. Stuffing boxes for flushing cooling heating on all models offered. Plungers: linked to the cross head wing outside the crank case for trouble-free elimination of plungers End Connections: Suction and discharge connections on both sides for elasticity in piping arrangements.
...more
Submersible Pump
In the agricultural sector the submersible bore well pump’s functions are to cope with both seasonal and climatic conditions which affect the supply of water for agricultural use. Conversely the submersible pump can also be used for the removal of water when fields become flooded.The ability of the submersible pump to operate when fully submerged makes it ideal for use in sewage treatment plants and the ability of some varieties of these pumps to deal with semi solid.waste enables them to continue functioning in the sometimes hostile environment that is found in sewage treatment facilities The submersible borewell pump’s functions are also useful in the oil exploration industry where these pumps are often used both in the boreholes which supply water to remote drilling locations as well as being used in the exploratory wells themselves. The submersible pumps operate by pushing the liquid to the surface while submerged, rather than jet pumps which can be stationed on the surface and operate by pulling the liquid from the well. The submersible borewell pump’s functions are made possible by splitting the controller mechanism and generator and the pump itself. We supply multistage centrifugal pumps with radial flow or mixed flow impellers which operates underwater ranging from 4” and above. Prime mover of wet type, water lubricate, Water cooled , rewind able motor. These pumps are Majorly used in Residential complex, Irrigation of field , Industrial water supply
...more
peripheral pump
The characteristics of the peripheral pump make them suitable for use in a wide range of industrial sectors where small volumes are to be pumped against high pressures. They can also be installed in applications at a low intake head without creating cavitation problems. A peripheral pump is a niche product in-between a displacement pump and a centrifugal pump, in which the medium is pumped into a peripheral channel Peripheral pumps have the following characteristics: The ability to transport gas without interrupting the fluid flow or damaging the bearings due to dry running. Maximum power consumption at their highest head and lowest flow rate. Steep capacity-head (Q-H) curves ideal for pressure-dependent system regulation. Insensitive to reverse rotation. Very low suction head (NPSH) required. Narrow columns (peripheral channels) not suitable for abrasive particles in the fluids. Application Domestic Water Supply Home Pressure Boosting Garden / Fountains Over Head Tanks Construction Site Features Cast Iron Casing and Bracket with Brass Inserts Brass Impeller Stainless Steel Shaft Super Enamelled Winding Wires Insulation Class F / B Flow Max 50 lpm Head Max 55 m Suction lift Max 7 m Liquid Temp upto 50° C Motor 2 pole Induction motor, 50 Hz, 2900 rpm, single phase 230 v +5% -15% Ball bearings
...more
Milk Packing Machine
We provide Milk packing machine which are manufactured in India , these machine can be used for various applications.
...more
ice cream plant
Every region, state ,country have there own unique way of making ice cream which was handed over to them by there culture ,so there are several different ways too make ice cream ranging from different flavors , colors, tastes , shapes. We have put down basic way of making ice cream in the below steps . the ice cream base with the right percentage of milk fat and its ingredients has to be chosen by the ice cream maker depending on his region . steps of ice cream processing 1. Blend the Ice Cream Mixture the ice cream make has to ensure the milk fat percentage , Sugar, cream and blend to ensure complete mixing of liquid and dry ingredients. 2. Pasteurize Mix Ice cream mix is pasteurized at 155°F (68.3°C) for 30 minutes 3.Homogenize Ice cream mix is homogenized (2500 to 3000 psi) to decrease the milk fat globule size to form a better emulsion 4. Age the Mix Ice cream mix is aged at 40°F (5°C) for at least 4 hours or overnight 5. Add Liquid Flavors and Colors Liquid flavors and colors may be added to the mix before freezing 6. Freeze Ice cream Mix is frozen in continues freezer 7. Add Fruits, Nuts and Flavorings As desired, depending on the product. 8. Package As desired, depending on the product. 9. Harden The ice cream is cooled as quickly as possible down to a holding temperature of less than -13°F(-25°C). Feature Extra Rich Hygienic construction & Easy to clean Contact Parts Made of SS Water jacket construction for even heating Low power consumption LPG & Heater system Showing 1 to 6 of 6 entries PreviousNext MOC of Crank case: High quality cast iron Effective cooling facilitated through Splash lubrication MOC of contact parts and homogenizing chamber: AISI-316 MOC of homogeniser valve assembly: Stellite Single and double stage homogenizing head (manual/hydraulic) Imported diaphragm type pressure gauge Designed for CIP cleaning MOC of Enclosures: Imported plastic coated AISI- 304 sheet
...more
Homogenizer
The Standard Homogenizers that we offer to our clients are of maximum quality standard and are ISO certified . These are fabricated in our highly sophisticated manufacturing unit which is located in INDIA . We make use of the most advanced and high capacity tools and machinery to engineer these products to the upmost quality as per the Indian standard . Our Homogenizers can be used in various industries such as dairy (Milk, clarified butter, etc) juices (mangoes , oranges etc) and chemical for which our dairy homogenizer , juice homogenizer and chemical homogenizer are manufactured with little modifications made to suite there respective industries The technical Specification of our homogenizers is mentioned below: MOC of Crank case: High quality cast iron Effective cooling facilitated through Splash lubrication MOC of contact parts and homogenizing chamber: AISI-316 MOC of homogeniser valve assembly: Stellite Single and double stage homogenizing head (manual/hydraulic) Imported diaphragm type pressure gauge Designed for CIP cleaning MOC of Enclosures: Imported plastic coated AISI- 304 sheet
...more

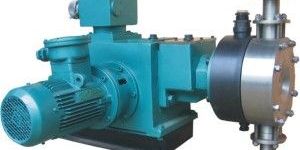

Dosing Pumps Metering Pumps
Hydraulic Diaphragm Metering/Dosing Pumps. A Hydraulic Diaphragm pump is also a positive displacement pump. This model comprises of hydraulically actuated diaphragm Liquid Heads incorporating Diaphragm Actuated Replenishing system. The pump consists of three sections which are the Drive End, Hydraulic Chamber End, and the Liquid End (Diaphragm Head). The Drive end mechanism for a plunger pump and Hydraulic diaphragm pump is the same. The diaphragm head is fitted to the stroke length control mechanism. The stroke variation mechanism moves the plunger in a closely guided bush. The plunger displaces hydraulic fluid which acts on the diaphragm to deflect it. This deflection of the diaphragm causes the suction and discharge process of the liquid. The diaphragm also acts as a perfect seal between the hydraulic oil and the liquid being pumped creating a hermetically sealed system making the pump safe for toxic fluids and other hazardous fluids Features: Pump performance in accordance with API 675. Steady state accuracy±1% •Linearity & Flow Repeatability±3% Leak less Pump. Low maintenance & accuracy for longer period Used for pumping toxic/hazardous chemicals
...more
Cup filling And packing machine
Our State of the art cup filling and packing machine are designed and made in INDIA with skilled professionals having experience of more than 20 year in this industry . our products are all made in food grade materials can be used for various application like food ,chemical ,water etc . We provide three range in packing manual , semi automatic and fully automatic machine . our control panel and pneumatic controls are well branded companies like delta or L&T The two most commonly used variants are 1 Automatic :
...more

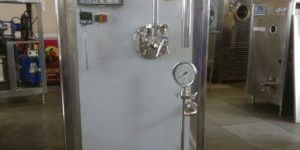

Continuous freezer For ice cream
Feature Body Structure & Plant are Made in SS304 Hard Chrome Plated Cylinder with puff insulated SS outer cover Auto Hot gas Facility control Ice cream hardness SS Diaphragm Pressure Gauge Compressor is Protected by Relay and pressure
...more
Centrifugal Pump
We are well established as one of the leading manufacturers and exporters of Three Phase Centrifugal Monoblock Pumps. Our pumps are compactly integrated with the appropriately mounted pump and prime-mover on the same shaft. These pumps are assembled by using high quality components and materials Mostly used in a wide range of voltage, these Three Phase Centrifugal Monoblock Pumps are available at discounted prices Applications: Domestic & Industrial Water Supply. Sprinkler & Drip Irrigation. Fire Fighting Application. Water Treatment Plant. Gardening,
...more
automatic bottling machine
We supply three type of filling machine for Non soda drinks . 1. manual filling machine 2. Semi-automatic Bottling machine 3 Fully Automatic Our products are manufactured in India and assembled in India. We use food graded stainless steel material for our machinery, which are made in accordance to the our stricken manufacturing Normans for long lasting function of our equipment . our filling machine is suitable for all kinds of non -soda drinks 1. Manual filling machine – our manual filling machine are manufactured in India & requires labor ,as the each and every bottle has to be placed in the holder by hand and filled as per desired quantity and place it on the conveyor belt ,where another worker will hold the bottle and cap the bottle using the manual capping machine , we have from 2 nozzle to 4 nozzle .These machine are generally used in start up and small scale companies ,our machine is compatible with all non -soda drinks, these machines can be use as mango juice filling & capping machine , lemon juice filling and capping machine litchi Juice filling Cranberry juice filling . As the machine is manual ,it can be used to fill any size bottle ,plastic or glass as long it fits the conveyor belt but its advice able to use standard pet bottle or glass bottle for filling juice . 2. Semi-automatic Bottling machine – our Semi -automatic filling and capping machine are manufactured in Indian requires less labor than the manual version as the worker has to place the bottles in the conveyor belt and our filling machine will be timed to the desired volume ranging from 200ml to 1000ml (we can also custom the amount of liquid to be filled as per your capacity ).After the bottles have been filled a worker can use pneumatic caper to seal the bottle .This machine is generally used in for mango juice filling and capping ,lemon juice filling and capping ,litchi juice filling Cranberry juice filling & capping . This machine can also be used to fill Lassi , Flavored milk, mineral water , Capping of the bottles if it be crown or pet bottle manual or pneumatic capping machines can be supplied 3. Fully automatic filling machine – Fully automatic filling Machine are manufactured in India and require very little to no labor as the bottles have to be placed in the machine and the our machine will automatically rinse the bottles and fill in the desired liquid and cap the bottles automatically . this machine is the most cost effective machine as it requires no to minimum labor and is manly used in high production of mango juice filling rinsing and capping ,lemon juice filling , rinsing and capping ,litchi juice filling , rinsing & capping Cranberry juice filling , rinsing & capping, This machine can also be used to fill Lassi , Flavored milk, mineral water . we can provide both pet bottle capping and crown capping . (B)Bottle filling machine (soda) We supply three type of filling machine for soda drinks . 1. manual filling machine 2. Semi-automatic Bottling machine 3 Fully Automatic Our products are manufactured in India and assembled in India. We use food graded stainless steel material for our machinery, which are made in accordance to the our stricken manufacturing Normans for long lasting function of our equipment . our filling machine is suitable for all kinds of soda drinks 1. Manual filling machine – our manual filling machine are manufactured in India & requires labor ,as the each and every bottle has to be placed in the holder by hand and filled as per desired quantity and place it on the conveyor belt ,where another worker will hold the bottle and cap the bottle using the manual capping machine , we have from 2 nozzle to 4 nozzle . these machine are generally used in start up and small scale companies ,our machine is compatible with all non -soda drinks, these machines can be use as mango juice filling & capping machine , lemon soda juice filling and capping machine litchi Juice filling Cranberry soda juice filling . As the machine is manual ,it can be used to fill any size bottle ,plastic or glass as long it fits the conveyor belt but its advice able to use standard pet bottle or glass bottle for filling juice . 2. Semi-automatic Bottling machine – our Semi -automatic filling and capping machine are manufactured in Indian requires less labor than the manual version as the worker has to place the bottles in the conveyor belt and our filling machine will be timed to the desired volume ranging from 200ml to 1000ml (we can also custom the amount of liquid to be filled as per your capacity ).After the bottles have been filled a worker can use pneumatic caper to seal the bottle .This machine is generally used in for mango juice filling and capping ,lemon soda juice filling and capping ,litchi juice filling Cranberry juice filling & capping . This machine can also be used to fill Lassi , Flavored milk, mineral water , Capping of the bottles if it be crown or pet bottle manual or pneumatic capping machines can be supplied 3. Fully automatic filling machine – Fully automatic filling Machine are manufactured in India and require very little to no labor as the bottles have to be placed in the machine and the our machine will automatically rinse the bottles and fill in the desired liquid and cap the bottles automatically . this machine is the most cost effective machine as it requires no to minimum labor and is manly used in high production of mango juice filling rinsing and capping ,lemon juice filling , rinsing and capping ,litchi juice filling , rinsing & capping Cranberry juice filling , rinsing & capping, This machine can also be used to fill Lassi , Flavored milk, mineral water . we can provide both pet bottle capping and crown capping .
...more
Air Operated Diaphragm Pump
The Air Operated Double Diaphragm Pump (AODD) is a double acting positive displacement diaphragm pump. The pump displaces fluid from one of its two liquid chambers upon each stroke completion. Air Operated double diaphragm pumps are widely used for their simple, portable construction. Air Operated Diaphragm pumps are employed in a host of difficult fluid transfer applications ranging from circulation duty in cleanroom environments to municipal sludge pumping. AOD Pumps are intrinsically safe by design, offering a wide range of material and elastomer options, giving you the optimum solution for your process. Working Principal of Air Operated Double Diaphragm Pump The air is ported through the air valve piston into the centre block, where two directional ports direct the air to the left or right side of the pump. The pump has two liquid chambers, two air chambers and two diaphragms. In each pair of chambers, the liquid and air chambers are separated by a flexible diaphragm. When in the air chamber, the air pressure is applied on the back side of one diaphragm forcing the product out of the liquid chamber into the discharge manifold. As the two diaphragms are connected by a rod, or shaft, the other diaphragm is pulled towards the centre of the pump. This causes a suction stroke on the other side. Ball valves open and close alternately to fill chambers, and block back-flow. At the end of the shaft stroke, the air mechanism (air valve piston) automatically shifts the air pressure to (opposite side) reverse the action of the pump, simply put a 1 : 1 ratio reciprocating pump. ADVANTAGES OF AODD PUMP No seal , No Leakage Self Priming,No need of foot valve. Variable flow with same pump. Can be submerge. Less stock of spare to be maintain. No skill person is needed to operation and repair pump. Light weight, handy in use. No rotation no wear & tear hence low maintenance. Pump can run dry. Stop Automatic on closing of discharge Valve. Can handle 2 to 10 mm size solid particles. Also Can be used upto accuracy 3 to 5 %. No motor, No fire. In short very simple and versatile pump. OPERATION PRINCIPLE Dry air is given as input to air valve. Air will push both diaphragm alternatively, Four ball valves will act as NRV for suction and delivery. As per liquid compatibility MOC of diaphragm ,valve and wetted part selected APPLICATIONS To handle viscous chemicals, slurries To transfer explosive liquids ,solvents ,acids . Pharmaceutical liquids creams and compounds. Semi solid foods, flavours, drinks, wine, beer, alcohols. Waste water, sewage effluents, coal and lime slurry. Hydrocarbons, petrol diesel, lubrication oil, vegetable oil. Paints emulsions, pigments, thinners, resins. Ceramics, Slip Gazes, Clays.
...more
