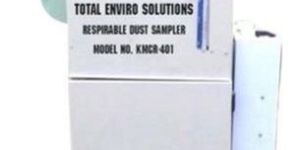

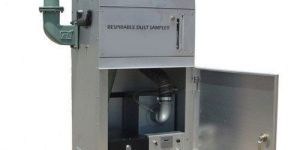

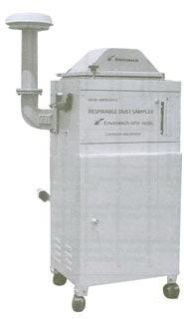

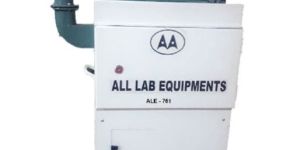

Respirable Dust Sampler
Get Price Quote
technical specifications:- flow rate :- 0.9 – 1.4 m3 /min free flow particle size :- particles of 10 microns & below collected on filter paper holder. Spm bigger than 10 microns collected in a separate sampling bottle under the cyclone. sampling time :- 28 hours (maximum) sampling time record:- 0 to 9999.99 hrs. Recorded on a time totalizer. automatic sampling: - 24 hrs programmable timer to automatically shut off the system after pre set time interval. power requirement: - nominal 220 v, single phase, 50hz ac mains supply. size & weight :- 430 x 320 x 840mm.30kg

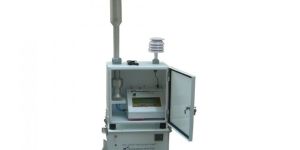

APM 550 MFC Respirable Dust Sampler
Get Price Quote
Ambient air enters the APM 550 MFC sampler through an omnidirectional inlet designed to provide a clear aerodynamic cut-point for particles larger than 10 microns. The air stream then passes through a WINS Impactor that retains the fraction between PM10 and PM2.5. The PM10 and PM2.5 impactors used in the APM 550 MFC are based on designs standardized by USEPA and as such the system complies with international norms for PM2.5 Samplers. The sampling rate is held constant at 1 m3hr by a mass flow controller. An ambient air temperature sensor and barometric pressure sensor have been provided to automatically compensate for temperature and pressure while reporting flow rate in volumetric flow units. The APM 550MFC has an in-built data logger that records air temperature, filter temperature, flow rate and also totalizes and records the volume of air sampled. A PC based software is provided to download the data for audit. features: PM 10 and PM 2.5 Impactors of sampler based on designs standardized by US EPA. Flow Control based on Mass Flow measurements to remove errors due to pressure, temperature changes (of both ambient air and filter). Auto shut off if flow rate drops significantly below 1 m3hr. Microcontroller based datalogger records Air Temp., Filter Temp. and Flow rate.
Best Deals from Respirable Dust Sampler
Respirable Dust Sampler
33,400 Per Piece
1 Pack(s) (MOQ)
Respirable Dust Sampler
Get Price Quote
Get in touch with us for obtaining top quality and accurate Respirable Dust Sampler! We are a renowned Manufacturer, Supplier and Exporter of Respirable Dust Sampler in Delhi, India. Sturdy built, superb finish, hygienic and cost-effective are the highlights of our Dust Sampler, which is why it is extensively in demand. In order to meet the urgent and bulk demands of our buyers, we maintain a huge stock of Respirable Dust Sampler in our state-of-the-art warehouse.
Respirable Dust Sampler
Get Price Quote
Particle size: Below 10 microns collected on filter paper and bigger than 10 Micron will be collected in a separate sampling lid, through Cyclone separator. Flow Rate: 0.9 to 1.4m3/min.. Automatic Sampling: By- 24 Hrs Programmable Timer, Time Record Voltage Stabilizer: Auto shut off beyond (170–270) Volts. Filter: GF/A. (20x25)cms. Whatman Brand. Power Need: 220 V. 50 Hz. 1 Phase A.C. Gaseous Sampling: 0.3 to 3 LPM , Manifold, 4 Impingers with Ice Box. ACCESSORIES1. Impinger: 01 No.2. Filter paper 3. Dust Collector Bottles
Respirable Dust Sampler
Get Price Quote
We offer a comprehensive range of Respirable Dust Sampler to the clients in national and international markets. These Respirable Dust Samplers are widely used for air quality monitoring. It effectively detects the presence of inorganic gases in the environment. Our clients can avail this variety of Respirable Dust Sampler at market leading prices. Model No. : SLE-RDS104 (NL) Respirable Dust Sampler Principle : Suspended Particles in the air are sampled at 3 constant sampling rates of 0.9 to 1.4 m /min through the inlet of cyclone. By virtue of their momentum, particle greater than 10 microns are carried vertically upward by the air flow and collected on a filter paper of 8 x 10 inch. While coarse dust is collected in a cup placed under the cyclone. Attributes : Low noise operations Brushless Blower Portable for Easy Transportation Controlled Flow Specifications : SPM of particle size less than 100 microns RSPM of particle size Less than 10 microns
Respirable Dust Sampler
Get Price Quote
Suspended Particles Matter( SPM) which is defined as particles less that 100 microns & Respirable Suspended Particle less than 10 microns have emerged as the most critical among all the criteria air pollutants & is caused by number of sources like Large, medium & small-scale industries, Road dust construction activities, house hold fuel cooking, waste burning, vehicular emissions etc.
Respirable Dust Sampler
56,000 - 57,000 Per Piece
Respirable Dust Sampler
45,000 Per Piece
Respirable Dust Sampler
Get Price Quote
We are offering respirable dust sampler. Apm 460 bl is respirable dust sampler also called as pm 10 sampler is used for monitoring pm 10 in ambient air.
Respirable Dust Sampler
Get Price Quote
Instantaneous digital read out of dust concentration (No Weighing balance required), Highly sensitive in respirable dust range + 10mgm3, Highly sensitive in respirable dust range + 10mgm3, Choice of ranges for measurement, gives greater flexibility,Detachable sampling probe suitable for remote or inaccessible sampling.
Respirable Dust Sampler
Get Price Quote
Respirable Dust Sampler, Gas Chromatograph, Gas Chromatography Machine
Respirable Dust Sampler
Get Price Quote
Respirable Dust Sampler, Chemetrics Water Test Kits
Respirable Dust Sampler
Get Price Quote
Respirable Dust Sampler, Gaseous Sampler, Handy Sampler
