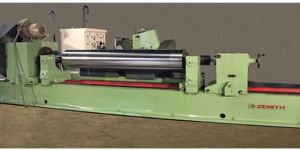

Roll Grinder Dealers in Delhi

• Usage: Industrial

Use of seasoned and stress relieved castings. The rigid base provides vibration dampening properties. Auto lubrication system maintains the floating action of the saddle. The hydraulic driven saddle enables the vibration free travel. The bearing shells of the grinding spindle are multi surface type, adjustable by means of tapered sleeves. Wheel Head needs no maintenance apart from occasional oil change resulting in high pressure stability, chatter-free grinding, avoidance of swimming tendencies of pure hydrostatic and wear & vibration free running. Less adjustment time due to the rotating cam feature of the Cambering System. The wheel Head Saddle base is hinged to enable the precise forward and backward movement of the wheel for concave and convex grinding.

Max. dia to be ground : 575 - 1600 mm Distance between centers 2 3 to 6 7 M Max. weight of roll 3 to 6 T Rigid design for better efficiency & accuracy Accurate concave & convex grinding Electronic mechanical feed counter for pre-selection of cross feed Built in dynamic balancing device Automatic feed at reversing points Automatic cut off device for grinding wheel Automatic wheel wear compensation

We are one of the famous company, who are manufacturer of Roll Grinding Machine Roll Grinding Machine specification:  Max. dia to be ground : 575 - 1600 mm  Distance between centers 2 / 3 to 6 / 7 M  Max. weight of roll 3 to 6 T  Rigid design for better efficiency & accuracy  Accurate concave & convex grinding  Electronic / mechanical feed counter for pre-selection of cross feed  Built in dynamic balancing device  Automatic feed at reversing points  Automatic cut off device for grinding wheel  Automatic wheel wear compensation

              ROLL GRINDER MACHINE ZRG-3 ZRG-4 ZRG-5 ZRG-6 ZRG-7 ZRG-9/10 Max .Length b/w centers 3 Mtr. 4 Mtr. 5 Mtr. 6 Mtr. 7 Mtr. 9-10 Mtr. Minimum Diameter 100 mm 200 mm 200 mm 300 mm 300 mm 300 mm Maximum Diameter 750 mm 1000 mm 1000 mm 1400 mm 1400 mm 2000 mm Power reqd.(head+spindle+slide) 10+15+2 27 h.p 15+!5+2 33h.p 20+15+2 37-42 42 47-55 55 wheel (grade) 120 120 120 120 120 120 casting grade 20 20 20 20 20 20 spnidle bushes bronze bronze bronze bronze bronze bronze wheel head speed ( rpm ) 50 - 750 50 - 750 50 - 750 50 - 750 50 - 750 50 - 750 work head speed (rpm) 5 to 60 5 to 60 5 to 60 5 to 60 5 to 60 5 to 60

rolls grinding machines, Machine Tools

Roll grinding machines differ in the workpiece holder. Between centers for high precision and casters for rapid loading the workpieces can be rotated. Processing stations travel along the workpiece. Belt grinding, stone grinding with super finishing and Microfinish

Roll Grinding Machine, Cnc Rack Rolling Machine, vertical turret lathes
