Scaffolding System Dealers in Delhi

• Scaffolding Width: 1.32m.
• Scaffolding Length: 1.85m, 2.55m and 3.05m.
• Working Heights: Extended from 4.50m to Max. 13.45m with Standard Parts.
• Load capacity: Up to 200kg/sqm

• Material: Mild Steel
• Certification: ISO 9001:2008 Certified
• Weight: 0-6 Kg
• Coating Material: Zinc
• Surface Treatment: Hot Dipped Galvanized
• Available in Size: 3000mm 2300mm

Cuplock scaffolding is a very popular and versatile scaffold system that is in use all over the world. The ease of handling, easy storage space requirements and high load bearing capacity are the main reasons for its immence popularity. We manufacture Cuplock Scaffolding System in Hot Dip Galvanised as well as Painted coated finish as per customer's requirement. Cuplock Verticals are availabe to suit any support or access application economically. The Connection Point is set at 500/1000mm vertical intervals for maximum versatility in use.

• Material: Mild Steel
• Material: Metal
• Thickness: 0-10mm
• Application: Construction Use
• Feature: Durable, High Quality
• Finishing: Polished
• Diameter: 40mm

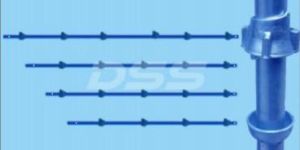

Delhi Shuttering Stores. provides cuplock vertical members. commonly known as Standards using optimum quality MS Pipes (40MM D). these members are the the fundamental load bearing members in cup lock scaffolding systems. and consist of top and bottom cup to lock the horizontal members in place.    The bottom cups are welded at a distance 0.5 rneters on the vertical pipe, whereas the top cup can be moved and retained by a small welded fixture, consecutive vertical members can be attached using Spigot / Joint Pins, and can be fixed with Base or U jacks and either ends.

• Country of Origin: India
• Color: Blue
• Size: 3 metre
• Product Name: Vertical Cuplock scaffolding

The Ledger is used to connect the standard in a longitudinal direction. It is made from scaffolding with wedge 'Banana Type' fixing at each end which fits in the 'V' locating lugs on the standard. The ledger is also used as a guardrail. Transom is either made of back-to-back anglev or T-shaped profile with the same fixing device on each end as the ledger. They are used to carry 3 or 5 numbers of steel or timber battens and toeboard.

Cuplock system or cuplock unique node point connection makes it the fastest, safest and most versatile scaffolding ever designed.

Scaffolding Cuplocks are fabricated complying with existing norms and standard of the industry. They are extensively used either in straight, curved or in circular structure for both access and support. We are known as quality Scaffolding cuplocks manufacturer in present industry. These products are fabricated with quality approved raw material. Further, our huge variety of scaffolding cuplocks makes a tough connection in horizontal bear. These cuplocks are supply by us in market leading prices to our esteem clients.

Nirman Scaffolding is a leading scaffolding products manufacturer from India that offers wide range of Cuplock System for various construction industries. For easy assembly and dismantling features, the offered range of scaffolding items can be used in heavy loading applications. Available in accurate dimensions, our offered range of scaffolding products are available at reasonable cost. We offers variety of Scaffolding Cuplock which are manufactured using fine metal, which ensures high strength to our products. Cuplock System made by us are available in different sizes and specification and also it can be customized one our client's demand. These Cuplock Systems are available for wholesale supply. Durability and reliability are some of the features, which as helped our organization to establish ourselves as leading Cuplock manufacturers and suppliers in Delhi,India. Range of Cuplock System manufactured by us: Cuplock Standard (Vertical) Ledger (Horizontal) Features of Cuplock System: Dimensional accuracy Rich quality Available in varied specifications Sturdy Easy to install Application Areas of Cuplock System: Construction Industry Other commercial & residential areas

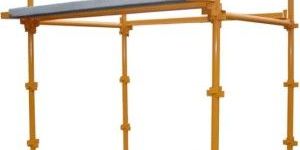

Kwickstage / Wedgelock is a modular System Scaffold with wedge fixing for all access Scaffold requirements. The wedge fixing of the ledgers and transoms gives a simple and fast means of erecting access scaffolding without loose parts. Rigid 4 way Fixing giving a positive location without movement. Spigot and Wedge fitting on the Standard to give guaranteed Vertical alignment. Available in pointed/powder Coated Finish for maintenance free use. Conforms to all Health & Safety and British Standard requirements.

The backbone of ARENA scaffolding arrangements is our cuplock system. Its unique qualities of being fastest, economic, versatile and safe make its use universal and irresistible. It is fabricated out of requisite grade virgin steel i.e 40 NB B-Class ERW steel tubes.

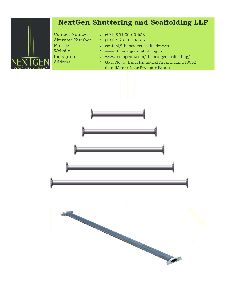

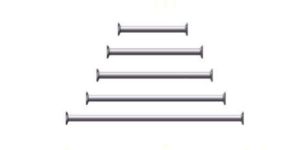

Ledger Ledgers are designed to be inserted into the pressings on the standard spaces to the required grid sizes in regular scaffolding or for providing support slab system.

All Ledgers or horizontals have identical forged blade ends, with the minimum of projection to avoid damage. Each component locates in the cup joint on the Vertical. 2.5 m Horizontals provide the basic bay length in CUPLOCK. This is a suitable bay size for all common access loading conditions. 1.8 m Horizontals provide a make-up bay size for maximum flexibility. 1.3 M Horizontals provide a 5-board wide platform. Ledger Rental in Cuplock scaffolding is the most popular scaffolding system in the world. In common with other ‘system scaffolding’ such as wedge-lock, Galv-Lock and Kwikstage, Cuplock has a number of benefits over conventional scaffolding.[fusion_text]

We are constantly engaged in providing top class products to our clients. Supertek Scaffoldings based in Delhi, is one of the best Cuplock Diagonal Manufacturers that are inserted between the top cup and the bottom for bracing diagonally. This product has great resistance and is used in steel cables and steel construction. Find various ranges You will find a wide range of this product at our manufacturing unit. It is found to be used in engineering industry and construction industry. It is manufactured with perfect finish specifications in order to meet various requirements of our clients. The features of this product come with accurate dimension and ensure quick erection. Contact us soon To know how to reach us visit the contact page on our website. You can make purchase by ordering the products through phone. We don’t charge for this service. Our flawless finish products have made us the best Cuplock Diagonal suppliers across the country.

  Buy the best quality Kwikstage Scaffold System at competitive prices from us! We, hailing from Delhi, India, have pioneered the manufacturing, exporting, and supplying of Kwikstage Scaffold System. And what makes our deals valuable is the fact that we promise to encompass the essence of safety, reliability, cost efficiency, and performance that does not fail at any point with our products. Rely on us! Details : Standards all sizes Ledgers all sizes Transoms all sizes

• Model Number: BSL/RS

Wallform system of steel shuttering compromise of standard panels manufactured out of 12 gauge M.S Sheets with slotted 50 X50 X5 M.S.,angle/M.S Flat Frame and Stiffenet,Channel or Heavy duty soldiers, Tubular or channel Walers, all these components are assembled togetherby different types of clips of unique design.Soldiers supplied in 2.5 M and Pannels in 1.25 M heights. For high pour concreting,special soldiers in 3.5 & 5 M are also supplied. For curved walls,flexible panels are used instead of wallform panels.For single sided shuttering heavy heavy duty soldiers used instead of channel soldiers and double loops used of wall ties. Wallform set up assembly shown is ready for 2 pour with soldiers remaining in the same pour. For successive pour,complete assembly of panels,soldiers and wallingsis lifted in the convenient lengths by crane or other lifting tackle,the tie bolts having been previously removed,it is re-positioned with 125 mm lap over previous pour and soldiers rebolted to ties cast in previous pour which withstand self weight of shutter and concrete pressure.

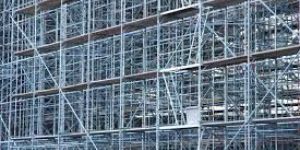

Cuplock or H-Frame Scaffolding is a framework of materials erected to provide a stable working platform.This is to facilitate the repair and construction of buildings. Cuplock or H-Frame Scaffolding is a system made up largely of metal tubes and woodenmetal platforms on which workers stand to access the building to work on. The scaffolding framework is secured at the base at ground level and tied to the building to be worked on to ensure it is steady and safe. Due to the nature of the work involved and the height at which workers must often operate, strict safety regulations and laws are in place to ensure that all scaffolding companies minimize risks to both their employees and to people on the ground.

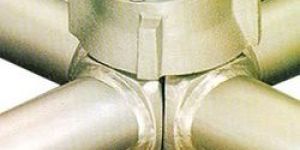

Cuplock Cup lock is a unique node point connection allows up to four horizontal members to be connected to a veritical members in one single action - without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique locking make 'cuplockCuplock' a fast, versatile and optimized system of scaffolding for scaffolding for construction, demolition and maintenance projects throughout the globe.
