Servel Udyog Pvt. Ltd. Okhla, Delhi

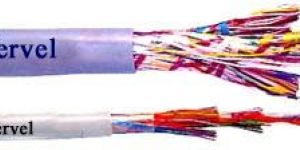

We offer telecommunication cables. Description: annealed baretinned high conductivity copper. Pvcpecellular pe insulated. Insulated cores twisted to form a pair. Pairs laid up in sub-unitsunits in concentric layers. Taped. Overall pvc sheathed. Individual and or overall shielding with aluminium-mylar tapecoppertapelapping braiding provided depending upon the requirement. Armouring provided with an extruded inner pvcpe sheath and overall sheath of pvc pe wherever required. Application: for telephone switching exchanges. Switch board & telephone wiring. Pulse code modulation systems.rs-232 communication systems and digital transmission networks.

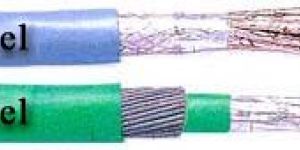

Description: solidstranded(atcabc) copper conductor,insulated with pvcpe to form a core, 2 cores twisted to form a pair, 3 cores twisted to form a triad, 4 such elements depending upon the requirement will be laid to form a unit, such unit laid up & overall sheathed with pvcpe. *shielding(braiding:apping aluminium-maylar taping) will be provided individually on each pairtriad and overallor only overall depending upon the requirement. * armouring with wirestrip is provided depending upon the requirement with a extruded inner pvc sheath, and overall sheath of pvcpe. Application: transmission of signals with minimum distortion & superior circuit isolation for systems like process control and fire alarm in refineries, chemical,cement, steel, railways, thermal and gass power plant through microprocessors.

Control cables description: annealed bare high conductivity copper(solidstranded) pvc insulated cores laid up in concentric layers. Extruded pvc inner sheathed, overall extruded pvc sheathed. Galvanised mild steel armouring will be provided with wirestrip over inner sheath in case of armoured cables. Application: for electric controll circuits & electric supplies.

Description: inner conductor(abcatcccsaspc) of solidstranded construction,insulated with pecellular pe. Outer conductor in the form of braiding. Overall pvc sheathed. Armouring is optional and will be given on specific requirement. Additional one layer of braiding is done in case of tri-axial cables. A centre conductor wrapped with pe thread, covered with polythylene tube insulation for air spaced co axial cables. Application: transmission & reception of data processing signals where distinct electrical characteristic are required.

Description: annealed bare high conductivity copper solidstranded conductor. Insulated with pvc. In case of multi cores, cores will be laid up together concentrically and overall pvc sheathed. Application: for power circuits, electrical controls and switching units in telecommunication equipment.d.

We are offering pvc power cables, pvc power cables range 4 mm2 upto 1000 mm2. type pvc power cables upto 3.3 kv as per is 1554 (part I & ii); bs 6346; iec 502; vde 0271; is 4288 (a) single cores unarmouredarmoured (b) three cores unarmouredarmoured (c) three cores unarmouredarmoured (d) four cores unarmouredarmoured (e) three and half cores unarmouredarmoured.

We offer lt xlpe power cables. Range 10 mm2 upto 1000 mm2. Armoured & unarmoured; 1 core, 2 cores, 3 cores, 312 cores & 4 cores of both aluminium and copper type 6001100 volts or 19003300 v as per bs-5467, is 7098 (part i), iec 502, bs 4066, iec 332-1, ieee 383.

we offer h.t. power cables range 25 mm2 upto 1000 mm2. single core & 3 cores, upto 33 kv of both armoured & unarmoured cable type xlpe insulated h.t cables upto 33 kv screened armoured unarmoured cable as per is 4098 (part ii85) bs 5467; iec 502-1; ipce as-66:524;. sen 241416
