Sight Glasses Dealers in Delhi

• Material: Glass

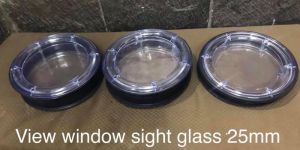

We provide high performing Viewing Glass for milling industries. We have also the different size of Viewing Glass. For more specification please send us the inquiry.

We are engaged in manufacturing & supplying of Sight Glass from Delhi, India. The huge assortment of Sight Glass we offer is fabricated in our fully equipped production unit under the guidance of skilled professionals. We ensure customer satisfaction by checking the Sight Glass on various quality parameters before the final dispatch. We are capable of delivering small or bulk orders of Sight Glass within the postulated time.   Details : These glasses are generally toughened and used for checking level of water or oil in Machines.

• Material: SS
• Brand Name: S R Metal
• Available Size: 1/2" NB to 250 NB
• Connection: Screwed or Flanged
• Minimum Order Quantity: 10 Piece

• Usage: Industrial, Domestic
• Types: Check Nut Type, Allen Key Type
• Construction: S S 304, S S 316 & M.S. With Zinc Plated

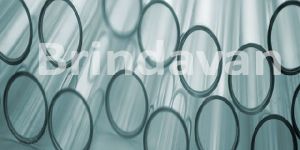

• Glass Pipe: Borosilicate Pipe
• Packing: PTFE
• Flange: ASA, DIN, IS or Any Standard Sizes is available

• Material: Bronze
• Size: 1/2 Inch To 2 Inch
• Brand Name: Mala
• Hydraulic Pressure: 500 PSIG
• Ideal Environment: Max 17.58 Kgf / cm2 at 225 Degree Celsius

  Sight glass is a device used between any kind of non transparent pipelines to observe the flow of liquid. This can be used both in horizontal as well as vertical pipeline. Sight glass is constructed in such a way that it gives a complete view from every angle.A sight glass consists of one glass pipe section, one metal frame, a pair of PTFE bushes and washers and an acrylic cover. Borosilicate pipe section is highly heat resistant, has excellent chemical resistance and has low thermal expansion. Metal frame is composed of two flanges, which are welded with studs so that the stresses and vibrations of the pipeline do not transfer to the glass pipe section. Its check nut keeps the glass pipe section in compression and provides ease in replacement.PTFE bushes on both sides of glass pipe section that liquid ensures that liquid in the pipeline does not come in contact with metal frame. PTFE washers are used as gaskets while fitting the sight glass in the pipeline. Acrylic cover covers the glass pipe section and protects it from outer damages.Sight glass can be supplied with Ms/SS304/SS316 frame with any standard drilling.

SMS hygienic sight glass products are made by forged material.Type of ends available: Weld end, Male end and Female end.Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.It is necessary you specify at the time of order heat numbers and MTR's are required. Material Test Reports (MTR's) are available to document all heat number.

Double Window Sight Glass, Magnetic Level Indicator, ss tee

SMS hygienic sight glass products are made by forged material. Type of ends available: Weld end, Male end and Female end. Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable. EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries. It is necessary you specify at the time of order heat numbers and MTR's are required. Material Test Reports (MTR's) are available to document all heat number.
