Soil Permeability Apparatus Dealers in Delhi

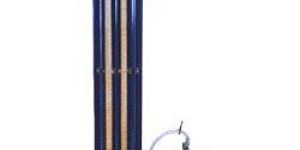

Same as ZI 3030 but with glass tubes of 75mm, bore tube is provided with overflow arrangement for constant head tests. The remaining tubes are used for falling head test.

Soil Permeability Apparatus come with glass tubes of 75mm, bore tube is provided with over flow arrangement for constant head tests. The remaining tubes are used for falling head test.

• Material: Metal
• Color: Metallic, Silver
• Application: Industrial
• Surface Finshing: Polished
• Resistivity: Rust Resistant
• Size: 100mm Dia X 127.3mm Height X 1000ml Volume

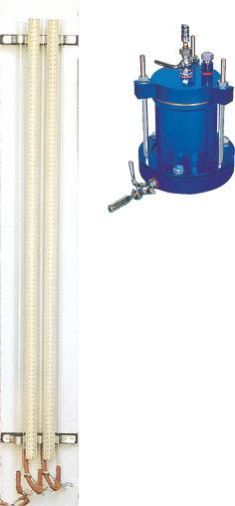

The permeability of the soil is one of the important aspects to be studied and that can be done through the Soil Permeability Apparatus. As a Manufacturer and Supplier of Soil Permeability Apparatus, we solve a lot of issues. The results of the permeability checks through the Soil Permeability Apparatus help in the groundwater pumping, excavations in foundation sites and dam designing. The Soil Permeability Apparatus can check the pre-formed as well as re-molded samples as well as the undisturbed samples through constant/falling head methods. The permeability studies can provide inputs on saturated compressible soil layer, equifer flow rate, as well as flow of water through interconnected voids.   Consists of gunmetal mould 100mm dia X 127.3mm height X 1000ml volume, with collar of 100mm dia X 60mm high and drainage base plate, Drainage cap, Metallic clamping ring, two porous stone for base and cap, Dummy plate, air release valve. With a set of three glass stand pipes approx.6mm, 10mm, and 20mm dia X 1 meter length mounted on a wooden board, the end of the glass tube is serrated to connect rubber tube of 3 meter length with pinch cock.

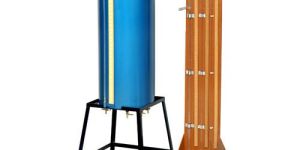

Specifications : Same as above but instead of a set of three glass stand pipes a stand with nine glass tubes of 6mm, 10mm, 20mm, 25mm, 40mm, 50mm, 60mm, 70mm, 75mm bore. 75mm bore tube is provided with overflow arrangement for constant head tests. The remaining tubes are used for falling head test. Salient Features Optional : Overhead tank made of steel, approximately 37.5cm dia x 1mtr. high. it is provided with an inlet port at the top and size outlet at bottom with cocks and air inlet and water filling tube on top. An arrangement is provided to indicate the water level. An extra meralic tube having approximately 5mm /6mm I.D. and 1 mtr. long is also supplied 2.6 kg x 310 mm controlled fall and Rammer 4.89 kg x 450 mm controlled fall. Spares : Pair of top and bottom Porous stones for permeameter mould.

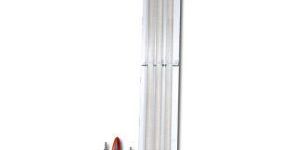

Soil Permeability Apparatus is used for the laboratory determination of permeability of soils using a constant or a variable head. This test is recommended for soils with coefficient of permeability in the range of 10-3 to 10-7 cm/sec. The maximum particle size of the soil which can be tested in the mould is 10 mm. Standard: IS: 2720 (Part XBII), ASTM D 2434. SPECIFICATIONS: The equipment comprises one each:   Gun metal mould, 100 mm I.D x 127.3 mm high x 1000 ml volume. Extension collar, 100 mm dia x 60 mm high for the above mould. Drainage base plate with a recess for a porous stone and with an outlet valve. Metallic clamping ring. Drainage cap (Top plate with a recess for a porous stone and fitted with an inlet valve and an air release valve.) Dummy plate to serve as a false bottom during compaction. Porous stone for drainage cap. Porous stone for base plate. Set of Three glass stand pipes approximately 6 mm dia., 10 mm dia and 20 mm dia mounted on a wooden board. Each glass tube is longer than 1 meter and has a serrested end at the bottom. To read water head 2 Nos. meter scales are fixed between the tubes.   A length of 3 meter long rubber tubing with pinch cock is also supplied.

The permeability of the soil is one of the important aspects to be studied and that can be done through the soil permeability apparatus. As a manufacturer and supplier of soil permeability apparatus, we solve a lot of issues. The results of the permeability checks through the soil permeability apparatus help in the groundwater pumping, excavations in foundation sites and dam designing. The soil permeability apparatus can check the pre-formed as well as re-molded samples as well as the undisturbed samples through constantfalling head methods. The permeability studies can provide inputs on saturated compressible soil layer, equifer flow rate, as well as flow of water through interconnected voids. consists of gunmetal mould 100mm dia x 127.3mm height x 1000ml volume, with collar of 100mm dia x 60mm high and drainage base plate, drainage cap, metallic clamping ring, two porous stone for base and cap, dummy plate, air release valve. With a set of three glass stand pipes approx.6mm, 10mm, and 20mm dia x 1 meter length mounted on a wooden board, the end of the glass tube is serrated to connect rubber tube of 3 meter length with pinch cock.

Permeability is one of the important Engineering properties, as it governs rate of settlement of saturated compressible soil layer and rate of flow of equifer. ● Permeability is that property of soil which permits flow of water through its interconnecting voids. ● The instrument to measure permeability is called permeameter. ● The results are used for pumping ground water, for functioning sites excavations, design of dams etc.

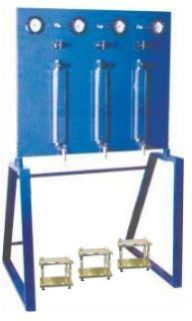

ROCKTOP: In oilfield laboratory instrumentations, there are a wide variety instruments for drilling and stimulation fluid preparation and the oil well cement testing, designed to measure the thickning time of cement slurries with wide pressure and temperature operating ranges. The measure of rocks, cement, soil permeability or porosity is a key issue in the construction industry.TOP INDUSTRIE has developed a full range of high pressure cells for this application.

• Type: Designer
• Application: Laboratory
• Certification: CE Certified
• Voltage: 220V
• Driven Type: Electric
• Temperature Range: 0-5 Deg C
• Warranty: 1 Year

The apparatus is used for the laboratory determination of permeability of soils using a constant or a variable head. This test is recommended for soils with coefficient of permeability in the range of 10 to 10 cm/sec. The maximum particle size of the soil which can be tested in the mould is 10mm.
