Speedage Engineers India Private Limited Okhla, Delhi

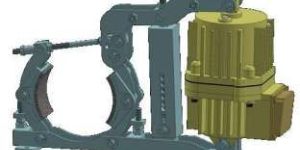

The ‘Speedage’ thruster is electro hydraulic device to apply pressure or actuate lever mechanism of brake arrangement. The thruster cylinder accommodates a centrifugal pump and a piston with two push-rods extending outside through thruster cover and transmitting effort to the brake. The robust design Thrustor unit is compact and has long life and is easy to maintain. Main components used are of high quality cast iron and steel. The Thruster is operated by an integral three phase squirrel cage motor.         The device has the following advantages: 1.        Constant Pressure 2.        Gentle Application and release of brake without jerks and shocks. 3.        Larger number of switching-in operations per hour (up to 600). The rated stroke of each type of thruster can be changed, retaining the same attractive force, by means of sleeves fitted on the rods (inside the body) (this arrangement is possible with models from ST 535 and above)

The new range of Limit Switch has been designed and manufactured for use on reversing drives such as hoists, winches, rolling mills etc. It is compact in design and can be easily accommodated and installed on electric hoists, where space constrains are there.The driving motion is transmitted by worm gear. All gears and hubs are made of low wear thermoplastics. The rotational movements are transmitted to switches by adjustable cams.

Application: Controlling motors with resistors is a universal method of speed control. The resistors are used to limit the in-rush current and adjust the torque and speed characteristics of an ac and dc motor By changing the resistant on the rotor (through contactor), you can limit the starting torque and speed of the motor for your specific application. SPEEDAGE  make Resistors are designed to meet requirements of A.C & D.C. application for E.O.T. Cranes, Winches, Rubber Mills, Flour Mills, Coal Mines, Cement Mills, Power Plants, Conveyors, Coke Oven, Blowers etc. for Speed control and developing Starting Torque. The specification comply with BSS 587: 1957   ENCLOSURE FEATURES • overhung top with canopy to prevent standing water and will support heavy ice and snow.• Forged eyebolts are provided in all four corners for easy handling.• Removable front and rear louvered covers for easy access for connection and inspection.• Corrosion resistant nameplate provides complete ratings and manufacturer's information.• Galvanized Iron Sheet provides maximum protection.  ENCLOSURE OPTIONS • Aluminum, mill galvanized, stainless steel and hot-dipped galvanized construction.   Custom paint finish is also available.• Top or side mounted entrance bushing(s).• Screened covers for indoor applications.• Support stands for elevating the enclosure above ground.Stainless Steel Wire Grid type ResistorsStainless Steel Punched Grid type Resistors These are designed and manufactured for current ratings form 10 Amps. to 234 Amps. Continuous Resistors of higher ratings are manufactured by using 2 or more parallel paths. Resistors with short time ratings up to 3000 Amps. or even more for neutral grounding are possible which are suitable for system voltage up to 11 KV and above

The Receiver of the system contains 9 potential free contact relays (7 + Start + Alarm) which can be configured as per the requirement. The Receiver also contains a feedback module which continuously monitors the internal circuitry and enables the user to check the Receiver status via LED on the Receiver. Operated with 2AA size batteries and modular design of the system makes it easy to maintain.

Pendant control station is a device used for the control of industrial and commercial equipment, machines and tools. Push button Stations are suitable in a circuit of AC50 or 60Hz, rated voltage up to 500V and rated current up to 5A They are available in versions containing from 4 to 10 buttons, size and inside space tested to allow fast cabling, thus reducing time and costs Pendants are designed for Control Circuits, Dual Speeds, Mechanically Interlocked, Reset Button + Latching Emergency Stop.   Features: Compact light weight and ergonomic design. Made of high impact ABS resin High visibility –safety yellow colour Variable diameter cable bushing with clamp accommodates a wide range of cables size.

Application: “SPEEDAGE” Master controllers  / Cam controllers are used for remote operation (Cabin Operation) of contactor equipment controlling Heavy duty E.O.T. Cranes & Rolling Mill Drives , on power and control circuit upto 500Volts a.c. , 50 cycles at 40Amps. continuous current and 2.5 amps. at 220 Volts D.C. when handling inductive loads. SALIENT   FEATURES Long Life Simple Maintenance Wide Electrical Clearance    Master controllers can also be supplied with following arrangements. Deadman’s control : This consists of one auxillary contact of two circuit block (1 NO+ 1 NC) operated through a spring loaded push button provided on joystick handle in case of operator looses the grip over button during operation, motion will come to stop as main contactor will be de-energised. Spring Return arrangenment : The master / cam controller can be provided with spring return arrangement whereby handle returns to the neutral position when it is released. Dual Master Controller   “Speedage” Twin master controller with one universal handle allows a crane operator to operate both bridge and trolley motions with one handle. Simultaneous operation of bridge and trolley motions provides greater spotting accuracy and faster movement of loads. The handle of joystick can be moved into any quadrant and any position within that quadrant. By controlling both motions simultaneously the operator is free to devote more attention to controlling the hoist motion with is other hand.

Speedage” make Rotary geared type Limit Switches are used on control and power circuit of reversing drives so as to limit their rotation/movement within a predetermined position. The function of the Limit Switch is to stop the mechanism or drive at the extreme forward / reverse position. The limit switches are particularly suited for use on reversing drives such as hoist, winches, rolling mechanisms used in steel plants such as coke ovens, feeding machinery, valve drives etc. The Geared type Rotary Limit Switch basically consists of heavy duty worm gear drive with a ratio of 48:1 or 60:1. the worm gear unit is built in a sturdy cast aluminium housing which is fitted on the main body of the Limit Switch, covered with dust tight gasket in cast aluminium enclosure. The limit switches are made in IP 54 enclosure with cast Aluminium cover duly machined surfaces to protect against dust and dirt

The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500v.a.c. 50 cyclessec. supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action.

Type : Lever Limit Switches

Certification : ISO 9001:2008 Certified

Color : Grey

Condition : New

Max. Voltage : 240 VAC

Surface Finishing : Power Coated

Switch Type : Lever Limit Switch

Speedage” make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current. The housing of Gravity Limit Switch is made of cast iron Cast aluminium (IP 54). WE HAVE TWO TYPE OF HOUSING OF GRAVITY LIMIT SWITCH.

The gear couplings are selected based on.  Horesepower or Torque Running RPM Physical Space limitations Shaft diameter Shaft gaps Special bore or finish information and type of fit. Service factor Application or type of equipment to be connected  Based on the application the appropriate service factor needs to be determined. The maximum degree of misalignment permissible in gear couplings is from 0.5 Degrees to 1.5 Degrees. This varies with the size of the coupling being used.

Thrustor Brake Drum Diameter - 100 mm Thrustor type-EMT-1ST520 Torque-6 KG-M Operating Voltage-415V

“Speedage” make Gravity (Counter Weight) Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists, to prevent over travel of hoisting motion on power and control circuit up to 500 v.a.c., 50 cyclessec. and 40 Amps. continuous current.

The Anti-collision Device is a safety device to avoid to collision of two electric overhead traveling cranes working on the same rails. The System works on the principle of retro-reflective infrared waves. It consists of an emitter and sensor module and a special reflector. The emitter emits the infrared waves in the direction of the reflector. The reflector reflects these infrared waves back to the sensor. The sensor senses the presence of these reflected infrared waves and activities an alarm signal and stops/reduces the speed of the cranes. Thus if the two cranes are away from each other then the reflected waves will not reach the sensor and the cranes operate normally. The sensing distance is adjustable between 3 to 10 meters. The anti collision system is specially designed for the crane application and is suitable for the continuous duty. Each set consists of an Emitter/sensor module and a Reflector. For one pair of cranes two sets of anti-collision systems are required
