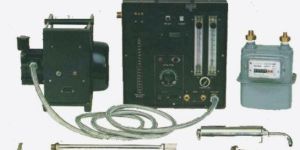

Stack Monitoring Kit Dealers in Delhi

• Type: Air Samplers
• Application: Air Sampling
• Rated Voltage: 220V
• Rated Power: 1-3kw
• Power Source: Electric
• Warranty: 1yr
• Automation Grade: Automatic

personal dust sampler  overview: personal dust sampling can sample air at flow rates from 0.5 to 2.0 beats per minute, and the sampling rate required for most powders (silica, mica, lead oxide, calcium, chromium, arsenic, manganese, etc.) and smoke (lead). Copper, iron, cadmium, etc.). The increased public awareness of air pollution and its threats to the health and welfare of industrial workers is the result of increased pressure in the accurate, reliable and consistent assessment of pollution in the workplace and worker exposure. . One of the problems of monitoring worker risk is that most workers take turns in the store as part of their regular duties. Therefore, the operator must use the equipment. The system is designed to work for a full 8 hours, allowing workers' dosages to be compared to tlv levels.   features: •             portable, light weight and easy to use. •             battery operated pump for a full shift of 8 hrs. •             rechargeable ni – cd. Battery. •             practically maintenance free. •             sampling rate calibrated against reference setups for reliable results.     technical specification:   •             flow rate 0.5 – 2.0 lpm. •             filter 25mm dia. Glass fiber filter discs •             batteries ni – cd. Rechargeable •             operation time 8 hrs. On fully charged batteries •             size & weight 155mm x 82mm x 60 mm; 1.2 kg

• Feature: DigitalPressure Cell in place of cumbersome manometer. Measures total quantity I volume of emissions. Determines velocity of gases. Reduction in size and weight of panel. Extendable arm for pitot and probe pipe. Etc.

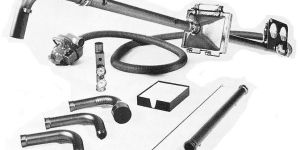

The most common and widely used method (world over) is extractive sample method or Grab sampling technique. Grab sampling technique is also often treated as the reference standard method. Grab Sampling technique is not restricted to a specific pollutant. The same system with different reagents may be used for a variety of pollutants and over different ranges of concentration. This Stack Sampler VSS1 is one such Grab Sampler which can monitor Particulate Matter (PM) and any watersoluble gaseous pollutants like SO, , NO., HF, Cl, , H, S, NH, etc., in industrial emissions from Stationary source I Chimney and Vent. PORTABILITY FOR ROUTINE SAMPLING Only repeat and frequent monitoring can give a true insight into the emission characteristics. It is thus more important to have a simpler and handy device,which can be used more often with ease and convenience, rather than a bulky and cumbersome system. At times transportation efforts become more hectic & expensive than the actual monitoring exercise. Based on our experience and valuable feedback obtained from our large group of valuable customers, regulatory authorities, consultants, and R&D Centers, need for improved and Handy instrument has been felt. The Stack Sampler VSS1 has been designed to overcome such problems. The operating principle is simple. The Particulate Matter is collected over a filtration thimble. It entrap and absorbs various gaseous pollutants in suitable reagents, which are analyzed subsequently by simple Wet Chemistry methods to determine the concentration of specific pollutants.

stack temperature range : ambient to 600 deg c read on a digital pyrometer stack velocity range : 3 to 60 m/sec thermocouple : t/c sensor in ss 304 casing, length of insertion : 0.6m with 2 m long cable manometer : digital with 0 -1200 mm of h20 range pilot tube : calibrated s-type fabricated-ss 304, 0.6m extendable to 1.2m particulate sampling : 0 to 30lpm collection on thimble type filter up to 0.3 micron rating   gaseous sampling : 0 to3 lpm collection in a set of glass impingers rota meter : plastic body with 2% fsd accuracy, 0-30 lpm for pm and 0-3 lpm for gas sampling probe 5 : made from ss 304 tube, o.6m length extendable to 1.2m (size 28mm id x 100mm long) or glass micro fiber thimble (size 19mm id x 90mm long) accommodated in ice tray. placed on rear side of instrument panel with a provision to keep ice. nozzles : a set of 3 stainless steel nozzles digital clock : 0-60 minutes, I second readout with start and stop switches sampling train: I no. Of 240 ml cap. & 3 no. Of 120 ml cap. borosilicate glass impingers accommodated in ice tray, placed on the rear side of instrument panel with a provision to keep ice. vacuum pump: monoblock rotary vane type, oil lubricated, single phase motor (230v) with more than 50lpm free flow capacity.

We are offering stack monitoring kit. It is used for rapid and accurate measurements of concentrate gaseous pollutants such as so2, nox and also suspended particulate matter (spm) under isokinetic conditions, volumetric flow, linear velocity and stack gas temperature. It meets with epa regulations. Specifications model: SLE-SS113 stack temperature range: ambient to 600°c read on a digital pyrometer. Stack velocity range: 3 to 60 m/sec thermocouple: t/c sensor in ss 304 casing, length of inseration:1 m with 2 m long cable manometer: digital with 0-1300 mm of h2o range pitot tube : calibrated s-type fabricated - ss 304, 1m long particulate sampling : 0-60 1pm collection on thimble type filter up to 0.3 micron rating gaseous sampling : 0-6 1pm collection in a set of borosillicate glass impingers. Rotameter: acrylic body with 2 % fsd accuracy, 0-60 lpm for pm and 0-6 lpm for gas. Sampling probe : 1m long ss tube filter holder: filter holder suitable to hold either cellulose filteration thimble (size 28mm id x 100 mm long) or glass fibre thimble (size 19mm id x 90 mm long). nozzels : a set of 3 nozzles made of ss 304. digital clock: 0-60 minutes, 1 second readout with start and stop switches. sampling train: glass impinger 1 no. 240ml, glass impinger I no. 120ml(silica) glass impinger 2 no. 120 ml (gas) vacuum pump: monoblock rotary vane type, oil free, 0.5 hp single phase motor (230v) with more than 50 1pm free flow capacity. features 1. Specially designed to monitor pm & gaseous pollutants from stack/ chimney emissions. 2. Collection based on wet chemical techniques. measures total quantity / volume of the emissions 3. Rugged & convenient for sampling with oil free vacuum pump assembly. 4. Accomodated in a suitcase for better accessibility. Convenient to use.

• Material: Aluminium
• Model Name/Number: GTI-121
• Usage/Application: Industrial
• Brand Name: Greentech Instruments
• Analysis Time: 1 HRS
• Motor: NOISE LESS
• Calibration: NABL
•  :

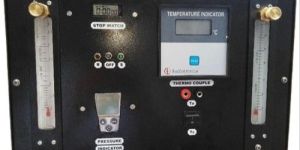

Instrument panel consisting of pyrometer, manometer rotameters, vacuum gauge, stop watch, dry gas meter & temperature controller. (2): Probe kit consisting of probe pipe, pitot tube, connecting hoses, tool kit, filter holder, nozzles, thermocouple, heating system, tripod etc.

• Country of Origin: Made in India
• Power: 300 W
• Model Name/Number: KMCR-191
• Usage/Application: Industrial
• Brand Name: KMCR
• Display: Digital
• Accuracy: 0.05%
• Vacuum Pump Power: 0.5 HP

Stack Monitoring kit can be used to measure total emission of particulate matter and gaseous pollutants from the stacks of almost all types of industries including Thermal Power Stations, Steel Plants, Chemical Plants and Cement Industry. In its simplest form, it can be used to take accurate representative samples of particulate matter and various gaseous pollutants such as SO2, NOx etc. from the stack in accordance with the methodologies developed by US EPA and as specified by Central Pollution Control Board in their Emission Regulations, Part II

Stack Monitoring Kit Consisting as follows:1) Temperature Range Ambient to 600°C2) Set of Inter Connection Hoses Pipes.3) Double Wall Cold Ice Box.4) Rotary Van type Vacuum pump Cap. 100 LPM.5) Dry Gas Meter Assembly.6) Velocity measuring Kit 7) Pitot Tube. 1-meter length. 8) Thermocouple.9) Glass Impingers No. 2, as a condenser & 3 No for sampling. Rotameters. 3 LPM for Gases and 100 LPM for Stack.Accessories 1. Impinger 275 ML: 01 No.2. Impinger 150 ML: 01 No.3. Thimble paper Pkt. of 25 Nos. 01 No.

Stack Monitoring Kit Consisting as follows:1) Temperature Range Ambient to 600°C2) Set of Inter Connection Hoses Pipes.3) Double Wall Cold Ice Box.4) Rotary Van type Vacuum pump Cap. 100 LPM.5) Dry Gas Meter Assembly.6) Velocity measuring Kit 7) Pitot Tube. 1-meter length. 8) Thermocouple.9) Glass Impingers No. 2, as a condenser & 3 No for sampling. Rotameters. 3 LPM for Gases and 100 LPM for Stack.Accessories 1. Impinger 275 ML: 01 No.2. Impinger 150 ML: 01 No.3. Thimble paper Pkt. of 25 Nos. 01 No.

• Application: Laboratory, Industrial
• Model Name/Number: GTI-SMK-123, SMK123
• Usage/Application: Industrial
• Brand Name: Greintech Instruments
• Analysis Time: 0 -30LPM for SPM
• Calibration: NABL
• Motor: Vacuum pump is rotary design, with capacity 60lpm gas flow with single phase motor, 220V.
• Power Source: Electronic
• Features: Compact design for field use, Handy and Digital manometer and temperature indicator, Including condenser unit for moisture determination

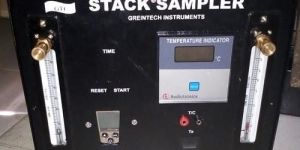

Located in Delhi, India, we are actively functioning as Manufacturer, Supplier ad Exporter of Stack Sampler all over the country and overseas. Our complete environmental solution Stack Sampler is developed by our team of experts in order to provide a sturdy, simple, reliable and efficient sampler for varied situations. It is specifically designed to monitor Particulate Matter & Gaseous pollutants from stack or chimney emissions. One can obtain it from us at nominal prices.

Stack Monitoring Kit, stability chambers, industrial electric ovens

Stack Sampler, Xenon Test Chamber, Chemetrics Water Test Kits

Stack Sampler, Gaseous Sampler, Handy Sampler, High Volume Air Sampler
