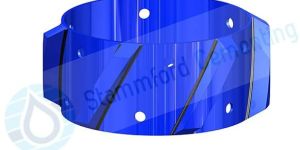

Sfsw-03-welded-spiral-vane-solid-rigid-centralizer-fixed stammford's welded spiral vane solid rigid centralizer fixed is designed same as welded spiral vane solid rigid centralizer except rows of set screws on the outer periphery of centralizer to restrict rotation. It can be easily converted from fixed to non fixed design by detaching set screws and positioning with stop collars.

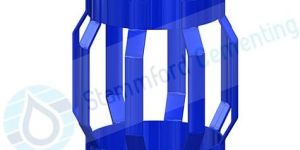

stammford's welded rotating centralizer is designed with the symmetric feature of hinged welded centralizer introduced with rotating liner in highly deviated well conditions. these centralizers are specifically designed to meet or even exceed api 10 d specifications to have high restoring force, which provides optimum standoff and frictional drag. centralizer allow free rotation of the pipe with maximum displacement efficiency for cleaning action of drilling fluids .slip on feature is for direct installation of it on pipe by slipping on. material is processed to prevent it from rust. can be shipped in half assembled condition only.

Straight vane aluminum rigid centralizer should be used in areas where a good primary cementing job is required, including deviated and horizontal wells, liner overlaps, and shoe joints. They are suitable for either cased or open hole.”dav02″ are made of high tensile, solid, cast aluminum, for shock, impact, and corrosion resistance.

Stammford's Slip on Welded Single Piece Bow Spring Sledge Chakra is made one piece welded at one side. Premium quality Bows have high restoring force uniform hardness all over. Slip on centralizers are provided for direct installation pipe by slipping on. It has High tensile strength, high shock absorption value and impact value.In welded centralizers, welding can never be as smooth as the single piece centralizer. Welding always be little overlapped or little exposed which cause friction to fluid while running in the hole but single piece centralizer have smooth corner radius which allow better fluid by pass and have low friction.This centralizer undergoes a special Iron Phosphate coating process to prevent it from rust and coated with special Polyester Powder. It is shipped in assembled condition only. These are available in all sizes ranging from 4½" to 20". Any special sizes or combination can available on request.

Stammford’s Slip On Welded Positive Spirolizer is designed specially for highly deviated or horizontal wells. Ideal for use with Liner Hangers. The steel construction ensures extra strength and superior toughness. The boat shaped Spiral fins minimize Drag Forces while running pipe. The fins glide smoothly in the low side of horizontal bore holes.Wide symmetrical fins are smoothly beveled on the both ends to have lower coefficient of friction and to ease casing movement in either direction. Fins designs also resist high side load. Spirally oriented Fins are welded to the one piece rolled formed End Collar under required temperature and condition with extra low Hydrogen coated Electrodes, which assures ultimate strength and uniformity in every weld. Steel construction provides superior toughness over other materials.Vanes can be selected to meet any hole dia from a choice of seven boat profile depths. Slip On Spirolizer are provided for direct installation on the pipe by slipping on and can be provided with compatible Stop Collars beveled from one side positioned by set screw.They are shipped in assembled condition only. These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These are available in all sizes ranging from 3 1/2" to 20". Any special sizes or combination can available on request.

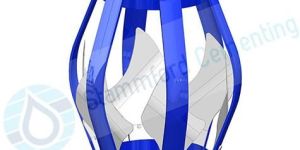

Stammford's slip on welded bow spring turbolizer is designed with turbulating blades bolted inside the welded bow spring centralizer on the spring bows to have localized turbulance for good cementing and even distribution of cement slurry around casing string. Slip on turbolizer are provided for direct installation on pipe by slipping on and setscrew for elimination of stop collars .can be shipped in assembled condition only.

Stammford's Slip On Welded Bow Spring Turbolizer Operational, General design, Features and Characteristics are the same as Hinged Welded Turbolizer. Collars are specially designed with roll formed peripheral ridges which provide extra rigidity. Slips On Turbolizers are provided for direct installation on pipe by slipping on and can be provided with Setscrew for elimination of Stop collar. They are shipped in assembled condition only.These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These are available in 3 Y2" to 20" sizes. Any special sizes or combination can available on request.

Stammford's Welded Slip on Spring Bow Centralizer, Its Operational, General design, Features and Characteristics are the same as Hinged Welded Centralizers. Collars are specially designed with roll formed peripheral ridges which provide extra rigidity. Slip On Centralizers are provided for direct installation on pipe by slipping on and can be provided with Set Screws for elimination of Stop collar.They are shipped in assembled condition only. These Centralizers are available with combination of Bows configure from choice of seven standard Bow height for optimum Starting and Restoring Force.These centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These are available in all sizes ranging from 3 1/2" to 20". Any special sizes or combination can available on request.

Stammford’s Slip On Welded Semi-Rigid Centralizers share many of the same design and operational features as Hinged Welded Centralizers. They can be directly installed onto pipe and are provided with set screw style Stop Collars to increase the holding force.The Collars are innovatively designed with roll formed peripheral ridges that provide extra rigidity. The Centralizers are available in a variety of Bows configured from a choice of four standard Bow heights. All Centralizers undergo a special iron phosphate coating process to prevent corrosion and are then coated with a special polyester powder.This product is shipped in assembled condition only. It is available in all sizes ranging from 3 1/2” to 20. Any special sizes or combination can be made available upon request.

Stammford's Slip On Solid Heavy Duty Welded Positive Spirolizer are specially designed for extra heavy load in highly deviated Horizontal well and for use with Liner Hangers. The heavy steel construction is highly effective as compare to other alloy. Wide symmetrical Spiral fins are welded to the one piece rolled formed Sleeve under required temperature and condition with extra low Hydrogen coated Electrodes, which assures ultimate strength and uniformity in every weld.Steel construction provides superior toughness over other materials. Vanes can be selected to meet any hole dia from a choice of seven boat profile depths. Slip On Spirolizer are provided for direct installation on the pipe by slipping on and can be provided with compatible Stop Collars beveled from one side positioned by set screw. Hydrodynamic shapes of spiral fins allow optimal mud displacement and minimal pressure drop across centralizer. Induced vortex flows enable superior mud removal. They have high wear resistance and resist high side load. Slip On Solid Spirolizer are provided for direct installation on the pipe by slipping on and can be provided with compatible Stop Collars beveled from one side positioned by set screw. They are shipped in assembled condition only.These centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder they are available in all sizes ranging from 3 1/2" to 20". Any special sizes or combination can available on request.

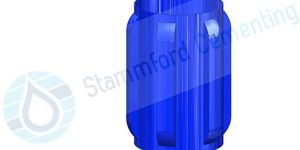

Steel construction provides premium quality. Slip on heavy duty straight spirolizer are provided for direct installation on pipe by slip on. Fins are designed to provide low coefficient of friction to reduce drag forces while run-in casing. Straight blades yield to allow passage to prevent from rust. Can be shipped in assembled condition only.

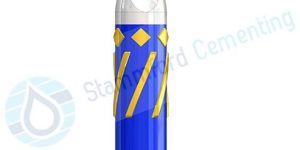

Stammford's reamer shoe is designed for typical well condition where reciprocation or rotation of casing is anticipated to ream the hole and land the casing or liner to abyss. It comprises a blade cutting structure and diamond shaped faces, which ensures safe passage of liners or casing meeting with api-iii c grading specification.

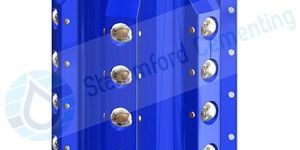

Stammford's low drag centralizers rollers are fixed on centralizer vanes such that the axis of rollers. The roller outer diameter is slightly larger than centralizer body outer dia. Rollers are capable enough to reduce considerable drag force due to low friction coefficient between well and centralizer. The small contact area of the rollers with the casing or borehole wall functions exceptionally well in under pressured conditions, where risk of differential sticking is high. High quality material provides excellent high temperature high-pressure performance and corrosion resistance, reducing the cost of replacement.

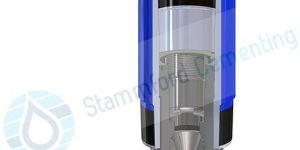

They also provide a profile for landing and bumping the wiper plugs at the end (after displacement).landing collar inserts have a profile to latch the wiper plugs in place to prevent them from rotating , locking or sealing during the process of drilling them out. For highly deviated or horizontal applications, the ball seat can be manufactured with a special profile to guide the ball seat. They are normally placed one or two joints above the nearest float collar.

Stammford's Hinged Welded Bow Spring Turbolizer induces a spiral flow pattern in the slurry thereby increasing displacement efficiency. It has deflector blades fitted on Standard Bow Springs. These blades or Fins are specially made of Heat Treated spring steel. Processed under rigid condition as per API 10D specifications.It is equipped with Right and Left hand combination. Welded Turbolizer is ideal for deviated and horizontal well. Bow Springs are strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes, which assured ultimate strength and uniformity in every weld. Integral hinge folded on the inside stay intact even under extreme stress. The End Collars are designed with a reinforcing Rib stamped into the End Collar to give maximum structural toughness Another special characteristics are built in Stop device on leading End Collar. The metal fins are installed on the bows, to help induce turbulence in the cement slurry during pumping operation. Spring action of blades makes them flexible, which minimize damage while moving downhole.This device improves the cleaning action of drilling fluids, distribute the cement slurry into well bore irregularities and minimize channeling. These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder These can be shipped in half assembled condition for economy in shipping and storage costs. These are available in 3 1/2 " to 20 " sizes. Any special sizes or combination can available on request.

Stammford’s Welded Hinged Spring Bow Centralizers are high quality welded products, which meet or exceed API 10D specification. Welded Centralizer has more Restoring Force as compare to Non Welded Centralizer. The Centralizers have Bow Spring strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes.Integral hinge folded on the inside stay intact even under extreme stress. The End Collars are designed with a Reinforcing Rib stamped into the End Collar to give maximum structural toughness. These generally shipped in half assembled condition for economy in shipping and storage cost.These Centralizers are available with combination of Bows configure from choice of seven standard Bow height for optimum Starting and Restoring Force. These centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These are available in all sizes ranging from 3 1/2" to 20 ". Any special sizes or combination can available on request.

Stammford's Hinged Welded Semi Rigid Centralizer ensures high efficiency in casing. Welded Centralizer has more Restoring Force as compare to Non Weld Centralizer. The Centralizers have double crested Bow Spring strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes, which assures ultimate strength and uniformity in every weld.Integral hinge folded on the inside stay intact even under extreme stress. The End Collars are designed with a reinforcing Rib stamped into the End Collar to give maximum structural toughness. These generally shipped in half assembled condition for economy in shipping and storage cost.These Centralizers are available with combination of Bows configure from choice of four standard Bow height for optimum starting and Restoring Force. These centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These are available in all sizes ranging from 3 1/2" to 20". Any special sizes or combination can available on request.

Stammford's Non Welded Semi Rigid Centralizers has the ability to withstand high lateral load encountered. This device ensures high efficiency in casing jobs on Deviated and Horizontal wells. Combining the features of Standard Spring Bow Centralizers and Rigid Centralizers. It has high Restoring force and high Stand Off with low Running Force which is ideally suitable for Deviated and Horizontal wells where load on springs are maximum.Bows spring is made of premium quality Alloy Steel under rigid Heat treatment plant. The spring characteristics of Double Crested profile permits compression to facilitate movement through Tight spots and Doglegs. Compared to other Spring Bow Centralizers this device attains high Stand Off because of high Restoring force. It increases contact area for less Bow penetration, which helps in complete Mud removal while Cementing. Bows can be configured for any hole dia from choice of Five standard Double Crested Bows. These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder.These can be shipped in half assembled condition for economy in shipping and storage costs. They are available in 4 1/2" to 20" sizes. Any special sizes or combination can available on request.

Stammford’s Non welded positive Centralizers are uniquely designed with flat bottom U profile of different depths. The Centralizers significantly reduce frictional drag while being used in deviated holes. They provide almost 100% Stand Off when run inside a cased hole. They are supplied 1/4" or 6 mm less than the inside diameter of the hole size in which Centralizer is to be run.This design eliminates weak (brittle) spots passage. U profile bow design permits maximum fluid passage. End Collars are designed with self-locking action, which are easy to assemble, time saver and have strong grip. The Ten special U sizes Bows can be configured to any hole dia. These Bows with extended profile prevent them from hitting against casing collars. Bows are of high quality steel for consistent characteristics. They are available in all sizes ranging from 4 1/2" to 20".These centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These can be shipped in half assembled condition for economy in shipping and storage costs. Any special sizes or combination can available on request.

Stammford's Non Welded Turbolizer have all the characteristic of regular Centralizer as far as Starting Force is concerned. The main difference is that Turbolizer Centralizer has deflector blades fitted on Standard Bow Springs. These blades or Fins are specially made of Heat Treated spring steel. Processed under rigid condition as per API 100 specifications.It is equipped with Right and Left hand combination. These bows are fitted on uniquely designed self locking End Collar. Another special characteristics are built in Stop device on leading End Collar. The metal fins are installed on the Bows, to help induce turbulence in the cement slurry during pumping operation. Spring action of blades makes them flexible, which minimize damage while moving downhole. This device improves the cleaning action of Drilling Fluids; distribute the cement slurry into Well bore irregularities and minimizes channeling.These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust then coated with special Polyester Powder. These can be shipped in half assembled condition for economy in shipping and storage costs. These are available in 4½ "to 20 "sizes. Any special sizes or combination can available on request

Stammford’s Non Welded Bow Spring Centralizers are made under state of art Engineering Techniques and rugged quality system. They are developed to exceed API 10D specification for used under most demanding condition. These Centralizers are designed for High Restoring Force and Low Starting & Running Force for centralizing the casing pipe in Vertical, Horizontal and Deviated well.Premium quality Bows are made of special Double Rolled Alloy Steel and hot formed in totally controlled Heat Treatment Plant to achieve the uniform hardness all over and good spring action. End Collars are designed with self-locking action, which are easy to assemble, time saver and having strong grip. The five standard sizes Bows can configure to any hole dia. These Bows with extended profile prevent them from hitting against casing collars. These Centralizers undergo a special Iron Phosphate coating process to prevent from Rust and then coated with special Polyester Powder.These can be shipped in half assembled condition for economical in shipping and storage costs. These are available in 4 1/2" to 20 " sizes. Any special sizes or combination can be made available on request.

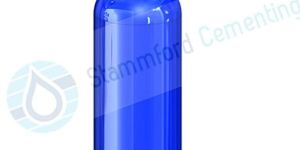

Available in 3 12 to 30.0. Special sizes can also be availed on request. Stammford's guide shoe floating equipment carries a simple and economical means to run-in casing wellbore. Most probably come up with round nose but eccentric nose can be provided as per demand where sloughing and highly deviated well bores are encountered. It is pdc drillable. Stammford�s guide shoe floating equipment are available with butt- weld, slip on and thread �end.

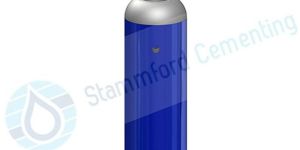

Stammford's float shoe singledouble valve is designed to ensure positive sealing in vertical, horizontal and deviational wellbores. Float shoe is available in steel grades like k-55, l-80, n-80, c-95, t-95 and p-110.we provide plunger valve in maximum application .the components material traceability starts from material certificates. Processed well in cnc machines. A non- metallic valve encased and held in place with a high-pressure cement mixture. Float equipment is pdc drillable. Stammford’s float shoe singledouble valve manufactured tested as per in compliance to api specification.

Float shoe is available in steel grades like k-55, l-80, n-80, c-95, t-95 and p-110.we provide plunger valve in maximum application. The components material traceability starts from material certificates. Processed well in cnc machines. A non- metallic valve encased and held in place with a high-pressure cement mixture. Float equipment is pdc drillable. High polymer plastic is used to manufacture valve consist of phenolic substance coated natural rubber.
