Standard Mechanical Works Anand Parvat, Delhi

Two color flexo sheet printer machine is a very useful for printing of Kraft paper and boards . Water based Ink is used for printing . The Ink gets dry instantly after printing and printed sheet can be used immediately for further processing.

he vertical model of machine is simple to operate & easy to handle, machine is provided with manual loading reel stand as well as automatic reel stand (depending upon the requirementsspecification of customer ). Tube heaters are provided for bush mounted for conversion of paper to 2 ply corrugated board.

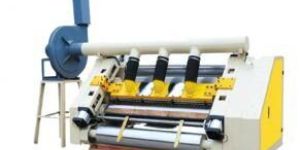

High Speed Single Face Paper corrugation machine oblique type is another offering from STANDARD.This machine is a high speed model for higher production and efficiency . Corrugated flute rolls and pressure roll are mounted on bearing for smooth running. Machine can run on Tube heater as well as on steam heating . Pre-heaters are also provided in this model to control moisture of paper and for perfect bonding of 2 ply .

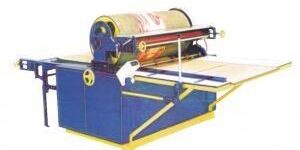

Single color flexo sheet printer machine is a very useful for printing of Kraft paper and boards . Water based Ink is used for printing . The Ink gets dry instantly after printing and printed sheet can be used immediately for further processing .

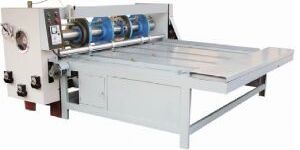

Machine is equipped with 3 sets of Slotting unit and 1 set of Corner cutting device,4 Sets of Creasing Dies and 3 sets of Half round Cutting device, operator friendly, Heavy and Quality Feeding table with adjustable Chains., Two Nos. of Heavy Side Lays for accurate feeding and registration, Slotting phase adopt electrical digital adjusting with 360°.The height of the Box can be set manually and for sharp adjustment, control panel is provided. Digital Counter with counter sensor for accurate counting of job

Reel to sheet cutting machine is built with heavy duty cast iron body and cutting blades(knives) is of die steel material . Four edge knives technology is used in machine which thereby increases notably the service life of knives .Knives can be flipped four times thereby preventing regrinding of knives shortly High quality nylon sandwich conveyor belt with double tightner adjustment . Complete set of spur gear provided with machine to change cutting length of sheets. A binded booklet is also provided for gear combination information to cut different size . Heavy duty reel stand along with break and reel shaft to carry paper reel and corrugated roll .AC variable drive with AC motor ,counter and sensor complete.No cutting variation , No cross cutting , No hush-up , No connective sheet or Irregular out in machine .Machine is capable of cutting 3.5 to 5 tones of material in normal 12 hrs. shift . Machine is suitable for 30gsm to 550gsm paper easily .

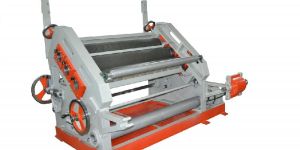

High Speed Single Face Paper corrugation machine Finger less type is another offering from STANDARD.This machine is a high speed model for higher production and efficiency . This machine is useful for reducing the finger marks on corrugated board and for increasing the strength of corrugated board . Machine is recommended on steam heating for high production .

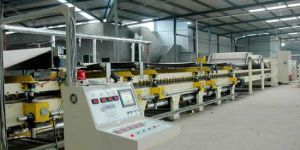

STANDARD Offers complete automatic 35 layer(ply) automatic corrugated board making plant solution for higher production and less labor involve in production for both domestic as well overseas market, Our plants speed range from 80-250mmin . Complete computerized machines .Line available in various deckle starting from 1400mm, 1600mm, 1800mm, 2000mm, 2200mm.This line is being imported from china and Taiwan, Further with our fingerless high speed machine unmatched corrugated board quality and strength is achieved . Bearing , conveyor belt , servo-motor , accessories , plc and various other equipment are of Taiwan , Japan and Germany make.

The machine finds its use in the application of glue on the tips of corrugated surface of paper or a board. The gap between the rolls is adjustable the glue tray can be raised or lower to adjust the glue level. The Sheet Pasting (PU Coated Rollers S.S Rollers) in which the sheet rollers remain intact and there is no possibility of pitting on the rollers. This Machine is a special gum saving model in which 4 numbers rollers are used for extremely accurate application of glue on the tips of the surface of corrugated board or paper. This machine is also very useful for evenly gluing duplex paper .

Automatic gluing machine (coversheets feed by feeder) has the function of automatic feed paper and gluing, automatic temperature control and 24-hours timer. The suction devices for the assembly lines prevent powder paper curling and bubbling. Feeder suction is applied, characteristic of steady and quick paper conveyance. Hot melt adhesives (animal adhesives) are used for health and environmental protection on the basis of recycling to save costs at the speeds adjustable.

eel to sheet cutting machine is built with heavy duty cast iron body and cutting blades(knives) is of die steel material . Four edge knives technology is used in machine which thereby increases notably the service life of knives . Knives can be flipped four times thereby preventing regrinding of knives shortly . High quality nylon sandwich conveyor belt with double tightner adjustment . Complete set of spur gear provided with machine to change cutting length of sheets. A binded booklet is also provided for gear combination information to cut different size . Heavy duty reel stand along with break and reel shaft to carry paper reel and corrugated roll . AC variable drive with AC motor ,counter and sensor complete. -No cutting variation , No cross cutting , No hush-up , No connective sheet or Irregular out in machine . Machine is capable of cutting 3.5 to 5 tones of material in normal 12 hrs. shift . Machine is suitable for 30gsm to 550gsm paper easily .
