Sumitron Exports Private Limited Rohini, Delhi

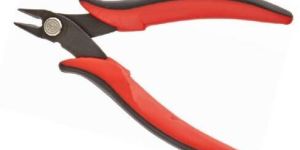

Application : Wire Cutting

Color : Brown, Grey, LIght White, Metallic, White, Red

Handle Material : Plastic

Material : Mild Steel

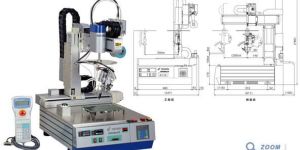

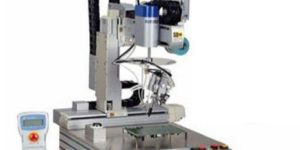

The Tsutsumi Minimax II TX-821 is a soldering robot used for point and slide soldering. The X, Y, and Z axis have 300X200X100 mm range of operation. It has an AC servo motor which is virtually maintenance free. It has a four axis tooling system. Every axis has a ball screw for precise operation. A low speed movement of 0.1mmsec can be set. A low speed ensures good stable slide soldering and also reduces the tact time. It has a 4-axis PTP control. It also has simultaneous 3-axis linear and circular interpolation motion. It has MAXEED TS-621 controller. It enables registering of up to 48 soldering programs. 99 soldering conditions can be added. The computer software TSCOWin manages the data required for soldering on a computer. It has a large data storage capacity, up to 6000 program steps and 3000 positions of points can be stored.

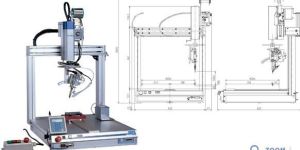

The Tsutsumi miCross TX- m444 is a soldering robot used for point and slide soldering. The X, Y, and Z axis have 400X400X100 mm range of operation, which corresponds to 200X200X100 mm range of motion. The base of the robot is made of aluminum to give it good rigidity. It has servo motor and a ball screw which help in achieving accurate repetitions and improving the carrying capacity. It has a simultaneous 4-axis PTP control. It also has simultaneous 3-axis PTP and CP functions. It has MAXEED TS-621controller which is used to check and adjust feeding amount, feed rate, and temperature of soldering wire.

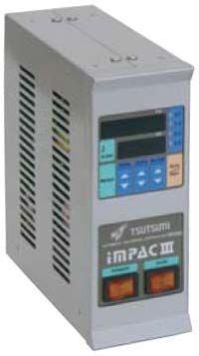

The Tsutsumi IMPACIII TS-711 is an automatic controller for soldering. It has a 32 bit micro-computer for controls. It reads and writes data using the RS-323C communication port. It enables registering of up to 31 soldering conditions. These conditions check for the length and end of the soldering wire, clogging of solder, temperature of soldering iron tip, and so on. In case of any problem, the controller stops the soldering operation and sends the error message to the output device. The solder length to be fed can be set from 0 to 99.9mm or 0 to 999mm. The solder feeding speed can be set from 0 to 99.9mmsec. The soldering time can be set from 0 to 9.99sec or 0 to 999.9sec. Optionally use the computer software TSCOWin to manage the data required for soldering on a computer.

The Tsutsumi iCross TX- i1224 is a soldering robot used for point and slide soldering. The X, Y, Z and R axis have 200X200X100mm and 360 degree range of operation. The base of the robot is made of aluminum to give it good rigidity. It has stepper motor and a ball screw which help in achieving accurate repetitions and improving the carrying capacity. It has a simultaneous 4-axis PTP control. It also has simultaneous 3-axis PTP and CP functions. It has IMPACIII controller which is used to check and adjust feeding amount, feed rate, and temperature of soldering wire.

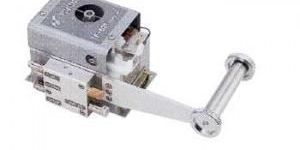

The Tsutsumi TF-621 is a feeder unit. It is attached to the soldering robot. Solder wires with diameters from 0.5mm to 1.6mm can be used. The feeder ensures precise feeding of solder wire up to 0.1mm. The feeder is also used to detect clogging of solder. It also detects the end of solder wire. It has a pulse motor drive. Optionally cut-in feeder rollers can be attached. The rollers prevent the flux from scattering.

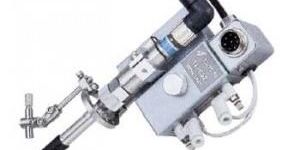

The Tsutsumi TI-652 is a soldering iron. It has a rotary cylinder which controls and ensures smooth vertical motion of the tip. The cylinder uses an S character curve control. This control reduces the scattering of solder ball during operation. It also reduces the up-down motion of the tip, thus reducing the tact time. The iron has a stroke length of 8mm. The Tsutsumi TI-632 is a soldering iron. It has a direct dynamic cylinder .The iron has a stroke length of 15mm. Soldering tips TKN or TKH can be used.Optional accessories improve the performance of the iron. It uses a ceramic heater TH-6-70-100. It uses the thermocouple unit TCA-16. The heater and thermocouple unit must be purchased separately along with the soldering iron. Another optional accessory is the holding arm for the iron. For point soldering, holding arm TR-621 can be used. Optionally, Ruby Nozzle TNZ-3 can be used to precisely supply solder wire to the soldering tips.

Weight : 10-20Gm, 20-30Gm, 30-40Gm,40-50Gm

Voltage : 110V, 220V, 280V

Condition : New,Old

Certification : CE ISO Certified, 9001: 2008

The Simco FMX-004 is an electrostatic field meter. It is used to locate and measure static charges. It is very compact, pocket size and simple to use. It has the following functions which are operated by pushbuttons: Power onoff, Zero adjustment, Ion Balance and Hold. Use the hold button to retain the display of the reading. It tests for positive and negative polarity up to + 30.00 kV at a distance of 1inch. It has two LED lights which are used to correctly position the field meter from the object. The results are displayed on a LCD monitor. The results are also displayed as bar graphs: positive polarity is displayed as red and negative polarity as blue. It also displays error messages and battery capacity. The field meter can also use air ionization to measure the static charges. For accurate results the field meter is well-grounded.

The Datapaq Reflow Tracker temperature profiling system travels through the process, enabling you to monitor wave and reflow soldering, as well as vapour phase, selective soldering and rework stations. Comprised of specifically designed thermocouples, data loggers, protective thermal barriers and Insight software, this system will help you optimize product quality, expedite process set-up, increase yields and minimize the need for rework.

Weight : 1-5 Kg, 5-10 Kg

Voltage : 110V, 220V, 280V

Certification : CE ISO Certified, 9001: 2008

Features : Fine Finish, Quality Tasted, High strength

Condition : New,Old

Color : White, Grey, Black

Material : Plastic, Alloy steel,

Warranty : 1 Year, 2 Year

Feature : Fully Automatic shutoff, Quality Tasted, High strength

Color : Silver, Grey, Black

Weight : 50-100 Gm, 100-150 Gm, 150-200 Gm

We are the main supplier of this product.

Feature : Easily prevents defects from printing process, Quality Tasted, High strength

Voltage : 110V, 220V, 280V

Driven Type : Electric

Color : Silver, Grey, Black, Yellow

Warranty : 1 Year, 2 Year

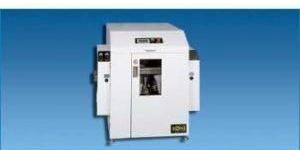

The KOKI VIS 350 is a spray fluxer used to spray flux from the underside of the PCB. This ensures that the top side of the PCB is not affected by the flux and water mists. It provides an even flux coating. The flux is sprayed from a shorter distance. This reduces the rebound of flux particles thus ensuring good coating efficiency. It results in less wastage of flux material. It has a sub-tank of flux. This allows changing of flux without stopping the machine. It has a LCD monitor where the X and Y dimensions of the spray area can be set. The monitor also displays error messages like flux empty, less air pressure, and so on. It has a pre-heater unit which heats the PCB before spraying the flux. This reduces the adhesion of water vapor to the PCBs by 30%, which ensures better soldering quality. With evaporation of water in the pre-heater, the flux fluidity is improved.

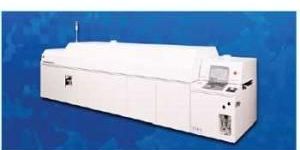

The KOKI ECOR 4077NA – ECOR 4099NA are reflow systemsovens. It is used in reflow soldering of surface mount electronic components. It circulates heated gases in the heater like a tornado. This is called the Tornado circulation method. This ensures good circulation and less loss of heated air. The power consumption has been reduced by 40%. The oven has a very good sealing system which also reduces the consumption of N2. It has a very good mist collection system. The oven uses convection heating technique to endure uniform heating capacity. It has rail system with adjustable width which ensures that the rails are parallel even under high temperature. The PCBs are transported safely on these rails.

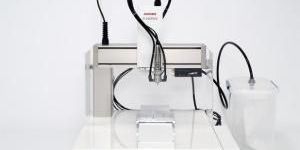

The Janome JR2000NERT Series is a depaneling robot. It is used in various operations related to PCBs, for example, manufacturing and cleaning of PCBs. The operations are controlled using very simple software. Customize the software to suit your requirement. The software can save up to 255 programs. The robot consists of a robotic unit, electrically driven router, software, and a kit for collecting dust. The robot has a very sturdy design with its base and column made of aluminum alloy. The robot has a double-check system, which minimizes defects. It has a labyrinth mechanism which does not allow objects such as screws, liquid, and dust to enter the robot. It has an inbuilt sequencer that runs the predefined programs. Display is available in 10 different languages. Measurement units can be switched between mm and inches.

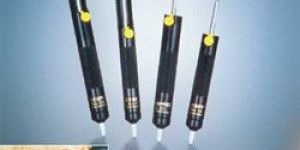

Hakko Sppon is a light weighted and economically designed desoldering tool. Though it is light weighted, it is powerful enough for a heavy duty desoldering procedure. This tool comes with a unqiue cleaning shaft that allows easy cleaning of the nozzle. The nozzles are easily replaceable and can be chosen from the Hakko series. The Hakko Sppon comes in five different models that have different absorption capacities, namely 18 (absorption capacity: 12cm3(12cc)), 18G (absorption capacity: 12cm3 (12cc) w Guard), 20 (absorption capacity: 20cm3(20cc)), 20 G (absorption capacity: 20cm3 (20cc) w Guard), and DS01P (absorption capacity: 28cm3(28cc)).

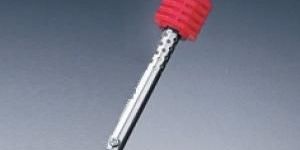

Hakko Red Soldering Iron is a soldering iron with red handle and has Nicrome Heater as its heasting element. It has a power consumption of 20 W to 60 W. The device comes with a chargeable solder tip. This device is available in four different models, that is, 500, 501, 502, 503. This soldering iron is suitable for soldering works, such as repairing electric household appliances, circuit boards, connectors. To be very specific, you can use 20W to 40W soldering iron for circuit boards, small electrical parts, and so on.

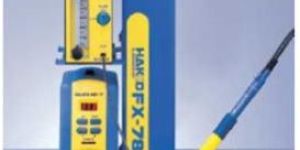

Hakko N2 System Fx 791 is a Nitrogen generator that works along with Hakko FM 2026 to act a soldering station. Fx 791 uses membrane technology to convert clean and dry compressed air in to Nitrogen and has a control knob for controlling the flow of Nitrogen. The Nitrogen is preheated for soldering. The N2 system is ideal for lead free hand soldering applications, and saves a lot of bench space. Soldering can be done on multilayer or high density PWB that are sensitive to heat without raising the tip temperature. This station generates less bridge even for components susceptible to bridging.

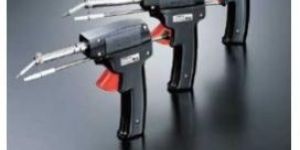

Hakko MG Soldering Iron is a soldering gun having Nichrome Heater as its heating element. It has a solder feed control, which ensures precise adjustment of the solder wire up to the soldering iron tip. The solder wire can be adjusted using the scew mounted on the solar feed adjuster, within a range of approximately 3mm to 8mm. In addition, the solder wire can be easily replaced with a gentle upward push to the trigger. The trigger operation, which has an adjustable pull range, of the soldering gun allows easy one-hand soldering as well. This gun comes in various models with power consumption ranging from 30W to 150W.

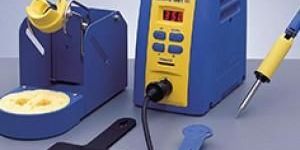

The HAKKO FX 951 is 75W digital soldering station.It has superior heat transfer and thermal recovery rate. It can be used in areas with high temperatures.The operating temperature range is between 200 to 450°C.It has a compact vertical design, which increases the working space on the work bench.It comes with HAKKO FM 2028 soldering iron. Optionally you can use HAKKO FM 2026, which is a N2 type of soldering iron. You can also use HAKKO FM 2032, which is a micro soldering iron. It has an adjustable holder for the soldering iron. Adjust the holder to your working style. The holderensures accident free operation while working with hot parts of the soldering iron. Power saving with automatic sleep and shut off options when soldering iron is placed in the holder.It has a lock-type sleeve assembly for soldering irons which enables quick change of the composite tips.It has a control key card which enables locking at a temperature setting.It has an alarm which warns when the solder joints reach low temperatures.

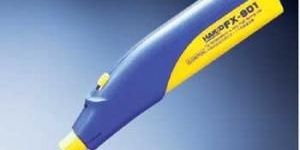

The HAKKO FX 901 is a battery operated soldering iron. Lightweight and portable, it can be used for field service, repairs, and hobby. It can be operated with various batteries, such as, Alkaline, Nickel-Cadmium or Nickel-Hydrogen batteries. Four AA batteries power the iron. Operating temperature is up to 315°C. Alkaline battery operates continuously for 60 mins and Nickel Hydrogen battery for 120 mins. Easy tip replacement. Safe to use – no spark or flame. Best heat conductivity among the available range of battery operated soldering irons.

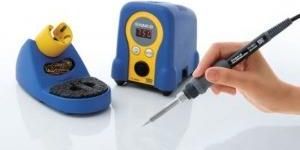

Hakko FX 888D is a soldering station that is a digital version of soldering station FX 888. This device consumes 65W and has an edge over FX 888 because of its digital display, password locking system, and digital calibration. The display helps you see the actual and the set temperature. The device also offers faster thermal recovery with 30% higher power compared to the previous version. This soldering station accommodates temperatures between 200°C to 480°C and has a temperatures stability of +- 1 Degree Celsius. In addition, its iron holder is full of functions as it improves the ease of use and also brings visual consistency to the work environment.
