Swastik Pipes Limited Punjabi Bagh, Delhi

We manufacture and export hollow sections, structural hollow sections, hollow steel sections, square rectangular hollow sections, round hollow sections, mild steel black ERW square tubes, rectangular tubes & round hollow section tubes and hot rolled steel sections as per customer's requirement. These sections are available with anti rust oil coating from inside & outside to ensure safe delivery to end customers.

We manufacture and export hollow sections, structural hollow sections, hollow steel sections, square rectangular hollow sections, round hollow sections, mild steel black ERW square tubes, rectangular tubes & round hollow section tubes and hot rolled steel sections as per customer's requirement. These sections are available with anti rust oil coating from inside & outside to ensure safe delivery to end customers.

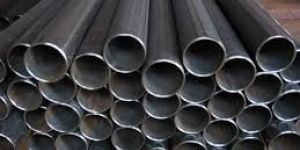

Steel pipes and tubes can be used for many purposes such as steel pipes for frames and shafts, steel pipes for bicycle frames, steel pipes for furnitures, cdw pipes for shockers, steel pipes for various structural purposes, steel pipes for various engineering purposes etc. We have a very wide range of steel pipes and tubes products. The lengths of the steel pipes & tubes range from 4m to 6.5m unless otherwise specified by the customers. We manufacture steel pipes and tubes in various shapes and size such as square, round, rectangular, triangular, and elliptical or any special shape.

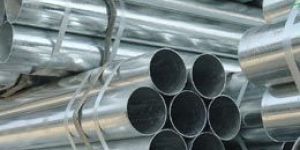

Used for scaffolding and fencing applications, our Hot Dip Galvanized Pipes are especially fabricated with the help of Electric Resistance Welding process. We are amongst the chief Manufacturers, Exporters, and Suppliers of the long lasting Hot Dip Galvanized Pipes, thus offer these at competitive prices. Description Tubes are made from edge trimmed mild steel strips that are slitted from hot rolled low carbon steel coil and conforms to IS: 10748-1995. These edge trimmed strips are formed mechanically into required circular shape and high frequency electricity, i.e., 4,50,000 cycles/second is then used to fuse the pipe together to form a weld joint thus become homogeneous part of the completed tube. The tubes then passes through the sizing section where dimensional tolerance if any are corrected, where after they are cut to length and ends beveled before hydrostatic testing. Thereafter they are sent for protective surface finishing operation such as Hot Dipped Galvanizing or Varnishing as per the specific requirements. The tubes are offered beveled, plain ended or threaded with screwed & socketed. Size Ranging From 15mm NB to 300mm NB with installed capacity (as per international standard BS/EN/ASTM A53 SCH 40) of 2,40,000 MT per annum (UL Approved pipes) Thickness Range From 2.00mm to 10.00mm Applications Automotive PurposesIdlers / ConveyorsStructural PurposesElectric PolesScaffoldsWater, Gas & Sewage pipesWater wells (casing pipes)Air, Steam, Oil & Gas transmission Manufacturing Process Step � 1 Purchasing Raw Material (Steel/Skelp) Material received from SAIL / ESSAR Steel Ltd. / Lloyds / ISPAT or other any approved vendor. The steel shall be fully conformed to the API 5L / IS Standard Specification or as per Customer�s Specification. Testing/ Checking and Identification of Raw material shall be done as per API 5L / IS Standard Specification.Step � 2 Edge Preparation & Milling Edges of Coil / Skelp are form in edge breaking unit at initial stage so that perfect forming is achieved at welding area. Strip edges are given mill cut on both sides with edge milling machine to make the edges clean and square for perfect butt welding with high frequency. It shall be done before passing the strip to forming process.Step � 3 Forming of Pipe Strip is passed in number of horizontal rolls after edge breaking and form cages supported by vertical rolls to receive an open edge round tube before welding. At the final stage of forming, rolls are provided with guide fins to have a proper proportionate gap and correct entry in welding roll.Step � 4 High Frequency Welding Finally the pipe shape performed after forming process, it passed through welding heads followed by the seam guide. The process of welding is based on ERW process. Electric welding shall be performed with a minimum welder frequency of 200 KHz. The fusion takes place through a roll assembly set for proper welding. Bead trimming shall be done as per API 5L / IS Standard or as per Customer Specification.Step � 5 Seam Normalizing Normalizing is carried out on weld and HAZ after welding at the temperature of 8500 C to 9000 C. The temperature of seam normalizing is monitored by a non contact indicator having the digital display along with recorder. Equipment: Seam Normalizer Capacity : 500 KWStep � 6 Sizing A set of sizing roll is ahead of cooling zone, water cooled pipe is passed through sizing rolls which control the Ovality and required dimensions, which is finally verified with measuring instruments as specified in relevant Specification.Step � 7 NDT Testing (Eddy Current) Eddy current testing is the process of inducing small electrical currents in an electrically conductive article and observing the resultant reaction between the magnetic fields involved. Equipment: Eddy Current Flaw Detector (PC based).Step � 8 Finishing of the Pipes Finished pipe are cut to required length by cut of carriage. Thereafter both ends of pipes are beveled by the end facer. Finally each pipe are checked for its Outer diameter, Inner Diameter, Thickness, Straightness, and length.Step � 9 Hydro Testing After completing all the above process, all pipes transferred to the hydro testing bench. The test pressure shall be given to the pipes as per relevant specification or as per Customer Requirement.Step � 10 Galvanizing Process Hydro Test passed pipes are send for Hot Dip Galvanizing confirming to various Indian Standard / International Standard.Step � 11 Marking Marking on the pipes shall be paint stenciled as stipulated in API 5L/ IS Standard or as per the customer�s requirement, on each length of the pipe

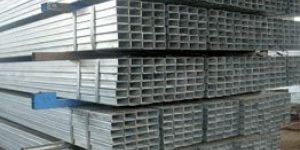

The company is chiefly engaged in the manufacturing, exporting, and supplying of the highest grade Hollow Steel Sections all across the globe. Our Hollow Steel Sections are provided with anti-rust oil coating from inside and outside for ensuring their safe delivery. The wide range of Hollow Steel Sections is offered by us as per IS: 4923 standards and client�s specification, at affordable prices. We Offer Square Hollow Sections (SHS)Rectangular Hollow Sections (RHS)Round Hollow SectionsMild Steel Black ERW Square TubesRectangular TubesRound Hollow Section TubesHot Rolled Steel Sections Applications Oil & GasSugarMetallurgicalPharmaceuticalPulp and paperChemicalBoilersRailway CoachesFertilizerDairy & Food ProductsInstrumentationShipAutomobileHeat exchanger Manufacturing Process Step � 1 Purchasing Raw Material (Steel/Skelp) Material received from SAIL / ESSAR Steel Ltd. / Lloyds / ISPAT or other any approved vendor. The steel shall be fully conformed to the API 5L / IS Standard Specification or as per Customer�s Specification. Testing/ Checking and Identification of Raw material shall be done as per API 5L / IS Standard SpecificationStep � 2 Edge Preparation & Milling Edges of Coil / Skelp are form in edge breaking unit at initial stage so that perfect forming is achieved at welding area. Strip edges are given mill cut on both sides with edge milling machine to make the edges clean and square for perfect butt welding with high frequency. It shall be done before passing the strip to forming process.Step � 3 Forming of Pipe Strip is passed in number of horizontal rolls after edge breaking and form cages supported by vertical rolls to receive an open edge round tube before welding. At the final stage of forming, rolls are provided with guide fins to have a proper proportionate gap and correct entry in welding roll.Step � 4 High Frequency Welding Finally the pipe shape performed after forming process, it passed through welding heads followed by the seam guide. The process of welding is based on ERW process. Electric welding shall be performed with a minimum welder frequency of 200 KHz. The fusion takes place through a roll assembly set for proper welding. Bead trimming shall be done as per API 5L / IS Standard or as per Customer Specification.Step � 5 Seam Normalizing Normalizing is carried out on weld and HAZ after welding at the temperature of 8500 C to 9000 C. The temperature of seam normalizing is monitored by a non contact indicator having the digital display along with recorder. Equipment: Seam Normalizer Capacity : 500 KWStep � 6 Sizing A set of sizing roll is ahead of cooling zone, water cooled pipe is passed through sizing rolls which control the Ovality and required dimensions, which is finally verified with measuring instruments as specified in relevant Specification.Step � 7 NDT Testing (Eddy Current) Eddy current testing is the process of inducing small electrical currents in an electrically conductive article and observing the resultant reaction between the magnetic fields involved. Equipment: Eddy Current Flaw Detector (PC based).Step � 8 Finishing of the Pipes Finished pipe are cut to required length by cut of carriage. Thereafter both ends of pipes are beveled by the end facer. Finally each pipe are checked for its Outer diameter, Inner Diameter, Thickness, Straightness, and length.Step � 9 Hydro Testing After completing all the above process, all pipes transferred to the hydro testing bench. The test pressure shall be given to the pipes as per relevant specification or as per Customer Requirement.Step � 10 Galvanizing Process Hydro Test passed pipes are send for Hot Dip Galvanizing confirming to various Indian Standard / International Standard.Step � 11 Marking Marking on the pipes shall be paint stenciled as stipulated in API 5L/ IS Standard or as per the customer�s requirement, on each length of the pipe

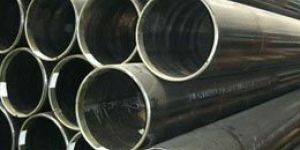

We are reckoned as the prime Manufacturer, Exporter, and Supplier of the efficient ERW Welded Pipes in India. Duly tested for their strength and other such factors, our ERW Welded Pipes are popular for their performance in the worldwide markets. The range of ERW Welded Pipes is available at affordable prices with us. Size Range : From 3� diameter to 10� diameter Conforms To API-5LPSL-1PSL-2 Grades ABX-42X-46X-52 Applications Air, steam, oil & gas transmissionStructural purposesIdlers / conveyorsAutomotive purposesScaffoldsWater wells (casing pipes)Water, gas & sewage pipesElectric polesManufacturing Process Step � 1 Material received from SAIL / ESSAR Steel Ltd. / Lloyds / ISPAT or other any approved vendor. The steel shall be fully conformed to the API 5L / IS Standard Specification or as per Customer�s Specification. Testing/ Checking and Identification of Raw material shall be done as per API 5L / IS Standard Specification.Step � 2 Edge Preparation & Milling Edges of Coil / Skelp are form in edge breaking unit at initial stage so that perfect forming is achieved at welding area. Strip edges are given mill cut on both sides with edge milling machine to make the edges clean and square for perfect butt welding with high frequency. It shall be done before passing the strip to forming process.Step � 3 Forming of Pipe Strip is passed in number of horizontal rolls after edge breaking and form cages supported by vertical rolls to receive an open edge round tube before welding. At the final stage of forming, rolls are provided with guide fins to have a proper proportionate gap and correct entry in welding roll.Step � 4 High Frequency Welding Finally the pipe shape performed after forming process, it passed through welding heads followed by the seam guide. The process of welding is based on ERW process. Electric welding shall be performed with a minimum welder frequency of 200 KHz. The fusion takes place through a roll assembly set for proper welding. Bead trimming shall be done as per API 5L / IS Standard or as per Customer Specification.Step � 5 Seam Normalizing Normalizing is carried out on weld and HAZ after welding at the temperature of 8500 C to 9000 C. The temperature of seam normalizing is monitored by a non contact indicator having the digital display along with recorder. Equipment: Seam Normalizer Capacity : 500 KW.Step � 6 Sizing A set of sizing roll is ahead of cooling zone, water cooled pipe is passed through sizing rolls which control the Ovality and required dimensions, which is finally verified with measuring instruments as specified in relevant Specification.Step � 7 NDT Testing (Eddy Current) Eddy current testing is the process of inducing small electrical currents in an electrically conductive article and observing the resultant reaction between the magnetic fields involved. Equipment: Eddy Current Flaw Detector (PC based).Step � 8 Finishing of the Pipes Finished pipe are cut to required length by cut of carriage. Thereafter both ends of pipes are beveled by the end facer. Finally each pipe are checked for its Outer diameter, Inner Diameter, Thickness, Straightness, and length.Step � 9 Hydro Testing After completing all the above process, all pipes transferred to the hydro testing bench. The test pressure shall be given to the pipes as per relevant specification or as per Customer Requirement.Step � 10 Galvanizing Process Hydro Test passed pipes are send for Hot Dip Galvanizing confirming to various Indian Standard / International Standard.Step � 11 Marking Marking on the pipes shall be paint stenciled as stipulated in API 5L/ IS Standard or as per the customer�s requirement, on each length of the pipe.

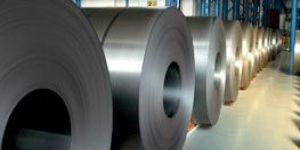

We are the chief Cold Rolled Steel Sheets and Coils Manufacturer, Exporter, and Supplier in India. Our Cold Rolled Steel Sheets and Coils are available in a wide range, which is duly tested for its dimensional accuracy, strength, etc. The Cold Rolled Steel Sheets and Coils can be availed at affordable prices from us. Width : From 14 mm to 1250 mm Thickness : From 0.20mm to 5.0 mm Installed Capacity : Of 1, 00,000 M.T./Annum Availability Hot rolled oiled & picketed steelCRCA strips with low carbonMedium carbon steelSemi processed unalloyed electricalHot rolled oiled & picketed steelHigh strength low alloy steelSemi processed unalloyed electrical Applications Fabrication & EngineeringA.C. & Refrigerator industryElectrical PartsAutomobile IndustryWashing MachineElectronic PartsSteel Furniture Industry Manufacturing Process The manufacturing processes utilizes the latest technology for producing high quality cold Rolled steel coils and sheets. H.R. Coils are procurred from integrated steel plants e.g. SAIL, TATA, and ISPAT etc to ensure the desired raw material standard to meet stringent quality. H.R. Slitter The pull through H.R. Slitting line slits the rough edges of the H.R. CoilsPickling In Semi continuous line surface ferrous scale of H.R. Coils is removed with the usage of warm Hydrochloric Acid. Coil is subsequently rinsed with cold and hot water. The access water on the strips is dried at hot air blower.Cold Rolling 6 Hi Rolling Mill (wider) - One4 Hi Rolling Mill (narrow) - TwoThe Pickled H.R. Coils are cold rolled to required thickness in several passes.Mills are equipped with all facilities to ensure -- Closure dimensional.Tolerances, shape and size .Annealing To attain required properties for formability, cold rolled coils are annealed in protective (non-oxidizing) nitrogen atmosphere. Furnaces are equipped with all required auto controlsSkin Passing Skin passing of cold rolled steel coils is carried out to remove stretcher strain and obtain desired finish such as mat or bright achieve flatnessCR Slitters By the precision slitting machines coils are slit to the required width / to cater to the diversified need of customers.Cut to Length Coils are cut into sheets as per customer requirements.Oiling The coils and sheets are provided with a uniform coating of rust preventive oil to protect surface from rusting, atmospheric corrosion. This also facilitates storage for long duration.Packing The coils / sheets are first covered by Polyethene sheet. These are covered by Hessian and sheet metal packaging as per customers requirement. These are tied with steel straps to avoid any damage in handling, transportation and storage. Click here for more details

With the growing demand of cold rolled strips and sheets, SWASTIK PIPE LIMITED has started manufacturing CR coils and strips in year 2003 with annual capacity of 1 lac MT annum in various sizes and thickness.On line stringent quality checks ensure the tolerances and dimension for sophisticated applications, CR production plant consists of two 4 HI and one 6 HI cold rolling mills along with bell furnaces, Skin Pass, Slitting, cut to length and testing facilities.

cold rolled strips and sheets, SWASTIK PIPE LIMITED has started manufacturing CR coils and strips in year 2003 with annual capacity of 1 lac MT annum in various sizes and thickness.On line stringent quality checks ensure the tolerances and dimension for sophisticated.CR production plant consists of two 4 HI and one 6 HI cold rolling mills along with bell furnaces, Skin Pass, Slitting, cut to length and testing facilities.CRCA strips with low carbon, Medium carbon steel, High strength low alloy steel, Semi processed unalloyed electrical, Hot rolled oiled & picketed steel .

Width : 12mm to 1250mm

Thickness : 0.3mm to 3.2mm

CR production plant consists of two 4 HI and one 6 HI cold rolling mills along with bell furnaces, Skin Pass, Slitting, cut to length and testing facilities.

Apart from BIS licenses, SWASTIK PIPE LIMITED also enjoys the confidence of API Authorities and has been possession API-5L license to mark API Monogram on its products.At our Kosi Kalan Factory, we are manufacturing and supplying ERW Pipes in the size range of 3” dia to 10” dia in strict conformity with API-5L, PSL-1 & PSL-2 Specifications and Grade A, B, X-42, X-46 and X-52.Our products are put to a series of stringent quality control tests before being considered fit for supply. Our products are automatically non-destructively tested with latest electronic equipment like Eddy Current Tester and Ultrasonic Testing Machine.
