Tele Cab Enterprises Chandni Chowk, Delhi

Power Pass 30 dB Gain ,20 dB Slope Hybrid IC Protected Channel loading capacity:40 ~ 550 MHz - 67 Channels 40 ~ 750 MHz - 97 Channels

Optimum for Trunk Distribution ± 0.5 dB Flatness Response 2 Stage Slope Control SMD Technology Plug in and Fixed variable equalizer Channel Loading Capacity: 40 ~ 550 MHz - 67 Channels 40 ~ 750 MHz - 97 Channels

Built in Diplex Filter (Factory Tuned for different Reverse Path) Forward Path gain 30 dB Reverse Path gain 15 dB Output level 105 dB Main cum Power Pass Anti Corrosive tin Plated Housing Large Aluminium heat Sink for efficient Heat Dissipation Channel loading capacity: TC 940 : 40 ~ 450 MHz 55 Channels TC 950 : 40 ~ 550 MHz 67 Channels TC 970 : 40 ~ 750 MHz 97 Channels TC 1080 : 40 ~ 860 MHz 106 Channels

CCIR PAL BG E2 – E31 (67 Channels ) 67 channels. Two lines alphanumeric LCD display with backlight. Latest state of the art flash micro controller from Motorola. Low component count. More reliable and less failure. Accuracy ± 2 dB has been achieved with sophisticated instruments of H.P. Fine tuning for each channel in steps of 50 KHz. Digital PLL Synthesized tuner. Error correction for individual channels with and without Attenuator. No need for correction chart. Single switch audio selection. Audio output on speaker in audio mode. No need for Attenuator selection. Built in Attenuator provides reading from 35 dBµV to 115 dBµV. Digital display of R.F. signal in dBµV Measurements of Battery Voltage Continuous measurements Power Pass Reading (in AC voltage). Channel number with accurate frequency and mode (audiovideo) also displayed 4-Channels (Absolute Mode) Measurement 4-Channels (Slope Mode) Measurement Favorite channel marking for individual channels for easy viewing of selected channels. These features are used for quick study of your Cable TV System 10 Location 106 Channel each Memory

32 dB Forward Gain Gain Flatness ± 0.5 dB Gain Control 20 dB variable Variable Slope Control,Mains cum power pass,Frequency Response 40 ~ 550 MHz 67 Channels,.Double Output

40 dB Forward gain Slope Control 0-20 dB Variable 36 ~ 60V 220 Volts- 50 Hz - Power pass voltage range Gain Control 0-20 dB Variable Mains cum power pass Frequency Response 40 ~ 550 MHz

30 dB 40 dB Forward gain option 20 dB linear slope 36 ~ 60V power pass voltage range Attenuation upto 20 dB Gain Control 0-20 dB Mains cum power pass Frequency Response 40 ~ 450 MHz

40 dB Forward gain 20 dB linear slope 36 ~ 60V power pass voltage range Attenuation upto 20 dB Gain Control 0-20 dB Mains cum power pass Frequency Response 40 ~ 350 MHz

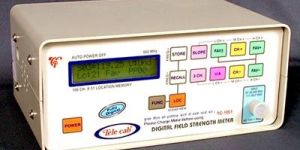

CCIR PAL BG E2 – E69 (106 Channels ) 106 channels. Two lines alphanumeric LCD display with backlight. Latest state of the art flash micro controller from Motorola. Low component count. More reliable and less failure. Accuracy ± 1.4 dB has been achieved with sophisticated instruments of hewlett Packard (hp). Fine tuning for each channel in steps of 50 KHz. Digital PLL Synthesized tuner. Error correction for individual channels with and without Attenuator. No need for correction chart. Single switch audio selection. Audio output on speaker in audio mode. No need for Attenuator selection. Built in Attenuator provides reading from 35 dBµV to 115 dBµV. Digital display of R.F. signal in dBµV Measurements of Battery Voltage Continuous measurements Power Pass Reading (in AC voltage). 5- Fm Radio channels (Each 88 Mhz - 108 Mhz tuneable) Channel number with accurate frequency and mode (audiovideo) & Audio Video difference also displayed

Automatic short circuit cut-off Automatic power restoring circuit - After removing the short circuit Short circuit alarm indicator Continuous Power indicator Output ports for easy distribution Input - 220-250 V Output - 60-80 V Switchable

Feature : Automatic short circuit cut-off Automatic power restoring circuit - After removing the short circuit Continuous Power indicator

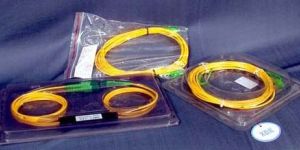

Patch Cords are cable assemblies to join Optic transmitters, Optic nodes Splitters and the trunk line in the optical network. They are suitable for CATV (Cable Television) and Telecommunications.

Feature : Low Insertion Loss High Return Loss High Temperature Stability Zirconia Ferrule in every connector Standard : Telcordia GR 326 Core

Optical transmitter adopt an internal isolated distributed feedback (dfb) laser as optic source, transmitter picture and voice to fiber system by am-vsb, switchover to electric signal by optical receiver, then distribute to general customers. This kind of the equipment is widely used in broadband integrated information networks, transmit tv, digital & voice signal. It is the key transmitting equipment for wide net.

Pin type photo detector 750Mhz or 860 Mhz platform available Two Duplex High Level RF output ports Optical status monitoring Optical Wave Length 1290 ~ 1580 nm Optical Power -5 ~ 4dBm Optical Fibre Connector SCAPC Optical Reflection Loss >45 dB

Telecab offers a comprehensive range of fibre optic couplers to compliment our well-known range of optical laser transmitters, optical receivers, repeaters, erbium doped fibre amplifiers and optical switches. The OC-%% range of fibre optic couplers are designed for direct splicing into single mode fibre optic networks for two way coupling or splitting. The use of optical couplers allows the optical power of headend laser transmitters or optical amplifiers to feed multiple field nodes, hence maximising the use of optical transmission equipment. The units are reciprocal and can also be used to combine multiple return path transmitters onto one fibre to a return path receiver. The OC-%% optical coupler comes in a small tubular package with non-connectorised, bare fibre pigtails of 0.25 mm diameter. This package requires it to be fixed internally to a product or within a sturdy fibre organiser

Joint box is suitable for holding fusion splicing, patch cords, pig tails and splitters. They have routing guide, splice tray and protection sleeves to avoid their exposure to dust & moisture.

Feature : Wall Mountable Splicing Tray ABS Housing Splice tray Protection Sleeves

Low in Band Noise -go on to UHF channels Modularized design with ingenious circuits Available upto 860 MHz 25 Km Range Rack Mountable Excellent AudioVideo quality Able Upto 860MB High Frequency stability Range upto 10 km Upgradable to UHF frequency

We are the main supplier of this product.

Type : Field Strength Meter

Material : Aluminum, Brass, Cast Iron, Copper, Plastic, Stainless Steel

Color : Brown, Green, Grey, Maroon, Red, White, Yellow

Feature : Accuracy, Digital Water Meter Display, Lorawan Compatible, Multi Jet, Spiral Water Meter

Voltage : 110V, 220V, 230V, 380V, 440V, 450V

Application : Industrial, Residential

Operating Temperature : 10-50D/C, 50-100D/C

Automatic Grade : Automatic, Semi

Driven Type : Electric

Certificate : CE Certified, ISO 9001:2008

Display : Local, Remote

Warrenty : 1 Year, 2 Years, 6 Months

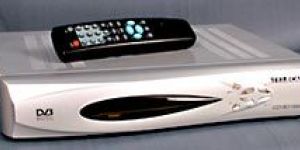

CDVB3188A is a high cost-effective household digital satellite receiver which builds on Fujitsu powerful single chip processor: MB87L2250. This receiver decodes the FTA channels and provides large capacity of programs memory space.

CCIR PAL BG E2 – E69 ( 106 Channels ) 106 channels. Two lines alphanumeric LCD display with backlight. Latest state of the art flash micro controller from Motorola. Low component count. More reliable and less failure. Accuracy ± 2 dB has been achieved with sophisticated instruments of H.P. Fine tuning for each channel in steps of 50 KHz. Digital PLL Synthesized tuner. Error correction for individual channels with and without Attenuator. No need for correction chart. Single switch audio selection. Audio output on speaker in audio mode. No need for Attenuator selection. Built in Attenuator provides reading from 35 dBµV to 115 dBµV

We are manufacturing in this product :-max.out:100db max.gain:35db gain control:0-15db frequency:45-860mhz perfect reception noise figure:=2.5 power supply:ac220v50hz.

Type : Coaxial Cable

Certification : CE Certified, ISI, ISO 9001:2008

Application : Home, Industrial

Color : Black, Green, Red, White, Yellow

Voltage : 110V, 220V, 380V

Feature : Crack Free, Durable, Heat Resistant, High Ductility, High Tensile Strength, Quality Assured

Outer Material : Neoprene Rubber, Rubber, Silicone Rubber

Internal Material : Copper, Steel

Type : CCTV Camera

Brand Name : CP Plus, Honeywell, Samsung, Toshiba

Style : Bullet Camera, Dome Camera

Certification : ISO 9001:2008 Certified

Application : Bank, College, Hospital, Restaurant, School, Station

Color : Black, Grey, White

Condition : New, Used

Driven Type : Electric

Warranty : 1year, 2years, 5years

Range : 10-15m, 15-20m, 20-25m, 25-30m, 30-35m

40-750 MHz frequency response Power pass upto 90 Volts With Slopes of 5 dB 9 dB 12 dB 15 dB Many Power Pass options Frequency Response 40 ~ 860 MHz Internet Ready

Type : Boom Barrier

Application : Highway, Road

Thickness : 20-40mm, 40-60mm, 60-80mm

Certification : CE Certified, ISI Certified

Weight : 10-15kg, 15-20kg, 20-25kg, 5-10kg

Color : Black, Orange, Red, White, Yellow

Pattern : Plain, Printed

Voltage : 110V, 220V, 380

Condition : New, Used

Automatic Grade : Automatic

Driven Type : Electric
