Temperature Detectors Dealers in Delhi

• Application: Used in Pulp & Paper Industries,vessels,Machine & Apparatus construction,furnaces,plastic industry.
• Brand Name: Tempcon Components
• Condition: Good
• Product Name: Resistance Temperature Detectors
• Product Type: PT-50,PT-100,PT 500,PT-1000,NI-100
• Feature: High durability, easy operation, tensile strength, and low maintenance cost
• Place Of Origin: Delhi
• Min. Order Quantity: As Per Client Requirement

We have made our mark as Manufacturer and Supplier of Resistance Temperature Detectors from Delhi, India. We make use of cutting-edge technology for their production in order to infuse significant features such as accurate result, high durability, easy operation, tensile strength, and low maintenance cost.  The Detectors are widely used in Pulp & Paper Industries, vessels, Machine & Apparatus construction, furnaces, plastic industries, Chemical & Petrochemical Industries, Food & Beverage Industries.Types of resistance temperature detectors : PT-50 PT-100 PT 500 PT-1000 NI-100

System Sensor 200 Series intelligent plug-in smoke detectors with integral communication provide features that surpass conventional detectors. Detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with decade address switches, providing exact detector locations for selective maintenance when chamber contamination reaches an unacceptable level. Models 5251B and 5251RB use an innovative thermistor sensing circuit to produce 135°F fixed and rate-of-rise thermal detection in a low profile package. Model 5251H provides fixed high temperature detection at 190ºF. These thermal detectors provide cost effective, intelligent property protection in a variety of applications. Specification Height : 2.0 inches (51mm) Diameter 6.1 Inches installed in B210LP base 4.1 inches (104 mm) installed in B501 base Shipping Weight Heat 4.8 oz. (136 g) Photo/photo with heat 5.2oz. (147 g) ion 5.4 oz. (153 g) Operating Temprature Range Ion Photeo : 32-1200F (0-490C) Photo with Thermal 32-1000F (0-380C) Thermal : -4-1000F (-20-380C) High Temprature : -4-1500F (-20-660C) UL Listed Velocity Range Ion : 0 - 1200 fpm (0 - 6.1 m/sec) Photo with Thermal : 4000 fpm Suitabe For Installation in ducts Insect Screen Hole Size Photo : 0.016 inch (0.41mm) nominal Ion : 0.035 Inch (0.8mm) nominal Relative Humidity : 10-93% noncondensing Thermal Rating Fixed Temprature Setpoint : 1350F (570C) Rate of Rise Detection : 150F/min (8.30C/min.) High Temprature Heat : 1900F (880C) Voltage Range : 15-32 Volts DC Peak Standby Current (Max. Avg.) Ion/Thermal : 150 pA @ 24 VDC (without communication, LED off) 200 pA @ 24 VDC (one communication every 5 sec. with LED enabled) Photo/Photo With Thermal : 250 pA @ 24 VDC (without communication LED off), 300 pa @ 24 VDC (one communication every 5 sec. with LED Enables) LED Current (Max.) : 6.5 mA @ 24 VDC (on)

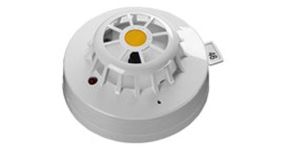

Context Plus XP95 temperature (heat) detectors have a common profile with ionisation and optical smoke detectorsbut have a low air flow resistance case made of self-extinguishing white polycarbonate. They monitor temperature by using a single thermistor network which provides a voltage output proportional to the external air temperature. The response to temperature increases of the standard temperature detec tor (part no: 55000-400IMC) enables the detector to be utilised as an EN54 Grade 2 heat detector. To provide a device for use in ambient temperatures of up to 55°C, a high temperature detector (part no: 55000-401IMC) is also available. This has similar characteristics to the standard temperature detector at 25°C but reaches a 55 count (alarm) at 90°C.

• Brand Name: System Sensor
• Operating Voltage Range: 8 to 30VDC (Nominal 12/24VDC)
• Typical Standby Current @ 25ÞC: 60μA @ 24VDC (LED no blink)
• Maximum Alarm Current (LED On): 80mA @ 24VDC (Limited by panel)
• Application Temperature Range: -30°C to +70°C
• Humidity: 5 to 95% Relative Humidity (non condensing)
• Diameter: 102mm
• Model: 5351E

The 5351E thermal detector forms part of the Series 300 range of conventional detectors. This range of detectors has been produced using the latest in manufacturing and design techniques, pushing out the boundaries of existing conventional detector technology. With its multitude of innovative features, the Series 300 is a detector which ‘acts conventionally, thinks intelligently’. The 5351E thermal detector incorporates an Application Specific Integrated Circuit (ASIC). Combined with the latest in thermal element technology the detector provides efficient and accurate detection of fires, especially in environments such as bars or kitchens where smoke detectors are inappropriate due to the high level of airborne contamination.   Features• Low profile design• Low current draw• Backward compatible with Series 100 detector range of bases• Wide operating voltage 8 to 30VDC• Bi-colour LED detector status indicator• Programmable sensitivity• Addressable feature• Advanced maintenance features via remote hand-held test unit• Range of detector bases available• Tested and approved to EN54 – 5:2000 Class A1R (Amendment 1)• Extended warranty

A Resistance Temperature Detector (RTD) senses heat, based on the principle, that a change in temperature, results in a corresponding change in the resistance of a wire. A small excitation current is passed along the element, the resultant voltage is measured and converted to units of temperature. RTDs have achieved a well deserved reputation in various Industries for their superior stability and accuracy. The result makes these devices well suited for a wide variety of applications.

We are offering to the clients resistance temperature detector (rtd). Our resistance temperature detector (rtd) is widely acknowledged for its stability, reproducibility and linear positive temperature. It is widely used in power, petrochemical, pharmaceutical industries among others.

• Type: Resistance Temperature Detectors
• Certification: Yes
• Application: Detecting, Industrial Use
• Color: Silver
• Voltage: 230V
• Condition: New
• Power Source: Electric
• Brand Name: Dwyer
• Application: Bearing Temperature, Air Ducts Bearing Temperature Oil Temperature Indicator Soldering Equipment Oven

Resistance Temperature Detector Series RTD Resistance Temperature Detector High Temperature, Mineral Insulated, 316 SS Sheath Precision Series RTD Resistance Temperature Detector offers excellent accuracy and stability over a wide temperature range. Industry standard 3-wire 100 ohm (DIN) probes are available in 6" (15 cm), 12" (30.5 cm) or 18" (46 cm) sheath lengths with 30" (76 cm) extension cable and spade lug terminals. For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables. Product Applications Air ducts Bearing temperature Oil temperature indicator Soldering equipment Ovens Environmental test chambers Pharmaceutical manufacturing Food processingPlastic molding Petroleum & chemical processing Electric generating plants ModelDescription RTD-6412Resistance temperature detector, 12" (30.5 cm) length, 1/4" dia. RTD-6418Resistance temperature detector, 18" (46 cm) length, 1/4" dia. RTD-646 Resistance temperature detector, 6" (15 cm) length, 1/4" dia. RTD-6812Resistance temperature detector, 12" (30.5 cm) length, 1/8" dia. RTD-6818Resistance temperature detector, 18" (46 cm) length, 1/8" dia. RTD-686        Resistance temperature detector, 6" (15 cm) length, 1/8" dia. Specifications Sensor Type:Wire wound, 100 Ω. Temperature Range:-328 to 1202°F (-200 to 650°C). Pressure Limits:250 psig (17.2 bar). Probe Material:316 SS. Extension Length:30" (76 cm). Element Standard:DIN .00385 (Class B, 0.12%). Features 304 stainless steel sheath High temperature rating Related Products Series 16A Temperature/Process Controller Series 16A Temperature/Process Controller Series 8C 1/8 DIN Temperature Controller Series 8C 1/8 DIN Temperature Controller Series 16C 1/16 DIN Temperature Controller Series 16C 1/16 DIN Temperature Controller Series 4C 1/4 DIN Temperature Controller Series 4C 1/4 DIN Temperature Controller Brand Name : DWYER USA Warranty : 1year Usage : Bearing Temperature Type : Series RTD Resistance Temperature Detector Application : Air Ducts Color : Grey, Light Grey Condition : New Certification : YES

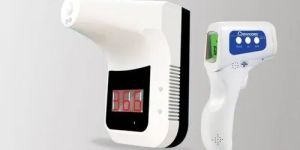

• Material: ABS
• Color: White
• Brand Name: Agmatel
• Features: Quick Measurement, High Accuracy, DC Power
• Display Type: Digital
• Automation Grade: Automatic
• Model Name/Number: ATDO1H
• Working Temperature: 49 Degree C
• Response Time: 0.5 Second

Resistance Temperature Detectors, Gear Pumps, speed protection systems

fixed temperature heat detectors, Punched Tape, Concertina Wire
