Transformers Dealers in Okhla, Delhi

A Current Transformer is the measuring device for metering and protection system. The primary current of the CT is transformed into the required secondary current of 5 A or 1 A. Measuring CT's have different class of accuracy I.e. 0.1, 0.2S, 0.2, 0.5S, 0.5 and 1.0 and protection CT's have 5P10, 5P20 and 10P10. In the case of special protection CT's(PS class), the Knee Point Voltage(KV) of the CT is specified along with secondary resistance and magnetizing current. The construction of the CT not only depends upon the ratio but also on the Short Time Current Rating. Burden and Class of Accuracy.

• Frequency: 50 Hz
• Input Volts: 180-300V AC
• Output Volts: 220/230V AC +/-1%
• Load Regulation: Better than 2%
• Current Lamination: Inherent
• Full Load Efficiency: 87% (approx)
• Transformer Type: Ferro-resonant
• No Load Loss: approx 15-22% of the rated VA capacity
• Frequency Variation: 106% change in output voltage for every 1% change in frequency

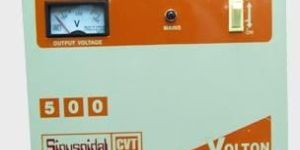

CVT maintains voltage using ferro-resonance principle where large changes in input voltage result in small changes in output voltage. Our transformers are built to filter any distortion Key features Instantaneous regulation Over current protection Stability with temperature Filtration of all spikes and over voltages Isolated supply High reliability as no semiconductors/ moving parts used Constant voltage over a large input range Inherent short circuit protection Maintenance free

• Brand Name: Convergence
• Material: Copper
• Certification: ISO 9001:2008
• Input Voltage: 220v
• Output Voltage: 220
• Power: 150VA tp 7.5 KVA
• Phase: Single Phase
• Warranty: 1 Year
• Cooling Type: Air Cooled
• Country of Origin: India
• Mounting Type: Ground Mounted
• Operating Type: Manual
• Secondary Voltage: 220 V

We have reached the pinnacle of success and earned a name as an eminent manufacturer and supplier of 3 Phase Isolation Transformer. At our sound production unit, we manufacture this transformer using high quality materials and components. This transformer is used in power plant, substation and mining enterprise. We make this 3 Phase Isolation Transformer available for clients in different technical specifications as per their requirements. We manufacture Isolation Transformers, Step up Transformer, Step down Transformer which reduce the effects of power Line problems like noise, spikes, surges, transients and neutral, to a minimum. Isolation transformer is one that contains two windings: Primary and Secondary winding, that are separated from each othe but wound on the same Iron core. The secondary that governs the output is, in this manner, separated from the input. Input and output are totally independent of each other except for the magnetic linkage between the two. RATING : 1 KVA – 500 KVA (Single / Three Phases) Key Features: This transformer are rugged in construction, free standing and floor mounting The transformer is housed in sturdy metal casing with sufficient ventilation Isolates the equipment from noisy power line

• Power: Standard
• Cooling Type: Air Cooled
• Brand Name: Any
• Switch: Dual
• Winding Material: Copper
• Current Range: Varies

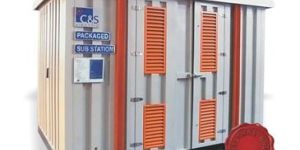

C&S Electric package substations are available upto 24KV. The fully equipped package substation (PSS),comprises of outdoor duty enclosure, medium voltage switchgear,distribution transformer, low voltage panel & AFPCR panel (optional) is a state of art equipment for all your power distribution requirements.The factory assembled self contained package substation is a complete weather proof solution.It only requires to connect incoming and outgoing cables and hence the site work involved is an absolute minimum.   Benefits   Complete weather Proof solution Ready to position solution Four lifting eyes for ease of lifting Minimum site work FEATURES Self contained package substation All the equipment packed in a separate compartment All compartments are individually accessible Individual Door Operated lamp for illumination purpose

Avisor India has developed a reliable range of High Voltage Transformers for applications such as Ozone Generators.   Features of High Voltage Tranformers   Lamination core design for continuous duty, severe use applications. Output voltages upto 15KV @ 20mA. Short circuit proof with current limiting functionality. H.V. voltage winding enclosed in epoxy. Totally encapsulated design also available. CE marked. ROHS compliantt

• Cooling Type: Oil Cooled
• Power: Varies
• Phase: Three Phase
• Rated Capacity: 30-2000 Kv
• Nominal Current: 6Kv-12 KV
• Switch: Multiple

• Application: Electronic
• Phase: Three Phase
• Types: 50KVA

We offering step down transformer, servo stabilizer, isolation transformer, servo voltage stabilizer. we are engaged in providing servo voltage stabilizers that are capable of handling voltage fluctuations. These stabilizers are widely appreciated for their compact design and impeccable quality and are hence approved by several oems to be used in their expensive appliances for severe voltage fluctuations.

Continously Variable Voltage Auto Transformer is the most effective device for stepless, breakless & continous control of AC voltage & therefore for various parameters, dependent on AC voltage. These Variable Voltage Auto Transformers, consists of a single layer winding on a toroidal silicon-steel core. As the control knob is rotated, a carbon brush traverses the winding, tapping off a portion of the total voltage across the winding. The brush is in continous contact with the winding. The discrete voltage increments obtained as the knob is rotated are always less than the voltage between turns. Since the brush spans more than one turn, the change in voltage is practically continuous. As output voltage is continously variable, Variable Voltage Auto Transformers are rated in terms of current that can be drawn from the output.

• Type: Control Transformers

AMREST Electricals Limited manufacture control transformers in a variety of Primary Voltage 120/240/480 Volts & Secondary voltage 240-24 Volts with having frequency of 50-60 Hz upto 5000VA. Control transformers are designed to provide stability of high level secondary voltage during periods of overload conditions ,known as “inrush current”. Resin Cast L.T. Current Transformers
