Unitized Substation Dealers in Delhi

• Application: Power Secondary Distribution
• Type: Indoor/Outdoor
• Frequency: 50 Hz
• Rated Operational Voltage: 30- 33KV
• Power Source: Electric
• Features: Widely Used, Cost Effective

We are a trustworthy Supplier offering a wide assortment of gas insulated substation in the market. We maintain a high level of transparency when it comes to payment. Our methods are simple, as per your convenience, and practical. We ensure to agree upon a method during undertaking.

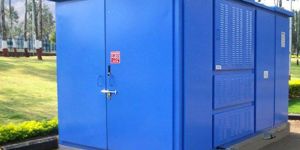

CG offers Distribution Unit Substations, including Mini and Micro type. These substations are manufactured at our facilities in India and Ireland.

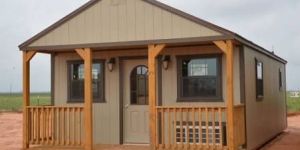

This is a portable substation. Easily assembled and highly compatible with environment. it maintains room temperature. walls are insulated with high density thermocole. it looks like a cottage.

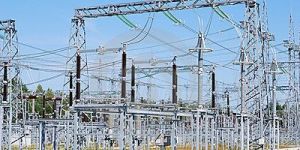

ELECTRIC SUBSTATION is a part of an electrical generation, transmission, and distribution system. Substations transform voltage from high to low, or the reverse, or perform any of several other important functions. Between the generating station and consumer, electric power may flow through several substations at different voltage levels. A substation may include transformers to change voltage levels between high transmission voltages and lower distribution voltages, or at the interconnection of two different transmission voltages.

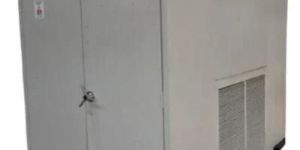

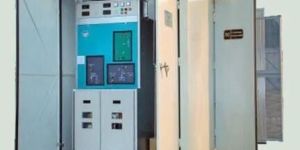

We offer unitized substations.the unitized substation is a compact arrangement, which simplifies conventional substation design. Substation housing is divided into three compartments i.e. The hv compartment, the transformer compartment and the lv compartment.

Backed by rich industry experience and adroit professionals, we are offering high quality Compact Sub Station. Fully enclosed with a transformer and HV & LV connections or switchgear, Compact Sub Station is also shipped & fully assembled. We make Compact Sub Station available at affordable prices. Makes Offered : ABB, Schneider and Universal Specifications Application-Power Secondary distribution Application areas: Residential, commercial and industrial developments Type-Indoor/Outdoor-Oil Type/ Dry type Rated Operational Voltage-11KV/33KVPower Rating-Up to 2 MVA

Features •  Total compartment wise construction and compartment doors are provided seprately for easy     accsess. •  The doors are interlocked with micro switch to prevent live access to live terminals in such a way that the     breaker will trip when the door are opened •  Electricity board metering with tamper proof sealing facility can be provided •  Optionally upto 2 CRTs with MV/LV  controls can be accommodated in Enclosure (One CRT on at a     time).   Operating Mechanism •  Proven Spring operated Mechanism. •  Designed to closed and latch. •  Manual / Motorised Option. •  In built trip free mechnism. •  In built anti pumping feature. •  Mechanical ON/OFF indication.

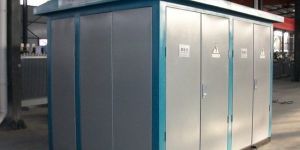

Compact Substation is ideally used for feeding power by acquiring minimum space, preferably as portable type at a construction site or roof top of the building. We offer Compact Substation which is compartmentalized with suitable medium voltage, low voltage sections and transformer section with separate doors for each compartment. They are easy to install and has longer service life. As per customer’s requirement, our Compact Substation can be mounted on skid frame or channels, with lifting hooks or portable trolley. The doors of our Compact Substation are secured with double-point godrej type closing device with flush-mounted handles for padlocking. Customers can avail our Compact Substation in outdoor or indoor type as per their specification.

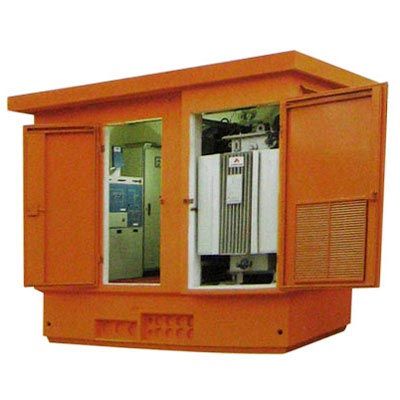

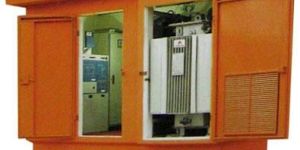

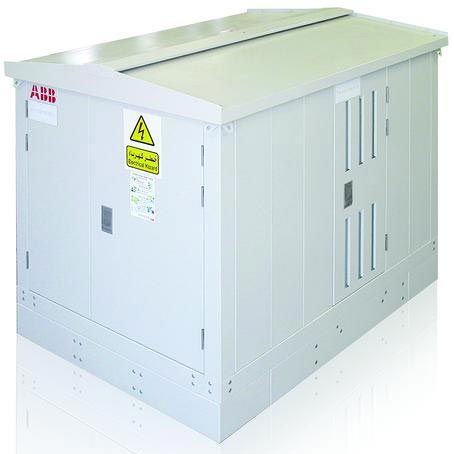

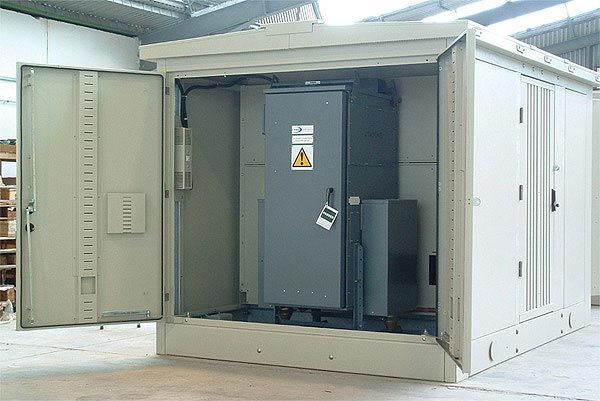

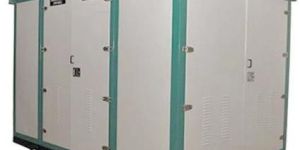

CJ Energetics is one of the renowned Selling Agents in the industry. We help clients sale UniPack Compact Secondary Substations, as we have tie-ups with nationwide buyers of these substations. So, if you have any query regarding selling of UniPack Compact Secondary Substations, you can anytime contact us. Specifications of UniPack Compact Secondary Substations, which we deal in - The UniPack CSS can be supplied with Steel or Concrete. It complies with latest IEC standard 62271-202 Passed internal arc test class A&B for 20kA/1sec Meets low and high temperature climates Fully factory tested and ready for installation The enclosure is divided into two compartments, one for the MV switchgear and LV switchboard and one for the distribution transformer. The weight of the CSS without electrical equipment is 2975 kg. Max Equipment Transformer400 kVA hermetically sealed oil transformerMV Equipment3 panel SafeRing 12 / 24 kV or NAL Cubicle 12 kVMV transformer cables are as standard 25 mm2 Cu. If the Tee-off is with a vacuum circuit breaker 95 mm2 Al cables will be installed.LV Equipment - LVS2-8M8 x 400 A InLine fuse switches5 x 400 A Kabeldon fuse switchesThe LV cables for a 400 kVA transformer are 1 x 240 mm2 per phase.

• Voltage: 420V
• Frequency: 50 Hz
• Power Rating: 800 kVA
• Number of Phase: 3-Phase
• Cooling Type: Oil Cooled
• Winding Material: Mild Steel
• Operating Temperature: 120 Degree Celsius
• Dimension: 3X2X2 feet
• Usage/Application: Electric Fitting

• Frequency: 50 Hz
• Power Rating: 400kVA
• Number of Phase: 3-Phase
• Voltage Ratio: 11kV/433V
• Winding Material: Copper
• Transformer Type: Distribution Transformer

The PAIKANE make Compact Substation is a plant ready unit integrating a Medium Voltage Panel, a Transformer and a Low Voltage Panel. The entire unit is compartmentalized with sheet metal, so that any fault in one section does not affect the other sections.
