Variable Auto Transformer / Variac / Dimmerstat Dealers in Delhi

• Voltage: 0-470
• Phase: Three Phase
• Frequency: 50
• Cooling Type: OIL COOLED
• Current: 600 Amp
• Power: 450 KVA
• Input Voltage: 415
• Brand Name: POWERSELECT
• Output Voltage: 0-470
• Body Color: Simens Gray
• Working Temperature: 35-45
• Usage/Application: testing
• Minimum Order Quantity: 1 Unit

• Output Voltage: Variable
• Operating Temprature: 0 Deg. To 50 Deg.C

Three such ‘RE’ VARITX connected electrically in star and mechanically interlocked to move together are used for operation on 415 Volts, 3 phase AC supply to give output from voltage from 0 to 470 Volt at 5060Hz. ‘RE’ Manufactured VARITX is having good Regulation with Negligible waveform distortion. Varitx are robust, energy efficient, noiseless and easy to operate with excellent short time over load capabilities. ‘RE’ manufacturers specialized Oil cooled or air cooled motorizedmanually operated VARITX upto 800 Amps with supply voltage of 240 Volts to give output voltages from 0 to 350 Volts, 3 Phase VARITX up to 800Amps with input supply voltage of 415 Volt 3 Phase to give output Voltages from 0 to 600V. Compact in Size. Rugged Construction. High Efficiency Neozero waveform distortion.

The basic Spectron Continuously Variable Voltage Auto Transformer is meant for operation of a nominal voltage of 240V AC and can give output voltage anywhere between 0 tp 240V, or upto V by a simple transformer action. Three such Spectron Continuously Variable Voltage Auto Transformer when connected electrically in star, and mechanically in tandem, become suitable for operation off 415V 3 Phase AC supply and to give output from 0 to 415 V or up to 470V.

 We are instrumental in offering the finest quality of Variable Auto Transformers at nominal rates on the market. Being the leading manufacturers and suppliers of Variable Auto Transformers, we process the Variable Auto Transformers using cutting-edge technology and latest machinery. The Variable Auto Transformers are quality-tested, and can be purchased in various specifications. The major selling point of the Variable Auto Transformers is that they have a sturdy construction, and made up of Crgo Core, Copper, and Alloy. Not only are these Variable Auto Transformers easy to install, and durable, they promise noise-free operation and low maintenance cost. The Variable Auto Transformers can be availed at Rs. 40,000/piece, and we are based in Delhi, India.   Build : Sturdy, durable Installation Process : easy, hassle-free, convenient Material : Crgo Core, Copper, Aloy Durability : Highly durable, damage-resistant   Features : Easy to install Low maintenance needs Durable Noise-free operation

We are Offering Single Phase Dimmerstat.

• Finishing: Color Coated
• Color: White
• Condition: New
• Power Source: Electric
• Application: Industrial, Testing Purpose
• Feature: Easy To Maintain And Service, High-performance, Preferred For Safety Reasons Over Oil Cooled
• Voltage: 220 V, 240 V
• Type: Variable Autotransformer
• Phase: Single Phase, Three Phase
• Warranty: 1 Yr
• Country of Origin: India

• Phase: Three Phase
• Frequency: 50 Hz
• Current: 28 A
• Voltage: 100-270 V
• Cooling Type: Oil Cooled
• Automation Grade: Automatic
• Operating Temperature Range: 0 to 45 C

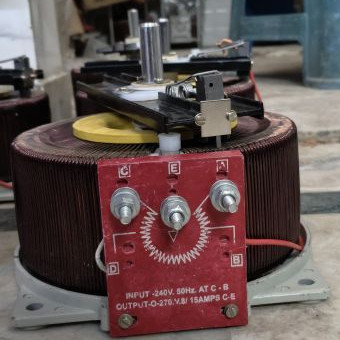

We are a well-established Single Phase Variable Auto Transformer Manufacturer and Supplier in Delhi, India. The Single phase Variable Auto Transformer, offered by us, is available in projection Mounting and Flush Mounting types. We utilize quality-tested materials to fabricate Single Phase Variable Auto Transformer. Our Single Phase Variable Auto Transformer series conforms to the requisite standards of quality. Buyers can get the Single Phase Variable Auto Transformers customized from us, as per their specific requirements. Highlights Single Phase Variable Auto Transformer takes the input from 240 V - 50 Hz AC line and the normal output can be varied from 0 - 270 Volt.Output of these Variable Auto Transformer at can be varied from 0 to 270 V input being 240 V - 50 Hz AC.Ganged Assemblies of 3 coils, connected in star are available for 3 phase supply. Contact arm of these coils are connected to common shaft.

We are endowed with a state-of-the-art infrastructural facility which back us in manufacturing and supplying 3 Phase Variable Auto Transformer. We manufacture this transformer using high quality materials and components, sourced from authentic vendors. It is an energy saving electrical transformer which can convert the voltage as required. Available in different sizes and technical specifications, our 3 Phase Variable Auto Transformer is highly demanded in the market. We offer this transformer at cost effective prices to clients. Key Features: This transformer has strong mechanical strength and short-circuit withstand ability Has a single layer winding on a toroidal core of high grade steel Ideal for over and under voltage testing of electrical and electronic equipment Description: Continously Variable Voltage Auto Transformer is the most effective device for stepless, breakless & continous control of AC voltage & therefore for various parameters, dependent on AC voltage. These Variable Voltage Auto Transformers, consists of a single layer winding on a toroidal silicon-steel core. As the control knob is rotated, a carbon brush traverses the winding, tapping off a portion of the total voltage across the winding. The brush is in continous contact with the winding. The discrete voltage increments obtained as the knob is rotated are always less than the voltage between turns. Since the brush spans more than one turn, the change in voltage is practically continuous. As output voltage is continously variable, Variable Voltage Auto Transformers are rated in terms of current that can be drawn from the output. The basic Continously Variable Voltage Auto Transformers is meant for operation from a nominal input voltage of 240 V I ph AC & can give output voltage anywhere between 0 to 240 v or 0 to 270V AC by simple transformer action. Three such Variable Voltage Auto Transformers connected electrically in star and mechanically in tandem, become suitable for operation from a nominal input voltage of 415V 3Ph AC and can give output anywhere between 0 to 415V or 0 to 470V. Rating Available: 4 Amps- 1600 Amps

The viscometer consists of a chrome plated copper plated copper bath, with a drain valve and a central tube to receive the test cup and to position the stirrer, and is mounted on a stand with leveling feet. Stirrer has a curved shield and is provided with an insulated handle, thermometer socket and swivel support for the valve. Supplied complete with 10 mm cup and ball valve or 4 mm cup and ball valve as per the model required. The following models are available. Standard Tar Viscometer, Electrical Heating with Immersion Heating Elements and Dimmerstat for controlling the temperature. Suitable for operation on 220 V, 50 Hz, single phase, AC supply. Complete with 10mm & 4 mm Cup and Valve.

Engaged as a manufacturer & supplier we are providing our customers with Variable Auto Transformer. Manufactured using single layer winding on a core that is made up of high-grade cold rolled grain oriented steel, these products are developed with perfection. Rugged in construction, these products are provided to our customers in different specifications to suit their demands.

Continously Variable Voltage Auto Transformer is the most effective device for stepless, breakless & continous control of AC voltage & therefore for various parameters, dependent on AC voltage. These Variable Voltage Auto Transformers, consists of a single layer winding on a toroidal silicon-steel core. As the control knob is rotated, a carbon brush traverses the winding, tapping off a portion of the total voltage across the winding. The brush is in continous contact with the winding. The discrete voltage increments obtained as the knob is rotated are always less than the voltage between turns. Since the brush spans more than one turn, the change in voltage is practically continuous. As output voltage is continously variable, Variable Voltage Auto Transformers are rated in terms of current that can be drawn from the output.

Motorized Variac in several industrial establishments. These motorized variacs have been created after years of development thus ensuring the customers that they will receive quality performance for a durable period. For further information, you can also contact us.

• Brand Name: HCS
• Coil Number: Autotransformer
• Packaging Details: Packed with corrugated box and then wooden crate if required by client.
• Supply Ability: 5000 Piece/Pieces per Week
• Coil Structure: Toroidal
• Place of Origin: Delhi, India
• High quality variac or dimmer: Copper wound

Power Line Systems Pvt. Ltd. offers two types of Variac, Open Variac and Covered Variac. These are used in Industries. Available in RangeCapacity: 2AMP to 600AMP.

• Features: Optimum performance, Compact design, Longer working life
• Capacity: 2 Amps To 300 Amps

Listed amidst the renowned Suppliers of Variable Autotransformer, we successfully deliver the finest range of products the clients. The wide assortments of products we offer are strictly as per the globally accepted norms.

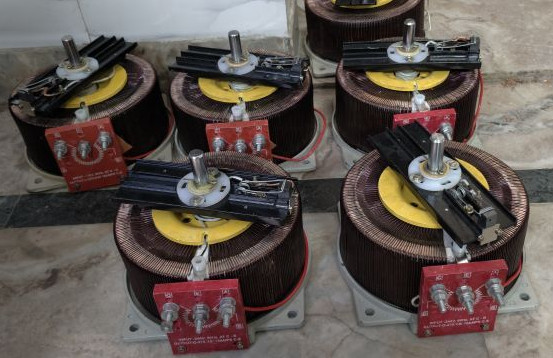

VARIAC is a continuous Variable AutoTransformer, having a single layer winding on a Toroidal Core( Donut-Shaped )  CRGO Stamping (  high-grade Cold Rolled Grain Oriented  steel). On one side of the copper winding, a special durable contact surface is made.  A contact holder arm  with specially selected high grade carbon brushes  slides smoothly on this surface over the winding and taps of a portion of voltage across the winding. Any desired voltage within the Maximum range can be obtained by adjusting the position of the Brush.   High grade CRGO stamping is used for making Variac Coils. Purity of copper is 99.99% used for winding the Variac coils. Very smooth & step less voltage control. Easy Installation & Connections. Temperature remains low. Virtually maintenance free High grade carbon brushes are used Wide range of current rating 4 Amp. To 1250 Amp. High Efficiency Power factor distortion & wave form is negligible. Simple rugged designing. Overloading capacity for a short time. Long functional Life assured. Spare carbon brushes provided for select ratings. Impeccable quality.   Servo Voltage Stabilizers Rectifiers Testing Instruments. Labs & Hotels Battery Chargers

We are offering our valued clients Auto Variable Transformer. We proudly introduce ourselves as Manufacturer, Supplier, and Exporter of Auto Variable Transformer. Auto Variable Transformer works on advanced principle to ensure protection of electrical equipment from high voltage. Our valued clients can avail Auto Variable Transformer in different specifications, at economical price.
