Varun Electrodes Pvt. Ltd. Paschim Vihar, Delhi

Our welding holder (light duty) 1H fully insulated body structure made of forged Copper. Most suitable for use with electrodes of size 1.6mm to 3.20mm. ...Our powerful brand new welding holder can be used to hold / clamp up to 50lb. Ideal for metal workers. Arrow shaped to assist holding metals at various angles.

Our Welding holder (heavy duty) is a device which is very handy when joining pieces of metal together at common angles. Welding holder heavy duty is suitable for use of electrodes of sizes 3.2mm to 6.3mm and OCV 100V (ms). Clamping Devices consists of heavy duty springs covered with fully insulating material. Pure copper is used for connections strips. Total weight 700 gms.

Made of steel body with insulated handle and lever. Wear resistant Copper Alloy forms part of jaws. Connecting strips are made if pure copper suitable for Welding Current Rating up to 400 Amps. for use of electrodes from 2.5mm to 5.00mm. Clamping devices consists springs covered with fully insulated material. Total weight 600 gms.

In this type, about 35% in weight of the coating is titanium dioxide (TiO2) facilitates arc ignition, makes it possible to work with a soft arc and reduces spatter. This electrode type is used for general purposes where good welding properties are required. This is the universal electrode which may perform welding in every position

We are Offering Tig Wire & Mig Wire Er-410. the Company Provide Product for Surfacing and Overlaying Applications On 13 Cr Steel Components Subjected to Corrosion and Abrasionscaling. Ideal for Valves, Turbine Parts, Pumps Bodies Etc.

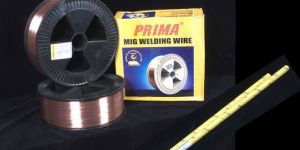

we are offering Tig wire, Mig wire ER-316.For welding of molybdenum bearing austenitic stainless steels. The weld metal is similar to 316L but contains slightly higher carbon level.for more details please contact us.

We are Offering Tig Wire, Mig Wire ER-310. for Welding of Austenitic Steels of 25 Cr/20 Ni Type I.e. Aisi 310. Deposit is Heat Restistant in Oxidising Sulphur Free Atmosphere Up to 1200ºc. the Molten Pool is Clear and Deposit is Free from Porosity.for More Details Please Contact Us.

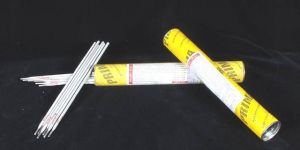

We are Offering Tig Wire Er-312.an Ideal Alloy Suitable for Joining Almost all Grades of Steels I.e. Tool Spring, Manganesehigh Speedcastunidentifid and Difficult to Weld. Most Suitable for Repairs of Dies and Moulds.

Description : A general purpose, all position, rutile type electrode suitable for general fabrication structural and maintenance in mild steel which is not subjected to heavy load. The electrode is characterised at stable and smooth arc. Electrode operates well on AC & DC(-).Applications : Suitable for structural & general fabrication work.

Description : All position general-purpose Light coated electrode with medium penetration and dense slag which completely covers the bead. Weld metal is generally lower in ductility and high in yield strength. It can with-stand high amperage.Applications : Suitable for structural & general fabrication work.

Description : A Graphite based hard facing electrode with pleasing operating characteristics on AC& DC. Weld metal has excellent resistance to severe abrasion with moderate impact. Recommendations: To get optimum results re-dry electrodes at 350ºC for one hour. Use short arc and lower currants of the recommended range.Weld Metal Hardness : 500-600 BHNApplications : Excavator Teeth, Oil Expeller Worams, Cement Dies Rings, Plough Shares, Muller Tyres, Cames, Cranes Wheels, Crushing Hammers, Shear Blades etc.

Description : A medium heavy basic coated low hydrogen type hard facing electrode producing 14% Mn. weld metal. Suitable for hard facing on austenitic manganese steel parts. Excellent resistant to wear and impact deposit work hardening in service. Weld Metal Hardness : 200 -250 BHN Work Hardens Up to (under impact) : 500 BHNApplications : Manganese Steel Casting Of All Types,Pressure Jaws, Hammers, Mineral Grinders, Mantles, Bucket Teeth, Rail Crossing etc.

Description : A medium heavy basic coated, LOW HYDROGEN air hardening type electrode. The weld deposit is extremely hard, sound and non-machinable. Weld deposit with excellent resistance to serve abrasion and heavy impact. Recommendations: To get optimum results electrode should be preheated at 150ºC for two hours.Weld Metal Hardness :- 525 -650 BHN. After two layerDeposition.Applications : Crushing hammers, Shear blades, Draggling bucket lips, Crusher jaws, Paper cutting knives, Cropper etc.

Description : A medium heavy coated rutile type air hardening electrode for hardfacing application on mild steel, carbon steel, low alloy steel where hardness approx. 600BHN is required. Weld metal is totally non machinable and can only be grind. The electrode is suitable for abrasion & impact or a combination of both. Before depositing on carbon steels a buffer layer of Low hydrogen electrode (PRIMA-7016) is recommended. Weld Metal Hardness: 550 - 600 BHN After three layer Deposition.Applications : Plough shares, Cutting knifes, Excavator teeth, Dredger bucket lips, Conveyor bucket etc.

Description : A medium coated rutile type electrode developed for hard surfacing of steels subject to wear due to impact and abrasion. Very Stable arc and smooth transfer of alloying elements to weld deposit ensures completely crack free and weld metal is machinable. The weld metal is air-hardening type. Recommendations: Use stringer beads technique and avoid high currants. Short arc ensures proper alloy transfer to weld deposit. In case of reconditioning of heavily worm out part give a buffer layer with our PRIMA-7018 Electrode. Weld Metal Hardness : 350-400 BHN. After three layerDeposition.Applications : Pulveriser Rolls,Forging Dies,Break Shoes,Gear Shaft,Sprockets,Conveyor Shaft etc.

Description : A medium coated rutile type electrode manufactured for hard surfacing of carbon steels, low alloy etc. very stable arc, easily removable slag and smooth weld bead makes the electrode acceptable in any welding shop. Performance is excellent on AC as well DC. Adequate penetration and convex bead ensures Ideal weld deposit for surfacing applications to resist high degree of impact and medium abrasion. Recommendations: Use short arc and lower currents. Within the range. Avoid weaving of electrodes to obtain. Best results. Electrodes should be re-dried at 1000C for 30 minutes. Weld Metal Hardness : 250 -300 BHN. After two layers deposition.Applications : Rolling Stock, TypesCrank Shafts,Gear Key-ways,Rim Gear,Pulleys,Rails,Oil Expeller Warms,Sugarcane Rollers,Wheel Rim ,Cog Wheels etc.

Description : A basic coated Cr.Ni.Cu. all position type welding electrode. For weathering steel. Ideally suited for welding of corten to corten steels, also used in petrochemical and in railway industries to resist atmospheric corrosion and high temperature.Applications : For welding of weathering steel etc.

PRIMA-7018AWS/A5.1 : E 7018IS: 814-1991 : EB-5426 H2JX A basic coated iron powder type low hydrogen electrode. Weld deposit is tough, ductile & is of radiographic quality. Deposition efficiency exceeds 115%. ApplicationsInclude heavy structures subjected to dynamic loading and impact, high restrained joints, boilers & pressure vessels, atomic reactor shells, bridges, rail wagons & coaches, earth moving equipment etc.Grade 3, suitable for welding steel Grade(s) E, EH27S (and any corresponding strength grade(s) of lower toughness using manual metal arc welding with covered electrodes.Grade 3 Y, suitable for welding steel Grade(s) EH36, EH32, EH27S, E (and any corresponding strength grade(s) of lower toughness), using manual metal arc welding with covered electrodes.Approved byChief Inspector of Boilders (IBR) Lloyds Register of Shipping. (Lloyd’s)

PRIMA-7018-1AWS/A5.1 : E 7018-1IS: 814-1991 : EB- 5626 H3JX A basic coated iron powder type Low hydrogen electrode. Weld deposit is tough, ductile & is of radiographic quality. Suitable to deposit weld metal for low temperature impact strength requirement. The weld metal is resistant to hot cracking, excellent impact toughness at even -50ºC, ApplicationsSuitable for welding of boilers, pipe line, power plants, pressure vessels, penstocks, heavy parts of earth moving machineries, low alloy steels and heavy thick plates etc.Approved byChief Inspector of Boilders (IBR)

PRIMA-7016AWS/A5.1 : E 7016IS: 814-1991 : EB-5324 H2 A basic coated low hydrogen suitable for welding mild steels, medium high tensile structural steel, low alloy steel, non machinable deposit on cast iron and depositing buffer layer before hard surfacing steel. Deposits high quality welds and good ductility at sub zero temperature. ApplicationsSuitable for heavy machinery like cranes, rollers, tractors, earth moving equipment, ships, rail coaches and cast iron components etc.Approved byChief Inspector of Boilders (IBR)

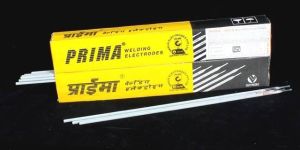

Description : A medium heavy coated rutile iron powder type mild steel electrode specially designed for faster welding in down hand and fillet welds, giving excellent weld bead finish. Typical applications include ships, barrages and machine parts etc.Applications : Suitable for Boilers, Pressure vessels, Ships, Wagons, Girders etc.

PRIMA-6013 SSAWS/A5.1 : E 6013IS: 814-1991 : ERR 4221X A heavy coated rutile type electrode with very quite and stable arc, negligible spatter, self peeling slag, exceptionally clean, shiny and smooth bead, suitable for welding pressure vessels, boilers, LPG Cylinders, locomotive fire boxes, bridges where radiographic quality weld is required. ApplicationsSuitable for Boilers, Pressure vessels, Ships etcApproved by Bureau of Indian Standards (BIS)Chief Inspector of Boilders (IBR)

PRIMA-6013 SAWS/A5.1 : E 6013IS: 814-1991 : ER 4221X, ER 4222X A medium heavy coated rutile type mild steel electrode with very pleasing operating characteristics. Electrode operates in all positions on DC & AC with equal ease and produces a soft and ductile weld deposit of excellent finish. The welds are of radiographic quality and good physical properties. ApplicationsIt covers a wide range of applications in mild steel.Grade 2, suitable for welding steel Grade(s), D, B, DH27S (and any corresponding strength grade(s) of lower toughness), using manual metal arc welding with covered electrodes.Approved by Bureau of Indian Standards (BIS)Chief Inspector of Boilders (IBR) Research Designs & Standards Organization.(RDSO)Lloyds Register of Shipping. (Lloyd’s)
